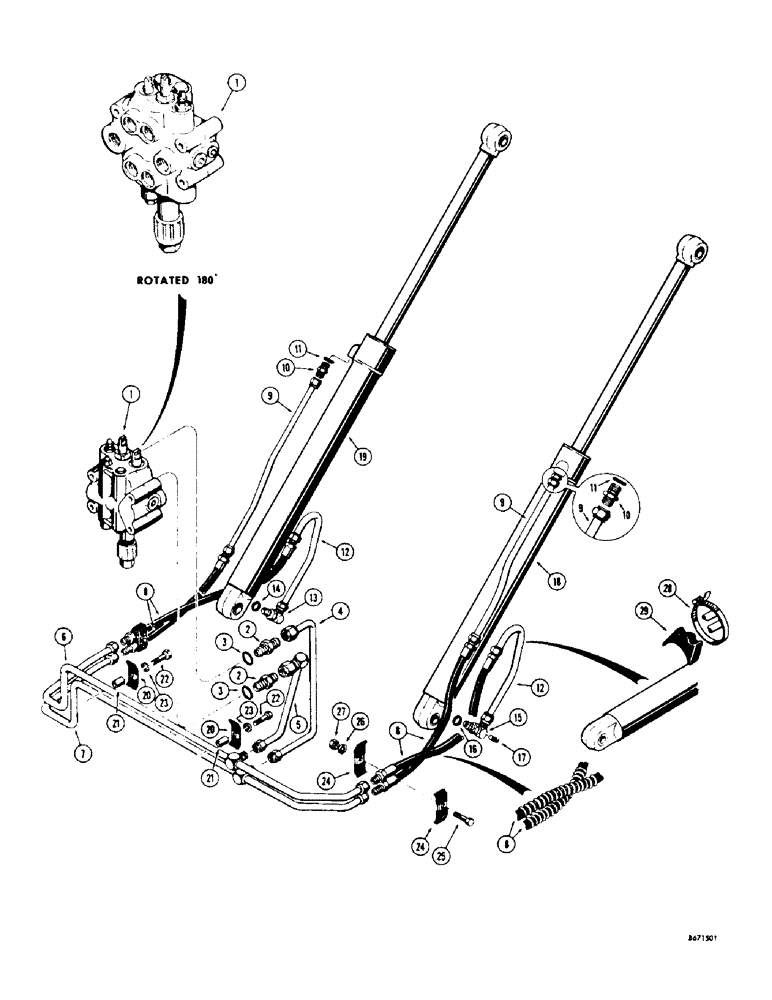

Запчасти Case 310G (150) - LOADER HYDRAULICS (LIFT CIRCUIT) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker series VDP 22) See figures 206 and 208

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - male, straight

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

X38155

SPRING

TUBE - upper control valve port to lower tee

1шт.

5

D38135

SPARE PART Lower control valve port to upper tee

1шт.

6

D38142

TUBE

Crossover, upper

1шт.

7

D36848

TUBE

Crossover, lower

1шт.

8

D33354

HOSE

Control valve to lift cylinder (18" long)

4шт.

9

D33326

SPARE PART Control valve to lift cylinder rod end

2шт.

10

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - male, straight

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

D33320

TUBE

Control valve to lift cylinder closed end

2шт.

13

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

15

R19576

FITTING

ELBOW - special, 90 degrees

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

221-11

PLUG,Sq Hd, 1/8"-27

Pipe

1шт.

18

REF

INSTRUCTION

CYLINDER - lift, RH (See figure 210 for cylinders)

1шт.

19

REF

INSTRUCTION

CYLINDER - lift, LH (See figure 210 for cylinders)

1шт.

20

D33316

CLAMP

PLATE , tube

2шт.

21

D33552

BUSHING

SPACER - clamp

2шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

D33316

CLAMP

PLATE, tube

4шт.

25

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

26

195-21

WASHER,5/16"

Flat

2шт.

27

131-4

LOCK NUT,5/16"-18, GB

2шт.

28

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Tube, adjustable

2шт.

29

D39502

SADDLE

Rubber

2шт.
