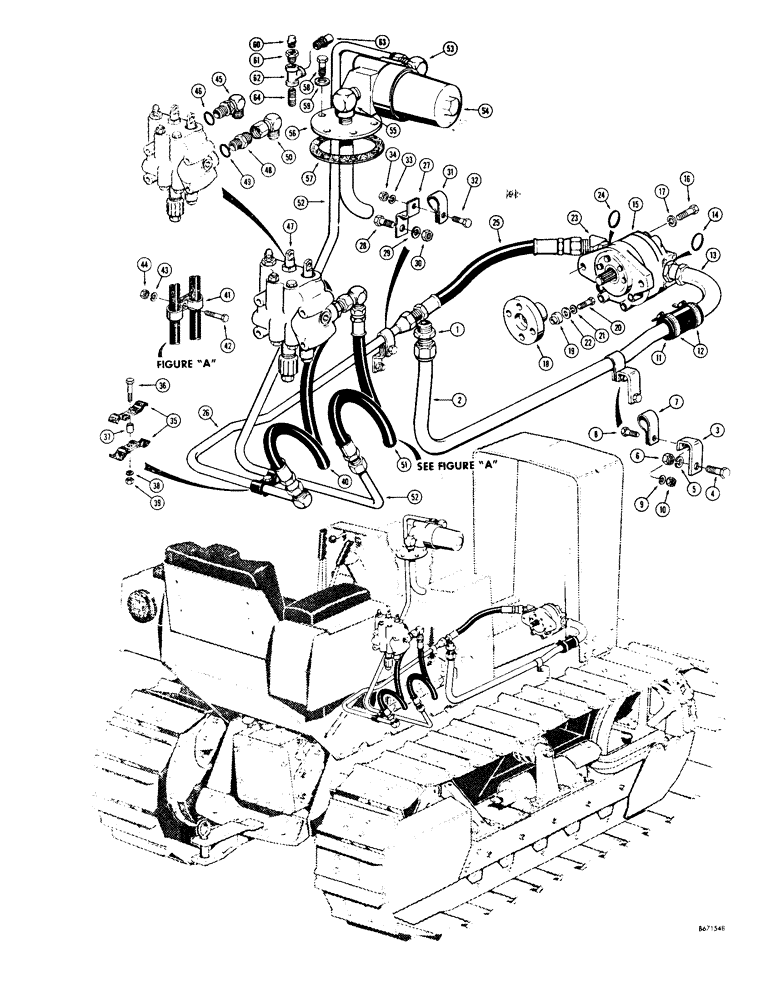

Запчасти Case 310G (140) - BASIC TRACTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

Straight, male

1шт.

2

D40273

SPARE PART Reservoir to pump (Rear section)

1шт.

3

37753

BUSHING

BRACKET - tube clamp

1шт.

4

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

5

92-10

LOCK WASHER,5/8"

1шт.

6

25-1010

NUT,5/8"-11, G5

1шт.

7

D25156

CLAMP

Tube

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

Reservoir to pump

1шт.

12

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

13

D40275

SPARE PART

1шт.

14

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL

1шт.

15

D41390

PUMP

Hydraulic, 19-1/2 G.P.M at 1850 R.P.M. (Parts list figure 232)

1шт.

15

DR41390

REMAN-HYD PUMP

Remanufactured, Pump, Hydraulic

1шт.

15

DC41390

CORE-HYDRAULIC PUMP

Return Part Number, Pump, Hydraulic

1шт.

15

87644746R

REMAN-HYD PUMP

310G, (S/N 3032301 TO 3039619), Reman For New P/N D41390 & 87644746

1шт.

15

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

D140524

FLEXIBLE COUPLING,13T

HUB - pump drive coupling

1шт.

19

G36905

BLOCK

AND BUSHING

4шт.

20

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

21

92-7

LOCK WASHER,7/16"

4шт.

22

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

Special

4шт.

23

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

25

D36900

SPARE PART Pump to control valve (Front) 18-1/2" long

1шт.

26

D33284

SPARE PART Pump to control valve

1шт.

27

D27673

BRACKET - tube clamp

1шт.

28

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

29

92-10

LOCK WASHER,5/8"

1шт.

30

25-1010

NUT,5/8"-11, G5

1шт.

31

D25157

CLAMP - tube

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

33

92-5

LOCK WASHER,5/16"

1шт.

34

9635082

NUT,5/16" - 18, Gr 5

1шт.

35

R15257

CLAMP

Tube

2шт.

36

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

37

D35217

BUSHING

SPACER - tube clamp

1шт.

38

92-5

LOCK WASHER,5/16"

1шт.

39

9635082

NUT,5/16" - 18, Gr 5

1шт.

40

D33289

HOSE ASSY.

Pump to control valve (Rear) 36" long

1шт.

41

D40471

CLAMP

Hose

2шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

43

92-6

LOCK WASHER,3/8"

1шт.

44

25-106

NUT,3/8"-16, G5

1шт.

45

D25135

X

ELBOW - 90 degrees, adjustable

1шт.

46

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

47

REF

INSTRUCTION

VALVE - hydraulic control (See figures 206 and 208)

1шт.

48

D38890

CONNECTOR - straight, male

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

50

D25183

ELBOW

90 degrees, adjustable

1шт.

51

D33888

SPARE PART Control valve to reservoir (39 degrees long)

1шт.

52

D36903

SPARE PART Control, Serial Range: valve-reservoir

1шт.

53

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

1шт.

54

D32254

FILTER ASSY

Hydraulic oil (Marvel no. 33425) Parts list figure 234 (When stock is exhausted, use D43567 filter for service)

1шт.

54

D43567

FILTER ASSY

Hydraulic oil (Marvel no. M2735A) Parts list figure 234

1шт.

55

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

1шт.

56

D36898

PIPE CLAMP

RETURN TUBE AND COVER ASSEMBLY - hydraulic oil

1шт.

57

36321

GASKET

Return tube and cover

1шт.

58

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

6шт.

59

D32117

COPPER WASHER

Special

6шт.

60

R15536

VALVE

Relief, 10 to 20 P.S.I.

1шт.

61

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING

1шт.

62

221-431

TEE

Pipe

1шт.

62

R15538

VALVE

Breather, 2 to 5 P.S.I.

1шт.

64

221-1130

PIPE,Nipple, 1/4" NPT x 7/8"

1шт.
