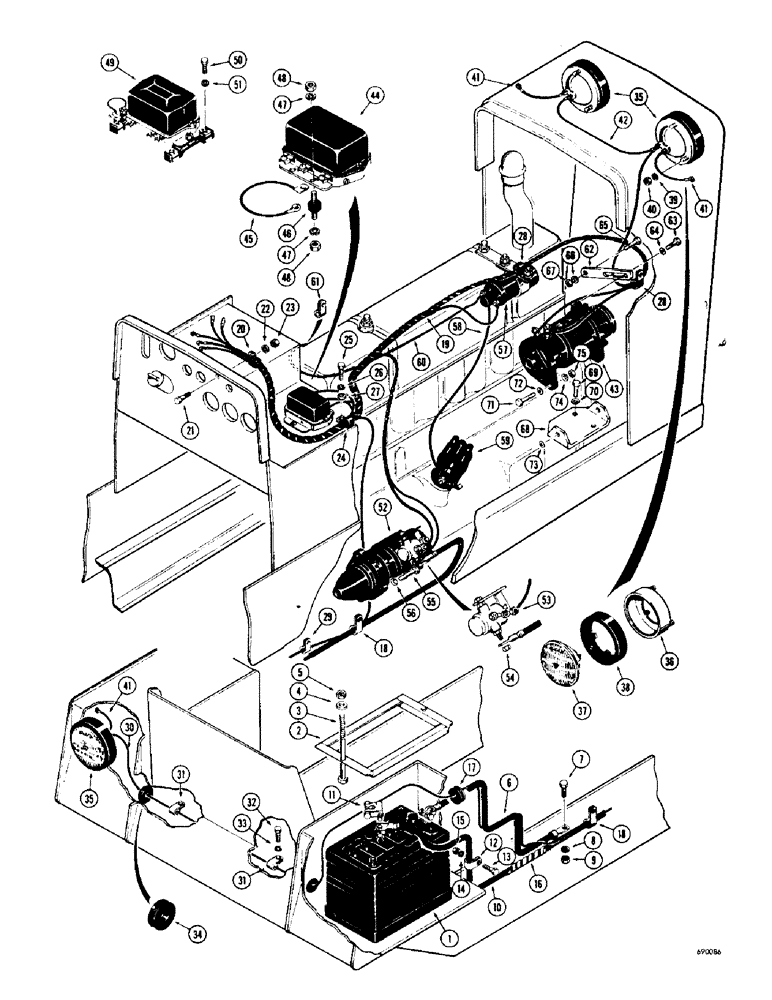

Запчасти Case 310G (086) - ELECTRICAL SYSTEM - GAS (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D44176
BATTERY
BATTERY - 12 volt
1шт.
2
D22841
SPARE PART BRACKET - battery hold down
1шт.
3
15-5148
BOLT
HHCS - 5/16" - 18 NC x 9-1/4"
2шт.
4
195-21
WASHER,5/16"
WASHER - flat () 5/16"
2шт.
5
131-351
LOCK NUT,5/16"-18, GA
NUT - lock, hex. (5/16" - 18 NC)
2шт.
6
D38127
SPARE PART CABLE - battery, ground (Negative)
1шт.
7
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
BOLT, Hex, 3/8"-16 x 2", G5
1шт.
8
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
1шт.
9
25-106
NUT,3/8"-16, G5
NUT - hex. (3/8" - 16 NC)
1шт.
10
D32192
CABLE
CABLE - battery, hot (Positive)
1шт.
11
D38456
TERMINAL CONNECTOR
TERMINAL - cable, battery positive
1шт.
12
49838
CLAMP
CLAMP - cable, battery positive (Rear)
1шт.
13
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1", G5, Full Thd
1шт.
14
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
1шт.
15
25-106
NUT,3/8"-16, G5
NUT - hex. (3/8" - 16 NC)
1шт.
16
R12586
TAPE
WRAP - cable, battery positive
1шт.
17
49564
GROMMET,1 1/2" ID x 1 3/4" Groove Dia
GROMMET - rubber, battery cables and taillight wire
1шт.
18
49836
CLAMP
CLAMP - cable, battery positive (At frame)
2шт.
19
D24941
SPARE PART HARNESS - main wiring
1шт.
20
49838
CLAMP
CLAMP - main wiring harness at instrument panel
1шт.
21
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd
1шт.
22
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
23
25-104
NUT,1/4"-20, G5
NUT, 1/4"-20, G5
1шт.
24
49838
CLAMP
CLAMP - main wiring harness at voltage regulator
1шт.
25
13-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd
1шт.
26
92-5
LOCK WASHER,5/16"
LOCK WASHER, 5/16"
1шт.
27
195-21
WASHER,5/16"
WASHER - flat () 5/16"
1шт.
28
49838
CLAMP
CLAMP - main wiring harness (Front)
2шт.
29
A26649
SPARE PART CLAMP - main wiring harness (At main frame)
1шт.
30
D33670
SPARE PART WIRE - taillight (15" long)
1шт.
31
80049853
YOKE
CLAMP - taillight wire (Rear)
2шт.
32
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd
2шт.
33
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
2шт.
34
49562
GROMMET,11/16" ID x 1" Groove Dia
GROMMET - rubber, taillight wire
2шт.
35
D30243
LAMP
LIGHT ASSEMBLY - complete
3шт.
36
NSS
NOT SOLD SEPARAT
FRAME - lamp retaining
1шт.
37
D33182
LAMP
LAMP - sealed unit
1шт.
38
D31441
RETAINER
RETAINER - rubber (Use only in guide lamp assembly) See A25213
1шт.
A25213
RETAINER
RETAINER - rubber (Use only in Hobbs assembly) See D31441
1шт.
39
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
9шт.
40
129-17
NUT,Hex, #10 - 24
NUT - hex. (No. 10 - 24 NC) Zinc plated
9шт.
41
A11768
ELECTRICAL WIRE
WIRE WIRE - ground
3шт.
42
D22271
ELECTRICAL WIRE
WIRE WIRE - headlight
1шт.
43
A36279
X
GENERATOR - complete, does not include pullley or fan (See page 74)
1шт.
D34009
GENERATOR
GENERATOR - complete, enclosed (Parts list figure 76)
1шт.
44
A36194
REGULATOR
REGULATOR - voltage (Use with A36279 generator only)
1шт.
D35018
SPARE PART KIT - mounting, regulator (A36194 regulator only)
1шт.
45
NSS
NOT SOLD SEPARAT
LEAD ASSEMBLY
1шт.
46
NSS
NOT SOLD SEPARAT
STUD - mounting
3шт.
47
NSS
NOT SOLD SEPARAT
WASHER - med. sect. lock
6шт.
48
NSS
NOT SOLD SEPARAT
NUT - hex.
6шт.
49
A23193
REGULATOR
REGULATOR - voltage (Use with D34009 generator only)
4шт.
51
92-5
LOCK WASHER,5/16"
LOCK WASHER, 5/16"
4шт.
52
A36584
STARTING MOTOR
STARTER ASSEMBLY - engine, parts list figure 80
1шт.
52
104223A1R
REMAN-STARTER
Remanufactured STARTER 12 volt Presto Inertia
1шт.
52
104223A1C
CORE-STARTER
Return Part Number, STARTER 12 volt Presto Inertia
1шт.
53
193-1000
NUT,Keps, w/LW,#10-32
NUT - lock, hex. (No. 10-32 NF) Zinc plated (Ignition switch solenoid terminal)
1шт.
54
129-122
NUT,5/16"-24, G5
NUT, (Battery cable to solenoid terminal, outer) 5/16"-24, G5
1шт.
55
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
BOLT, Hex, 3/8"-16 x 2", G5
3шт.
56
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
3шт.
57
A41820
COIL
COIL - ignition (Parts list figure 82)
1шт.
58
G13085
ELECTRICAL WIRE
WIRE WIRE - coil to distriubutor (12" long)
1шт.
59
G11051
DISTRIBUTOR
DISTRIBUTOR - complete (Parts list figure 84)
1шт.
60
A38244
SPARE PART WIRE - coil to carburator solenoid
1шт.
61
515-23127
CLAMP,1/2", Insul, 3/8" Bolt
CLAMP - wire
1шт.
62
G11344
SPARE PART STRAP - generator adjusting
1шт.
63
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
BOLT, (F21239 generator) Hex, 3/8"-16 x 1 1/4", G5, Full Thd
1шт.
63
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
BOLT, (D34009 generator) Hex, 5/16"-18 x 7/8", G5, Full Thd
1шт.
64
95-5
WASHER,3/8" x 7/8" x .083"
WASHER - plain (5/16")
1шт.
65
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd
1шт.
66
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
1шт.
67
25-106
NUT,3/8"-16, G5
NUT - hex. (3/8" - 16 NC)
1шт.
D26162
SPARE PART BRACKET - generator mounting (F21239 generator)
1шт.
69
113-125
X
HHCS - 5/16" - 18 NC x 3/4" (F21239 generator)
2шт.
70
92-5
LOCK WASHER,5/16"
LOCK WASHER, , F21239 generator 5/16"
2шт.
71
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
HHCS - 5/16" - 18 NC x 1-1/4" (F21239 generator)
2шт.
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
HHCS - 3/8" - 18 NC x 1-1/4" (D34009 generator)
2шт.
72
95-5
WASHER,3/8" x 7/8" x .083"
WASHER - plain (5/16") F21239 generator
1шт.
195-2031
WASHER
WASHER - plain (3/8") D34009 generator
1шт.
73
D46947
SPARE PART WASHER - special (D34009 generator)
1шт.
74
92-5
LOCK WASHER,5/16"
LOCK WASHER, , F21239 generator 5/16"
2шт.
95-6
WASHER,3/8"
WASHER - med. sect. lock () D34009 generator 3/8"
2шт.
75
9635082
NUT,5/16" - 18, Gr 5
NUT - hex. (5/16" - 18 NC) F21239 generator
2шт.
25-106
NUT,3/8"-16, G5
NUT - hex. (3/8" - 18 NC) D34009 generator
2шт.
Выбрано товаров: 85
