Запчасти Case 310G (084) - DISTRIBUTOR, (148B) SPARK IGNITION ENGINE (06) - ELECTRICAL SYSTEMS

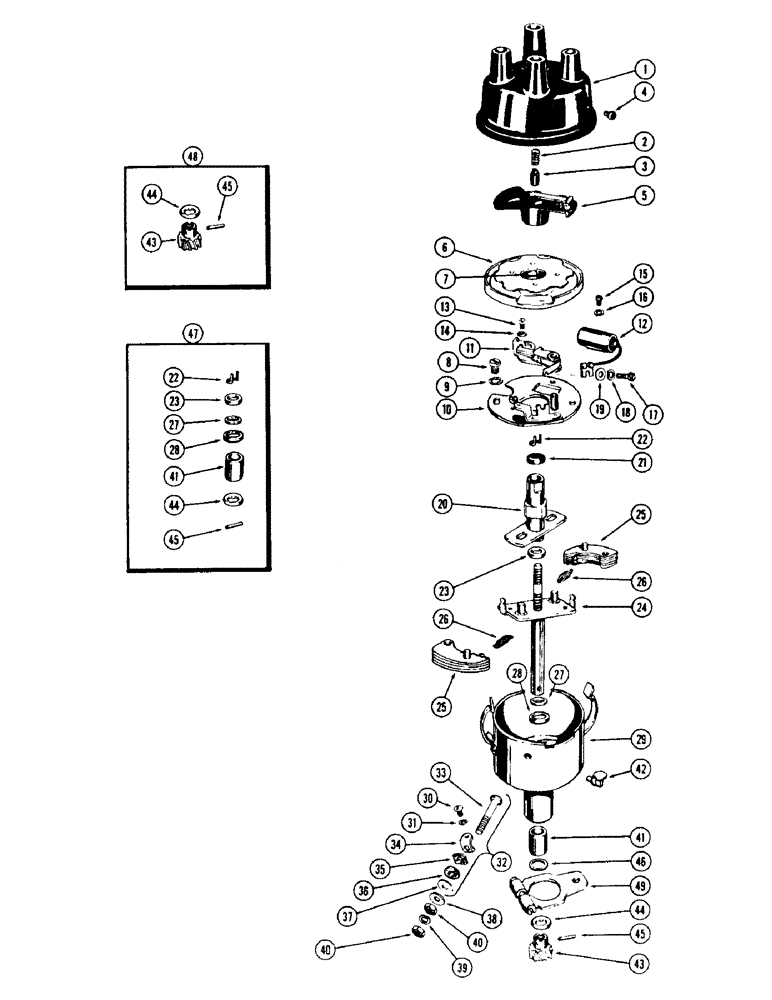

Схема запчастей Case 310G - (084) - DISTRIBUTOR, (148B) SPARK IGNITION ENGINE (06) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

G11051

DISTRIBUTOR

ASSY. (Prestolite #IAD-6003-2J)

1шт.

1

A8368

CAP

ASSY.

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - contact, button

1шт.

3

NSS

NOT SOLD SEPARAT

BRUSH - hi-tension contact (Carbon)

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - vent hole (Rubber)

1шт.

5

A8369

ROTOR

1шт.

6

A25194

PLATE

COVER ASSY. - breaker plate, w/dust seal

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - dust (Felt)

1шт.

8

177-94

SCREW,Sl Fil Hd, #10 - 32 x 5/16"

- breaker plate, #10-32 x 5/16" fill hd.

2шт.

9

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

10

A25196

PLATE

- breaker

1шт.

A40929

KIT

- point & condenser

1шт.

11

NSS

NOT SOLD SEPARAT

CONTACT ASSY. - (Point set) (Order A40929)

1шт.

12

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40929)

1шт.

13

177-72

SCREW - contact, #8-32 x 3/16" fill. hd.

1шт.

14

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

15

177-56

SCREW - condenser, #6-32 x 3/16" fill. hd.

1шт.

16

92-5

LOCK WASHER,5/16"

#6 5/16"

1шт.

17

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

- condenser lead, #6-32 x 5/16" spec. hd.

1шт.

18

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

19

195-6

WASHER,#6

- small flat, #6

1шт.

20

A25193

CAM

ASSY.

1шт.

21

NSS

NOT SOLD SEPARAT

FELT - cam sleeve oil wick

1шт.

Ref #21 - Use A42818 Wick Kit. 06/11/96

1шт.

22

A25180

RING, SNAP

RING - snap, cam ret. (See ref. 47)

1шт.

23

A25197

SPACER

- cam (See ref. 47)

1шт.

24

A25177

SHAFT

- drive

1шт.

25

A25198

WEIGHT

- governor

2шт.

26

A25208

SET

SPRING SET - gov. weight (Set of 2)

1шт.

27

A24752

WASHER

- thrust, drive shaft, upper (See ref. 47)

1шт.

28

A24753

WASHER

- thrust, drive shaft, lower (See ref. 47)

1шт.

29

NSS

NOT SOLD SEPARAT

BASE ASSY. - w/clamps (Order G11051)

1шт.

30

174-56

SCREW - connector, #6-32 x 3/16" rd. hd.

1шт.

31

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

32

A40321

KIT

- stud, terminal contact

1шт.

33

NSS

NOT SOLD SEPARAT

STUD - primary term. (Order ref. 32)

1шт.

34

NSS

NOT SOLD SEPARAT

CONNECTOR - term. (Order ref. 32)

1шт.

35

NSS

NOT SOLD SEPARAT

INSULATION - term. stud, inner (Order ref. 32)

1шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - insulation, term. stud (Order ref. 32)

1шт.

37

NSS

NOT SOLD SEPARAT

INSULATION - term. stud, outer (Order ref. 32)

1шт.

38

195-9

WASHER - small flat, #10

1шт.

39

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

40

129-27

NUT,Hex, #10 - 32

- hex #10-32

2шт.

41

A24766

BUSHING

BEARING - drive shaft (See ref. 47)

1шт.

42

A24887

OILER - drive shaft brg.

1шт.

43

G11714

GEAR

- distributor drive (See ref. 48)

1шт.

44

A25200

WASHER

- thrust, drive gear (See ref. 47 and 48)

1шт.

45

A25201

PIN

- drive gear ret. (See ref. 47 and 48)

1шт.

46

A30080

THRUST WASHER

- thrust, advance arm

1шт.

47

A40322

KIT

- bearing

1шт.

48

A40323

GEAR

KIT - gear

1шт.

49

A29989

ARM

- advance

1шт.

Выбрано товаров: 52
