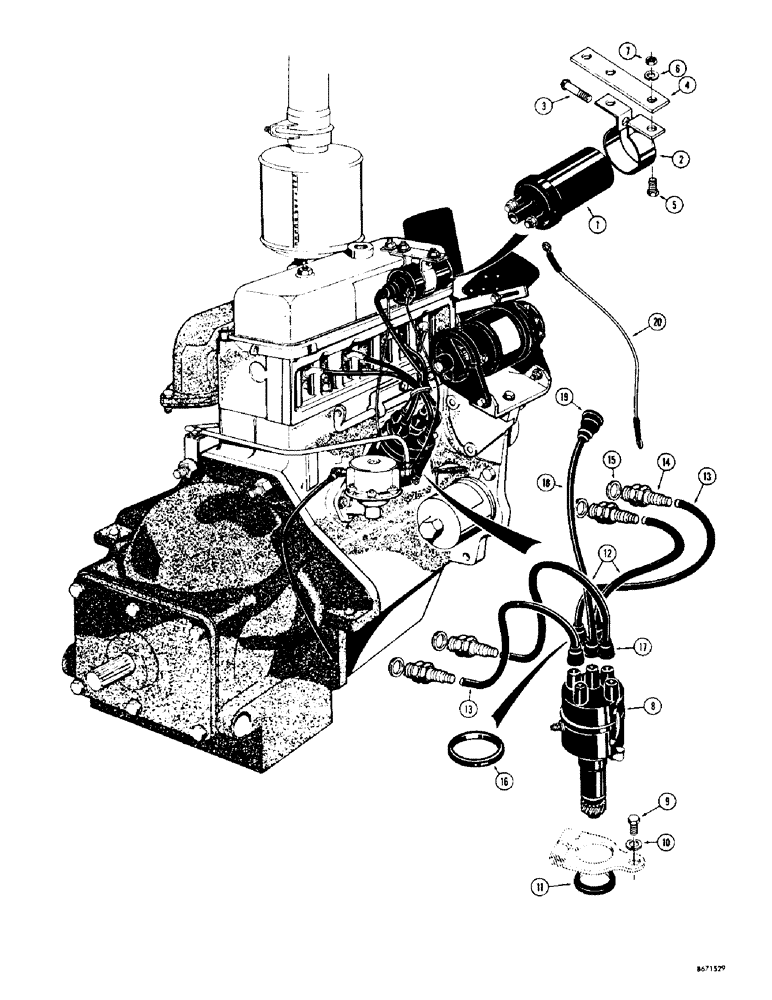

Запчасти Case 310G (082) - COIL, DISTRIBUTOR AND RELATED PARTS (06) - ELECTRICAL SYSTEMS

1

A41820

COIL

- ignition

1шт.

2

G46106

BRACKET

BAND - coil mounting

1шт.

3

173-219

RHMS - no. 10 - 32 NF x 1-1/2" (Zinc plated)

1шт.

4

G11705

BRACKET

STRAP - mounting, coil to valve cover stud

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

8

G11051

DISTRIBUTOR

ASSEMBLY - complete (Parts list figure 84)

1шт.

9

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - distributor to block

1шт.

12

A30018

CABLE

WIRE - no. 2 and no. 3 spark plugs (8-1/2")

2шт.

13

A29994

CABLE

WIRE - no. 1 and no. 4 spark plugs (10-1/2")

2шт.

14

G44840

SPARK PLUG

- 18 MM (Prestolite no. 18 8)

4шт.

15

G46839

GASKET

- spark plugs

1шт.

16

A30109

WASHER

- rubber, spark plug wire retainer

1шт.

17

A29338

COVER

NIPPLE - rubber, spark plug wires and coil cable at distributor

5шт.

18

CASA30038

CABLE

-, Serial Range: coil-distributor

1шт.

19

G46803

BOOT

NIPPLE - rubber, at coil

1шт.

20

G13085

ELECTRICAL WIRE

WIRE - coil to distributor (12" long)

1шт.
