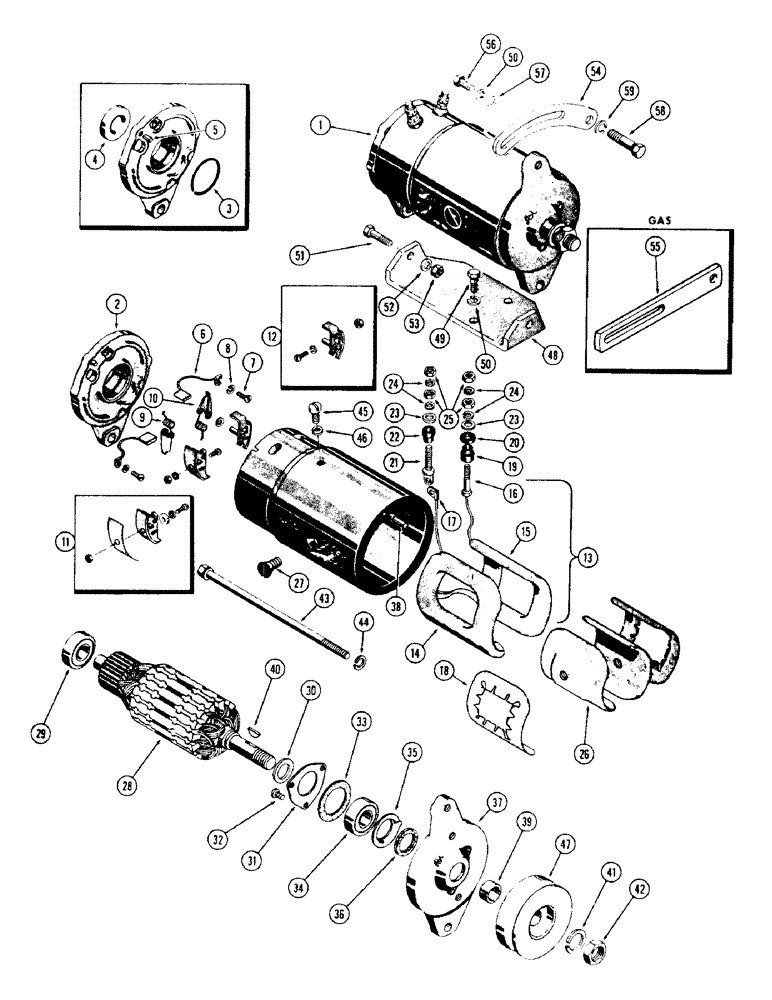

Запчасти Case 310G (076) - D34009 GENERATOR AND MOUNTING PARTS, 148B SPARK IGNITION & 188 DIESEL ENGINES (06) - ELECTRICAL SYSTEMS

1

D34009

GENERATOR

GENERATOR ASSY. (Delco #1102339)

1шт.

1

104018A1R

REMAN-GENERATOR

2 Brush

1шт.

1

104018A1C

CORE-GENERATOR

Return Number

1шт.

2

A25416

SPARE PART FRAME ASSY. - commutator end

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - bearing

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - oil & brg. well

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - dowel, frame locating

1шт.

6

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH (Set of 2)

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - brush lead attaching

2шт.

8

NSS

NOT SOLD SEPARAT

WASHER - lock, brush lead attach. screw

2шт.

9

A25423

SPRING

SPRING - brush tension

2шт.

10

R15090

ARM

ARM - brush

2шт.

11

A40704

NOZZLE HOLDER

HOLDER ASSY. - brush, insulated

1шт.

12

A40703

NOZZLE HOLDER

HOLDER ASSY. - brush, grounded

1шт.

13

A40698

COIL

COIL ASSY. - field

1шт.

14

NSS

NOT SOLD SEPARAT

FIELD - right hand

1шт.

15

NSS

NOT SOLD SEPARAT

FIELD - left hand

1шт.

16

R16150

X

STUD - field terminal

1шт.

17

NSS

NOT SOLD SEPARAT

CLIP - armature terminal

1шт.

18

A25447

ISOLATOR

INSULATION - field coil

2шт.

19

R15077

X

BUSHING - field term., insulating

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - field term., insulating

1шт.

21

R16145

SPARE PART STUD - armature terminal

1шт.

22

R16147

BUSHING

BUSHING - armature term., insulating

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - term. studs, plain

2шт.

24

NSS

NOT SOLD SEPARAT

WASHER - lock, term. studs

4шт.

25

NSS

NOT SOLD SEPARAT

NUT - term. studs

4шт.

26

A40736

SPARE PART SHOE - pole

2шт.

27

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

2шт.

28

A25545

SPARE PART ARMATURE

1шт.

29

R15094

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, armature (Comm. end)

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - spacer, drive end

1шт.

31

R15101

PLATE

PLATE bearing retainer

1шт.

32

NSS

NOT SOLD SEPARAT

SCREW - brg. ret. plate

3шт.

33

R16170

GASKET

GASKET - brg. ret. plate

1шт.

34

R15094

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

35

NSS

NOT SOLD SEPARAT

PLATE - felt washer retaining

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - felt seal, drive end brg.

1шт.

37

A25444

SPARE PART FRAME - drive end

1шт.

38

NSS

NOT SOLD SEPARAT

PIN - dowel, drive end locating

1шт.

39

R15099

SPARE PART COLLAR - spacer, pulley

1шт.

40

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8", HT

1шт.

41

R16171

SPRING WASHER

WASHER - lock, pulley

1шт.

42

A25546

NUT

NUT - pulley retaining

1шт.

43

R15106

BOLT

BOLT - thru

2шт.

44

NSS

NOT SOLD SEPARAT

WASHER - lock, thru bolt

2шт.

45

NSS

NOT SOLD SEPARAT

SCREW - condenser mtg

1шт.

46

NSS

NOT SOLD SEPARAT

WASHER - lock, condenser mtg. screw

1шт.

47

A25454

PULLEY

PULLEY - generator drive

1шт.

48

D34012

BRACKET

BRACKET - generator mounting

1шт.

49

113-125

X

BOLT - 5/16 x 3/4" N.C. hex

2шт.

50

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

3шт.

51

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

52

95-6

WASHER,3/8"

WASHER - lock, 3/8"

2шт.

53

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" N.C. hex

2шт.

54

A37107

SPARE PART STRAP - generator adjusting (Diesel models)

1шт.

55

G11344

SPARE PART STRAP - generator adjusting (Gas models)

1шт.

56

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

57

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - 3/8 x 7/8" x 5/64"

1шт.

58

16-632

SCREW,Hex, 3/8" - 24 x 2"

BOLT - 3/8" N.C. hex.

1шт.

59

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.
