Запчасти Case 310G (074) - A36279 GENERATOR AND MOUNTING PARTS, (148B) SPARK IGNITION (06) - ELECTRICAL SYSTEMS

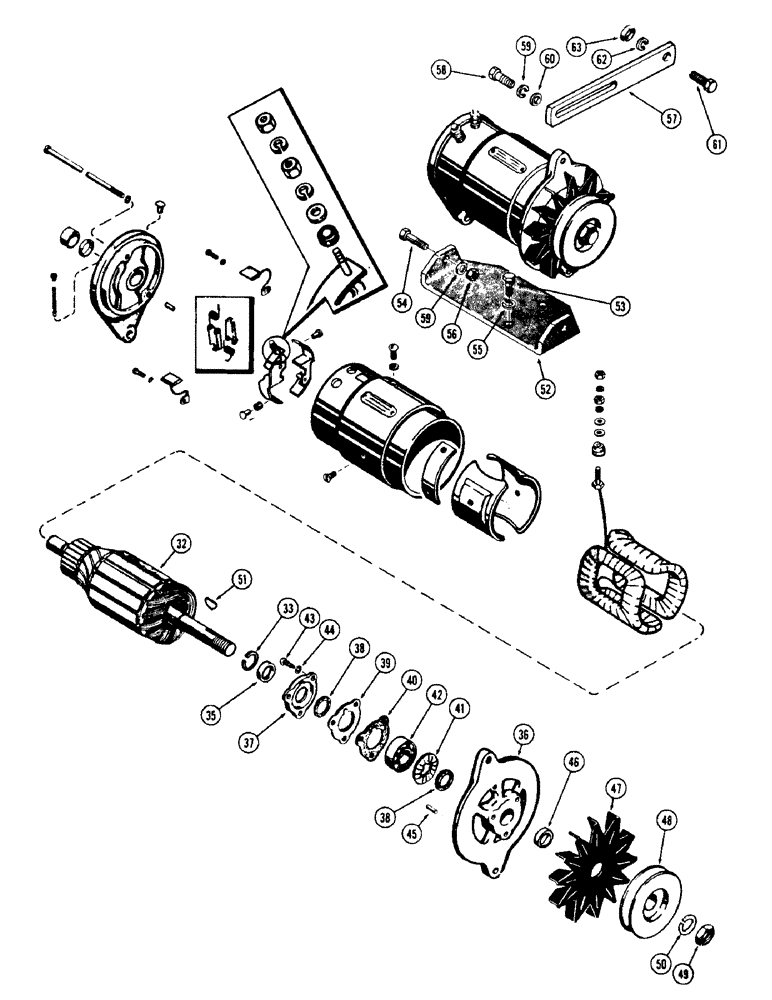

Схема запчастей Case 310G - (074) - A36279 GENERATOR AND MOUNTING PARTS, (148B) SPARK IGNITION (06) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

32

A25625

ARMATURE

ASSY.

1шт.

33

NSS

NOT SOLD SEPARAT

RING - retainer

1шт.

35

NSS

NOT SOLD SEPARAT

SPACER - retainer

1шт.

36

A35616

HOSE

HEAD ASSY. - drive end.

1шт.

37

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER - drive end (Felt)

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - bearing retainer

1шт.

40

NSS

NOT SOLD SEPARAT

GASKET - plate to end head

1шт.

41

NSS

NOT SOLD SEPARAT

RETAINER - outer bearing

1шт.

42

A25618

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

43

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- brg. ret., #10-32 x 1/2" rd. hd.

3шт.

44

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

45

NSS

NOT SOLD SEPARAT

PIN - locating, drive end

1шт.

46

14504

SPACER - fan & pulley

1шт.

47

14503

FAN - ventilating

1шт.

48

G4521

PULLEY

- generator drive

1шт.

49

A25619

NUT - pulley retaining

1шт.

50

92-11

WASHER - lock, pulley nut

1шт.

51

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Armature shaft #5, 1/8" x 5/8"

1шт.

52

D26162

BRACKET - generator mounting

1шт.

53

113-125

X

BOLT - 5/16" x 3/4" N.C. hex

2шт.

54

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex

2шт.

55

92-5

LOCK WASHER,5/16"

4шт.

56

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

57

G11344

STRAP - generator adjusting

1шт.

58

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

59

92-5

LOCK WASHER,5/16"

1шт.

60

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

61

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

62

92-6

LOCK WASHER,3/8"

1шт.

63

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

Выбрано товаров: 31
