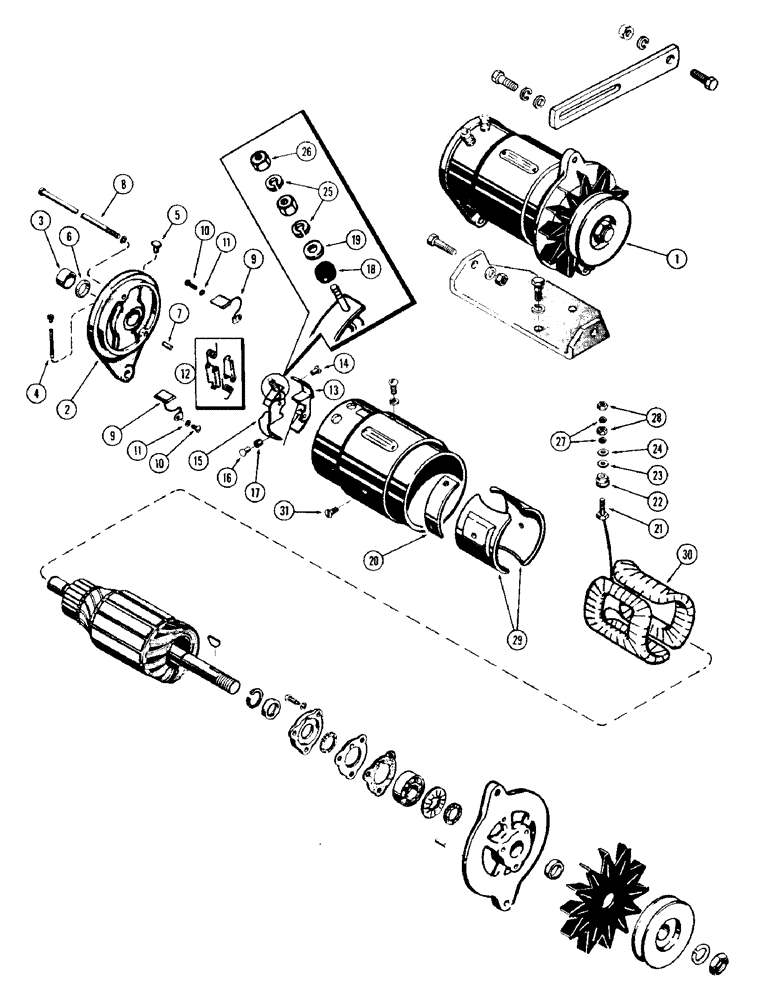

Запчасти Case 310G (072) - A36279 GENERATOR AND MOUNTING PARTS, (148B) SPARK IGNITION (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A36279
X
GENERATOR ASSY. (Eltra #GJT-7404A) (Used for production) (Order F21239)
1шт.
1
F21239
GENERATOR ASSY. (Eltra #GJT-7404S) (Used for repairs)
1шт.
2
A25620
HEAD ASSY. - commutator end
1шт.
3
A25623
BUSHING
BEARING - armature shaft (Bronze)
1шт.
4
NSS
NOT SOLD SEPARAT
WICK - oiler
1шт.
5
NSS
NOT SOLD SEPARAT
OILER - commutator end
1шт.
6
NSS
NOT SOLD SEPARAT
RETAINER - oil wick
1шт.
7
NSS
NOT SOLD SEPARAT
DOWEL - locating, comm. lead
1шт.
8
NSS
NOT SOLD SEPARAT
BOLT - thru, generator
2шт.
9
F83422
BRUSH ASSY.
BRUSH SET - armature (Set of 2)
1шт.
10
173-224
SCREW,Sl Rnd Hd, #8 - 32 x 1/4"
- brush lead, #8-32 x 1/4" rd. hd.
2шт.
11
192-16
LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND
Washer, Lock, #8
2шт.
12
A40276
SPRING
KIT - arm & spring, brush (Set of 2 arms & 2 springs)
1шт.
A40279
STUD
KIT - terminal & holder (Not illust.)
1шт.
13
NSS
NOT SOLD SEPARAT
HOLDER - brush, grounded
1шт.
14
NSS
NOT SOLD SEPARAT
RIVET - grounded brush holder
2шт.
15
NSS
NOT SOLD SEPARAT
HOLDER - brush, insulated
1шт.
16
NSS
NOT SOLD SEPARAT
RIVET - insulated brush holder
1шт.
17
NSS
NOT SOLD SEPARAT
BUSHING - insulation, holder rivet
1шт.
18
NSS
NOT SOLD SEPARAT
BUSHING - insulation, armature terminal
1шт.
19
NSS
NOT SOLD SEPARAT
WASHER - plain, armature terminal
1шт.
20
NSS
NOT SOLD SEPARAT
INSULATION - brush holder
1шт.
21
NSS
NOT SOLD SEPARAT
STUD - field terminal
1шт.
22
NSS
NOT SOLD SEPARAT
BUSHING - insulation, field terminal
1шт.
23
NSS
NOT SOLD SEPARAT
WASHER - insulation, field terminal
1шт.
24
NSS
NOT SOLD SEPARAT
WASHER - plain, field terminal
1шт.
25
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, , Arm terminal 1/4"
2шт.
26
129-121
NUT,1/4"-28, G5
Armature terminal 1/4"-28, G5
2шт.
27
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, , Field terminal #10
2шт.
28
129-37
NUT,#10-32
Field terminal #10-32
2шт.
29
NSS
NOT SOLD SEPARAT
SHOE - pole
2шт.
30
A40273
COIL ASSY. - field
1шт.
31
NSS
NOT SOLD SEPARAT
SCREW - pole shoe
2шт.
Выбрано товаров: 33
