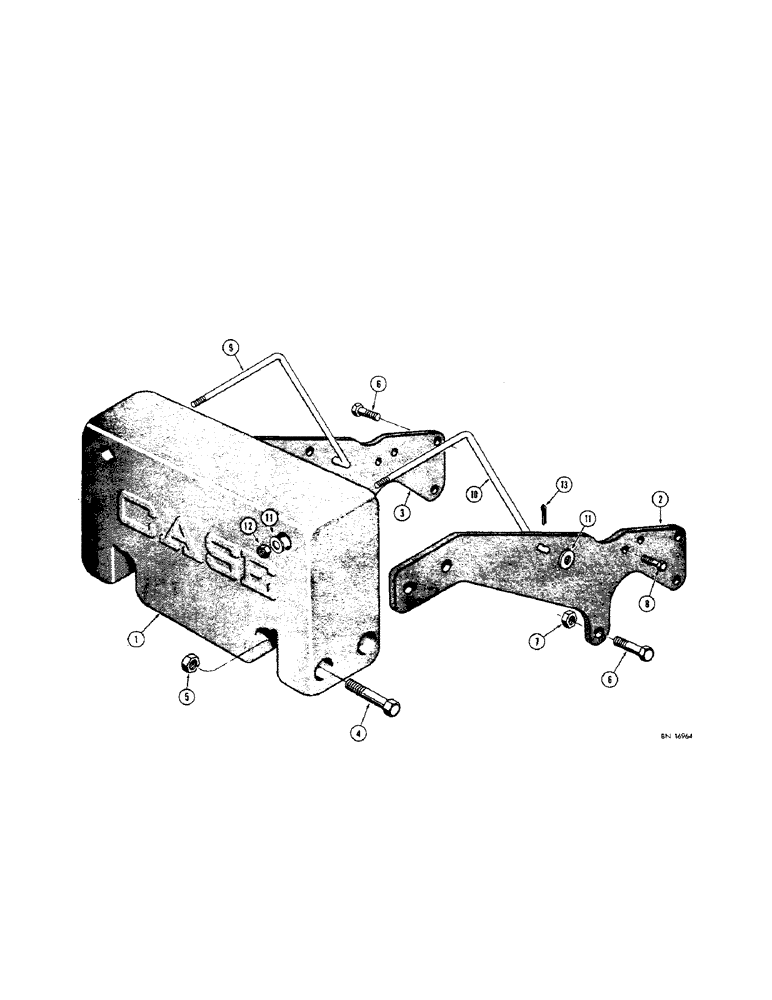

Запчасти Case 310G (278[1]) - 900 LB. REAR COUNTERWEIGHT WITH WINCH (05) - UPPERSTRUCTURE CHASSIS

1

32105

COUNTERWEIGHT - rear, 900 lb.

1шт.

2

D33837

ARM - support, R.H. (Use with Carco Winch only) See D36700 arm

1шт.

D36700

ARM - support, R.H. (Use with Germatic Winch only)

1шт.

3

D33836

SCREW

ARM - support, L.H.

1шт.

4

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, Hex, 1"-8 x 5", G5

4шт.

5

230-41116

NUT,1"-8, GA

NUT - self-locking (1" - 8 NC)

4шт.

6

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

6шт.

7

230-41112

LOCK NUT,3/4"-10, GA

NUT - self-locking (3/4" - 10 NC)

2шт.

8

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

9

D26889

ROD - tie, L.H.

1шт.

10

D26890

ROD - tie, R.H.

1шт.

11

195-41

WASHER,5/8"

4шт.

12

230-4117

LOCK NUT,7/16"-14, GA

NUT - self-locking (5/8" - 11 NC)

2шт.

13

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.
