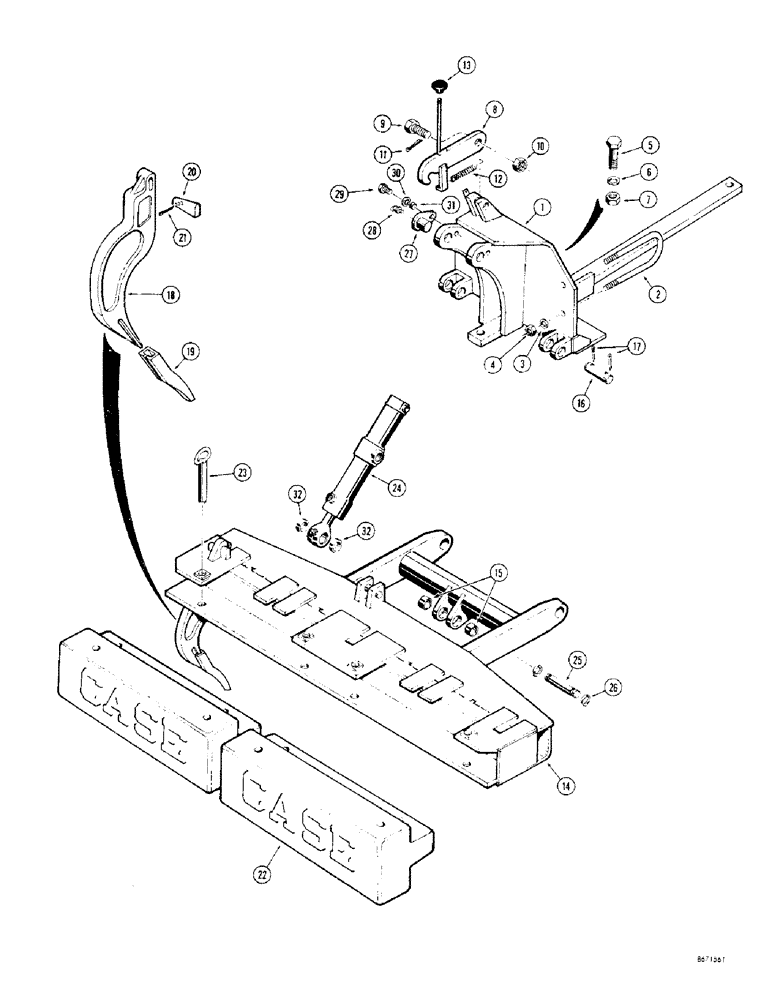

Запчасти Case 310G (240) - RIPPER (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
37399
PUMP, FUEL INJECTION
PLATE - mounting
1шт.
2
31696
BOLT
"U" BOLT - mounting plate to final drive spacer
2шт.
4
25-1110
NUT,5/8"-18, G5
- hex. (5/8" - 18 NF)
4шт.
5
14-1024
BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5
2шт.
7
25-1110
NUT,5/8"-18, G5
- hex. (5/8" - 18 NF)
2шт.
8
D29985
LOCK
- transport safety
1шт.
9
D25951
BOLT
- special (1-1/4" - 12 NF x 3-1/4")
1шт.
10
25-1220
SLOTTED NUT,1 1/4"-12, G5
NUT - hex., slotted (1-1/4" - 12 NF)
1шт.
12
11469
SPRING
- transport safety lock
1шт.
13
CAS31375
KNOB
- transport safety lock
1шт.
14
D33518
FRAME - ripper, Includes: Ref. 15
1шт.
15
D32789
BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L
- frame
2шт.
16
31715
PIN
- mounting, frame to mounting plate
2шт.
17
132-152
PIN
- cotter, 31715 pin (1/4" x 1-3/4")
4шт.
18
D23748
TOOTH
- ripper
5шт.
19
D25598
TOOTH
POINT - ripper tooth
5шт.
20
D30592
WEDGE
RETAINER - wedge, ripper tooth
5шт.
21
132-148
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), , D30592 wedge 1/4" x 1 1/4"
5шт.
22
D28845
WEIGHT - ripper
2шт.
23
CAS19055
PIN ASSY.
PIN - ripper weight
4шт.
24
REF
INSTRUCTION
CYLINDER - ripper (See figures 266(1) and 267A for cylinders)
1шт.
25
D26105
PIN ASSY.
PIN - mounting cyl. to frame, Includes: Ref. 26
1шт.
26
D26918
SNAP RING,#125, Ext
Ring, Snap, , mounting pin #125, Ext
2шт.
27
35031
PIN
- trunnion, cylinder to mounting plate
2шт.
28
219-40
LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF
FITTING - grease, 67-1/2 degree (1/8" NPT)
2шт.
29
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS - 1/2" - 20 NF x 1"
2шт.
30
193-32
LOCK WASHER,Int Tooth, 1/2"
WASHER, LOCK, Int Tooth, 1/2"
2шт.
31
D23740
BUSHING
- lockhead pin
2шт.
32
R15389
SPACER
- piston rod
2шт.
11
132-56
COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"
Pin, Split (Cotter), , Special bolt 1/8" x 2"
1шт.
Выбрано товаров: 32
