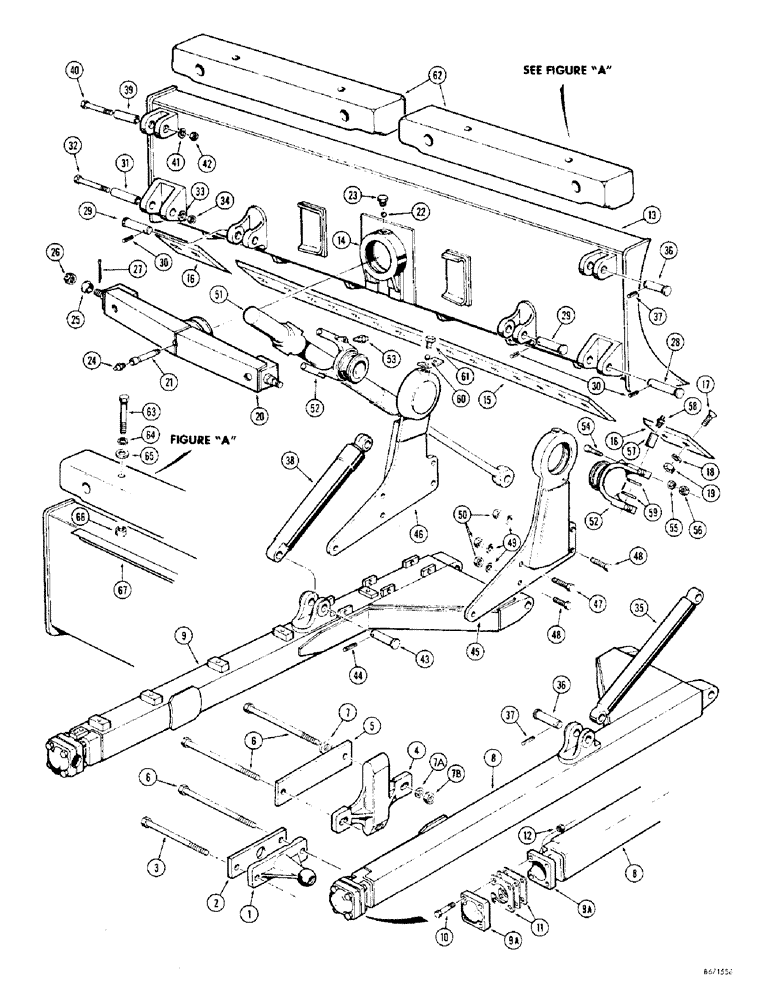

Запчасти Case 310G (226) - POWER TILT DOZER (05) - UPPERSTRUCTURE CHASSIS

1

D30587

TRUNNION - pivot, dozer attaching

2шт.

2

D30586

SPACER - trunnion

2шт.

3

14-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 5

HHCS - 3/4" - 16 NF x 12"

2шт.

4

37992

PLATE - rub

2шт.

5

D30585

SPACER - rub plate

2шт.

6

14-12216

BOLT,Hex, 3/4" - 16 x 13-1/2", Gr 5

HHCS - 3/4" - 16 NF x 13-1/2"

6шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (3/4")

4шт.

7a

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

7b

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

8шт.

8

37881

CONDUIT

BEAM - push, R.H., Includes: Ref. 9A - 12

1шт.

9

37997

FORK

BEAM - push, L.H., Includes: Ref. 9A - 12

1шт.

37736

KIT - pivot bracket, 37881 and 37997 push beams, Includes: Ref. 9A - 12

1шт.

9a

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - push beams

1шт.

10

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

HHCS - 1/2" - 20 NF x 3"

4шт.

11

37735

SHIM - pivot bracket (.0312")

1шт.

12

25-278

NUT,1/2"-20, G5, High

- hex. (1/2" - 20 NF)

4шт.

13

D25701

MOLDBOARD, Includes: Ref. 14

1шт.

14

D27109

TRUNNION - outer race

1шт.

15

16452

EDGE

BLADE - cutting, center

1шт.

16

NLS

NO LONGER SERVICED

BLADE - cutting, outer

2шт.

17

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2" - 13 NC x 1-3/4")

19шт.

18

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

19шт.

19

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

19шт.

20

D25702

LEVELING ASSEMBLY - moldboard

1шт.

21

D25736

PIPE - lubrication, leveling assembly

1шт.

22

211-17

BALL,3/4" Dia

- steel (.) 3/4" Dia

19шт.

23

D24506

PLUG

- special (7/8" - 14 NF)

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

25

D25704

SPACER

2шт.

26

25-1212

NUT - hex., slotted (3/4" - 10 NC) 3/4"-10, G5

2шт.

27

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

28

39222

PIN - R.H. push beam to moldboard, outer

1шт.

29

37990

PIN - push beam to moldboard, inner

2шт.

30

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

3шт.

31

D20149

PIN - L.H. push beam to moldboard, outer

1шт.

32

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

33

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

34

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

35

38158

STRUT - R.H. push, Serial Range: beam-moldboard

1шт.

36

37990

PIN - mounting, strut (Upper and lower)

2шт.

37

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

2шт.

38

REF

INSTRUCTION

CYLINDER - tilt (See figure 272 for cylinders)

1шт.

39

D20188

PIN - tilt, Serial Range: cylinder-moldboard

1шт.

40

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

41

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

42

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

43

37990

PIN - tilt cylinder to L.H. push beam

1шт.

44

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

45

D24502

TRUNNION - cylinder, R.H. outer

1шт.

46

D24501

TRUNNION - cylinder, L.H. outer

1шт.

47

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

48

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

49

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

50

25-1010

NUT,5/8"-11, G5

10шт.

51

REF

INSTRUCTION

CYLINDER - lift (See figures 268 and 269A for cylinders)

2шт.

52

D24497

TRUNNION

- inner race

2шт.

53

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

54

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

55

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

56

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

57

D24508

PIN,31.74mm OD x 50.8mm L

- mounting, Serial Range: cylinder-trunnion

4шт.

58

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

59

D24516

WASHER

- special

4шт.

60

211-17

BALL,3/4" Dia

- steel (.) 3/4" Dia

38шт.

61

D24506

PLUG

- special

2шт.

62

D35480

COUNTERWEIGHT - Dozer/Backhoe (200 lbs.), power tilt

2шт.

63

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Counterweights for power tilt dozer/backhoe Hex, 3/4"-10 x 4 1/2", G5

4шт.

64

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Counterweights for power tilt dozer/backhoe 3/4"

4шт.

65

95-12

WASHER,3/4"

- std. wrot (), counterweights for power tilt dozer/backhoe 3/4"

4шт.

66

D35481

BOSS - mounting, counterweights for power tilt dozer/backhoe

4шт.

67

D35483

BRACKET - support, counterweights for power tilt dozer/backhoe

1шт.
