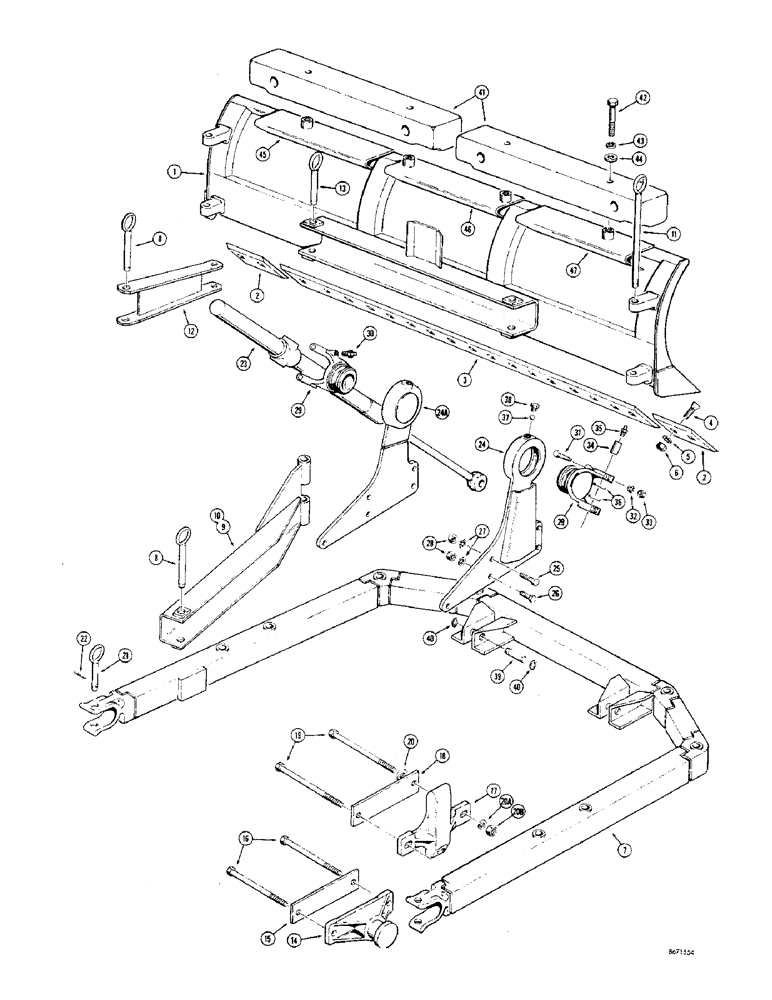

Запчасти Case 310G (216) - MECHANICAL ANGLING DOZER (05) - UPPERSTRUCTURE CHASSIS

1

16741

MOLDBOARD - mechanical angling dozer

1шт.

2

16187

GUARD

BLADE - cutting, end

2шт.

3

16792

EDGE, CUTTING

BLADE - cutting, center

1шт.

4

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2" - 13 NC x 1-3/4")

22шт.

5

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

22шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

22шт.

7

D40737

"C" FRAME - mechanical angling dozer

1шт.

8

16720

SHROUD

PIN - moldboard and stabilizer arms to "C" frame

4шт.

9

16757

FITTING

ARM - stabilizer, R.H.

1шт.

10

16758

ARM - stabilizer, L.H.

1шт.

11

16569

BACK PLATE

PIN - stabilizer, Serial Range: arm-moldboard

2шт.

12

16798

ARM - support, angling

1шт.

13

16720

SHROUD

PIN - mounting, support arm

1шт.

14

D30588

BRACKET - pivot, dozer attaching

2шт.

15

D30586

SPACER - pivot bracket

2шт.

16

16-12192

BOLT (MACHINE)

HHCS - 3/4" - 16 NF x 12"

4шт.

17

33961

CONNECTING LINK

PLATE - rub

2шт.

18

D30586

SPACER - rub plate

2шт.

19

14-12216

BOLT,Hex, 3/4" - 16 x 13-1/2", Gr 5

HHCS - 3/4" - 16 NF x 13-1/2"

4шт.

20

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (3/4")

4шт.

20a

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

20b

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

8шт.

21

16865

PIN - mounting, "C" frame to pivot bracket

2шт.

22

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

23

REF

INSTRUCTION

CYLINDER - lift (See figures 268 and 269A for cylinders)

2шт.

24

D24502

TRUNNION - cylinder, R.H outer

1шт.

24a

D24501

TRUNNION - cylinder, L.H. outer

1шт.

25

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

26

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

28

25-1010

NUT,5/8"-11, G5

10шт.

29

D24497

TRUNNION

- inner race

2шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

31

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

32

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

34

D24508

PIN,31.74mm OD x 50.8mm L

- mounting, Serial Range: cylinder-trunnion

4шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

36

D24516

WASHER

- special

4шт.

37

211-17

BALL,3/4" Dia

- steel (.) 3/4" Dia

38шт.

38

D24506

PLUG

- special (7/8" - 14 NF)

2шт.

39

D30609

PIN,25.4mm OD x 95.25mm L

- lift cylinder to "C" frame

2шт.

40

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retaining, D306090 pin

4шт.

41

D35480

COUNTERWEIGHT - Dozer/Backhoe (200 lbs.), mechanical angling

2шт.

42

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Counterweights for mechanical angling dozer/backhoe Hex, 3/4"-10 x 4 1/2", G5

4шт.

43

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Counterweights for mechanical angling dozer/backhoe 3/4"

4шт.

44

95-12

WASHER,3/4"

- flat (), counterweights for mechanical angling dozer/backhoe 3/4"

4шт.

45

D35485

BRACKET - mounting (L.H.), counterweights for mechanical angling dozer/backhoe

1шт.

46

D35486

BRACKET - mounting (Center), counterweights for mechanical angling dozer/backhoe

1шт.

47

D35484

BRACKET - mounting (R.H.), counterweights for mechanical angling dozer/backhoe

1шт.

48

D35481

BOSS - mounting (Not shown), counterweights for mechanical angling dozer/backhoe

4шт.
