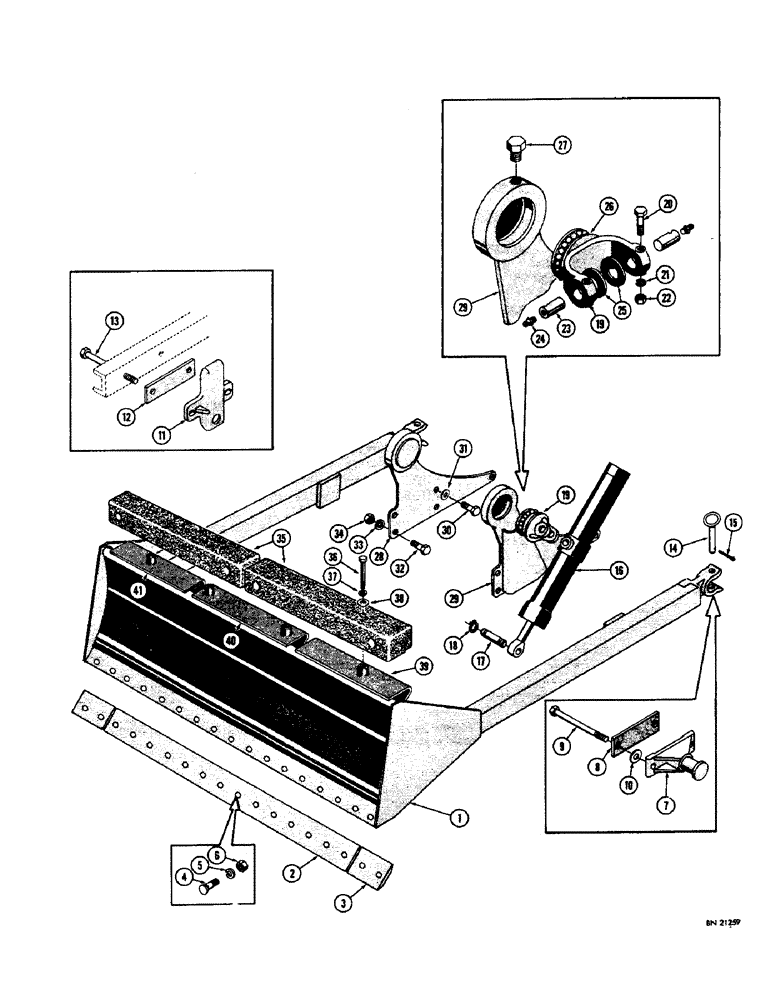

Запчасти Case 310G (214) - BULLDOZER (05) - UPPERSTRUCTURE CHASSIS

1

D24510

MOLDBOARD AND PUSH BEAM - bulldozer

1шт.

2

NLS

NO LONGER SERVICED

BLADE - cutting, center

1шт.

3

D25368

BLADE - cutting, end

2шт.

4

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2" - 13 NC x 1-3/4")

18шт.

5

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

18шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

18шт.

7

D30588

BRACKET - pivot, dozer attaching

2шт.

8

D30586

SPACER - pivot bracket

2шт.

9

16-12192

BOLT (MACHINE)

HHCS - 3/4" - 16 NF x 12"

4шт.

10

95-12

WASHER,3/4"

- flat () 3/4"

2шт.

11

33961

CONNECTING LINK

PLATE - rub

2шт.

12

D30586

SPACER - rub plate

2шт.

13

16-12216

X

HHCS - 3/4" - 16 NF x 13-1/2"

4шт.

14

38679

PIN - mounting, moldboard and push beam to pivot bracket

2шт.

15

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

16

REF

INSTRUCTION

CYLINDER - lift (See figures 268 and 269A for cylinders)

2шт.

17

D30609

PIN,25.4mm OD x 95.25mm L

- lift cylinder to moldboard and push beam

2шт.

18

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retaining, D30609 pin

4шт.

19

D24497

TRUNNION

- inner race

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) not shown

2шт.

20

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

21

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

22

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

23

D24508

PIN,31.74mm OD x 50.8mm L

- mounting, Serial Range: cylinder-trunnion

4шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

25

D24516

WASHER

- special

4шт.

26

211-17

BALL,3/4" Dia

- steel (.) 3/4" Dia

38шт.

27

D24506

PLUG

- special (7/8" - 14 NF)

2шт.

28

D24502

TRUNNION - cylinder, R.H. outer (When stock is exhausted, use D48927 trunnion)

1шт.

28

D48927

TRUNNION - cylinder, R.H. outer

1шт.

29

D24501

TRUNNION - cylinder, L.H. (When stock is exhausted, use D48928 trunnion)

1шт.

29

D48928

TRUNNION - cylinder, L.H. outer

1шт.

30

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

31

95-10

WASHER,5/8"

- standard wrot (1-3/4")

2шт.

32

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

34

25-1010

NUT,5/8"-11, G5

1шт.

35

D35480

COUNTERWEIGHT - Dozer/Backhoe (200 lbs.)

2шт.

36

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Counterweight for bulldozer/backhoe Hex, 3/4"-10 x 4 1/2", G5

4шт.

37

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Counterweight for bulldozer/backhoe 3/4"

4шт.

38

95-12

WASHER,3/4"

- flat (), counterweight for bulldozer/backhoe 3/4"

4шт.

39

D35489

BRACKET - mounting (L.H.), counterweight for bulldozer/backhoe

1шт.

40

D35487

BRACKET - mounting (Center), counterweight for bulldozer/backhoe

1шт.

41

D35490

BRACKET - mounting (R.H.), counterweight for bulldozer/backhoe

1шт.

42

D35481

BOSS - mounting (Not shown), counterweight for bulldozer/backhoe

4шт.
