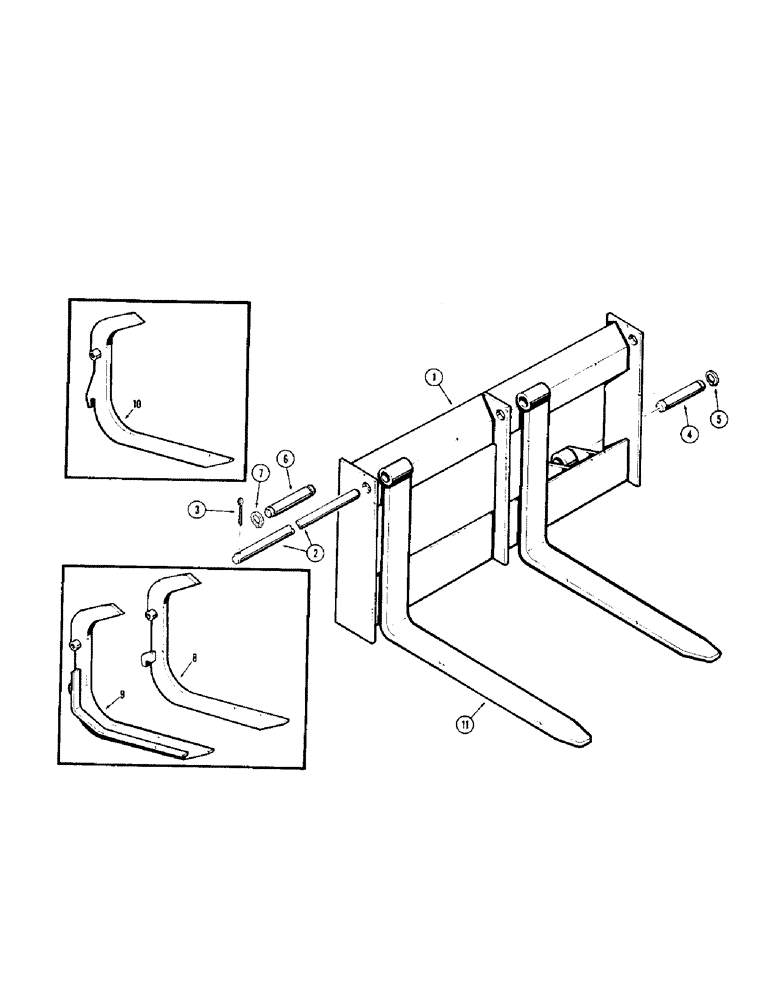

Запчасти Case 310G (204) - LOGGING AND PALLET FORKS (05) - UPPERSTRUCTURE CHASSIS

1

D32755

SUPPORT - fok

1шт.

2

D32754

SHAFT - fork support

1шт.

3

132-126

COTTER PIN,7/32" x 2"

Pin, Split (Cotter), 7/32" x 2"

2шт.

4

D33146

AXLE PIN

PIN - mounting

2шт.

5

D25280

SNAP RING,#175, Ext

Ring, Snap, , D33146 mounting pin #175, Ext

4шт.

6

D32931

PIN

- mounting

2шт.

7

D25279

SNAP RING,M35, Int

- D32931 mounting pin

4шт.

8

D32759

FORK - logging (L.H.) when stock is exhausted, use 2 - D43123 forks

1шт.

9

D32760

FORK - logging (R.H.) when stock is exhausted, use 2 - D43123 forks

1шт.

10

D43123

FORK - logging

2шт.

11

D32757

FORK - pallet

2шт.
