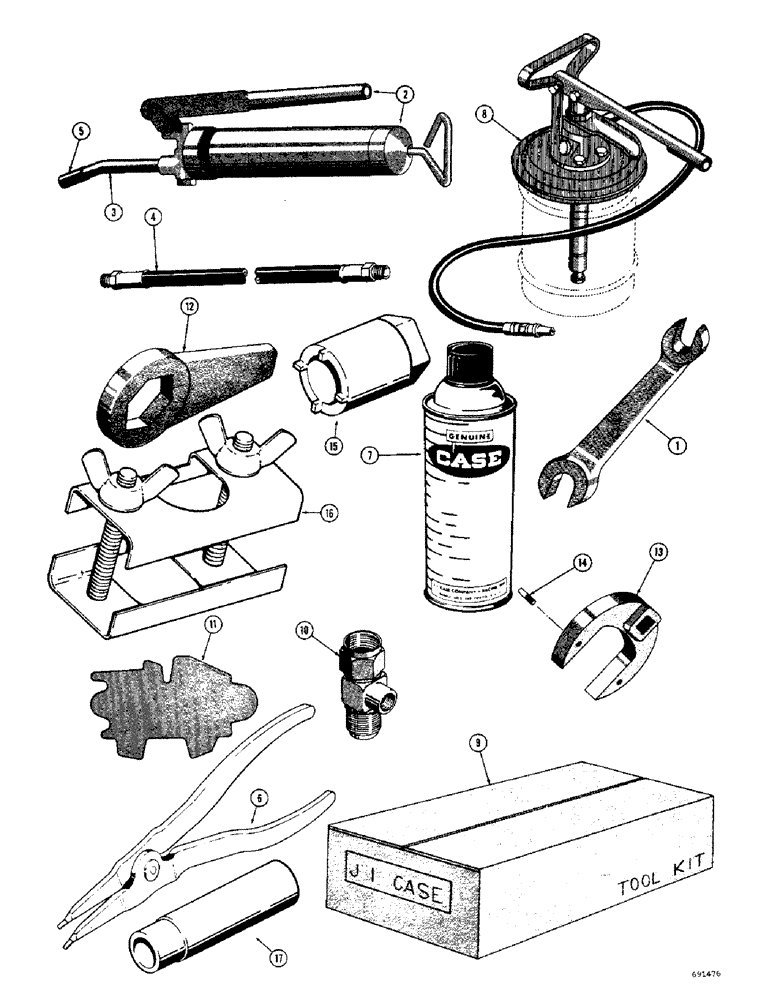

Запчасти Case 310G (156) - TOOLS AND GREASE GUNS (05) - UPPERSTRUCTURE CHASSIS

1

D26335

OPEN END WRENCH

WRENCH - end, track adjusting

1шт.

219-101

GUN, GREASE

GUN - grease, hand type, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

BARREL AND LEVER - gun

1шт.

3

NSS

NOT SOLD SEPARAT

EXTENSION - nozzle

1шт.

4

D28957

HOSE

- flex

1шт.

5

D28958

COUPLING, QUICK, FEM

COUPLER - hydraulic

1шт.

6

D32049

TOOL

PLIERS - retaining, snap ring

1шт.

7

B17072

START SPRAY FLUID

ETHER - can, cold starting aid

1шт.

8

71261

GUN - grease, bucket type

1шт.

9

CAS10079

TOOL

KIT - optional

1шт.

Includes one each: 6" slip joint plier, 1-5/16" x 4" screwdriver, 1-5/16" x 6" screwdriver, 1-1/2" ball peen hammer, set of 7 double open end wrenches (3/8" to 1-1/8"), 12" adjustable wrench, taper punch, 1/2" cut chisel, 18" jimmy bar, set of Allen-style wrenches (3/8" to 1"), socket drive adapter (3/8" female x 1/2" male), 8-1/4" T-flex handle (3/8" drive), 17" sliding T-handle (3/4" drive), set of 12 point 3/4" drive sockets (1-1/16" to 1-7/8"), and metal box.

1шт.

10

D26337

3 WAY CONNECTION

TEE - pressure test

1шт.

11

R15812

TOOL

GAUGE - wear, track

1шт.

12

NLS

NO LONGER SERVICED

WRENCH - slugging, drive sprocket nut

1шт.

D44110

OPEN END WRENCH

WRENCH SET - spanner (For removing and installing packing glands in threaded gland type hydraulic cylinders), Includes: Ref. 13 and 14

1шт.

13

D44111

OPEN END WRENCH

WRENCH - spanner, 2-1/2" I.D. cylinder with 1-1/4" or 1-1/2" dia. piston rods, Includes: Ref. 14

1шт.

13

D44112

OPEN END WRENCH

WRENCH - spanner, 3" I.D. cylinder with 1-1/2" dia. piston rod, Includes: Ref. 14

1шт.

13

D44113

OPEN END WRENCH

WRENCH - spanner, 3" I.D. cylinder with 1-3/4" dia. piston rod, Includes: Ref. 14

1шт.

13

D44114

OPEN END WRENCH

WRENCH - spanner, 3-1/2" cylinder with 1-3/4" or 2" dia. piston rods, Includes: Ref. 14

1шт.

13

D44115

OPEN END WRENCH

WRENCH - spanner, 4" I.D. cylinder with 2" or 2-1/4" dia. piston rod, Includes: Ref. 14

1шт.

13

D44116

OPEN END WRENCH

WRENCH - spanner, 4-1/2" or 5" cylinders with 2-1/4" dia. piston rod, Includes: Ref. 14

1шт.

14

D30107

PIN

- spanner wrench, 2-1/2" through 4" I.D. cylinders

3шт.

14

D44118

SPARE PART

PIN - spanner wrench, D44116 wrench only

3шт.

D45700

NO LONGER SERVICED

TOOL SET - loader and Dozer control valves, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

WRENCH - spanner, seal retainer

1шт.

16

NSS

NOT SOLD SEPARAT

COMPRESSOR - spool spring

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL - snap ring installing

1шт.
