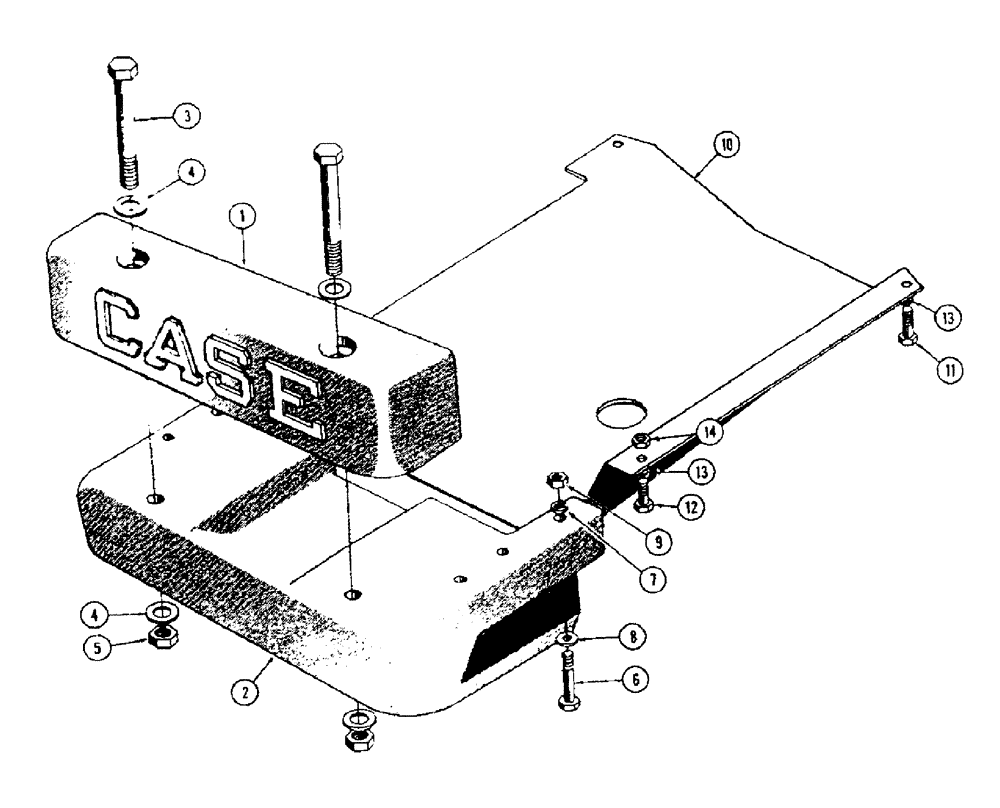

Запчасти Case 310G (152[1]) - FRONT COUNTERWEIGHT AND SPECIAL CRANKCASE GUARD (05) - UPPERSTRUCTURE CHASSIS

1

R26023

WEIGHT

COUNTERWEIGHT - upper

1шт.

2

36616

SHIM

COUNTERWEIGHT - lower

1шт.

3

13-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

2шт.

4

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

WASHER - special

4шт.

5

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock (5/8" - 11 NC)

2шт.

6

113-453

X

HHCS - 1/2" - 13 NC x 3-1/4"

6шт.

7

92-8

LOCK WASHER,1/2"

6шт.

8

95-8

WASHER,1/2"

standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick)

6шт.

9

129-556

NUT,1/2"-13, G8

6шт.

10

D34006

SPARE PART GUARD - crankcase, opt. for Drawbar and Dozer Models without backhoe

1шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

12

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

Hex

2шт.
