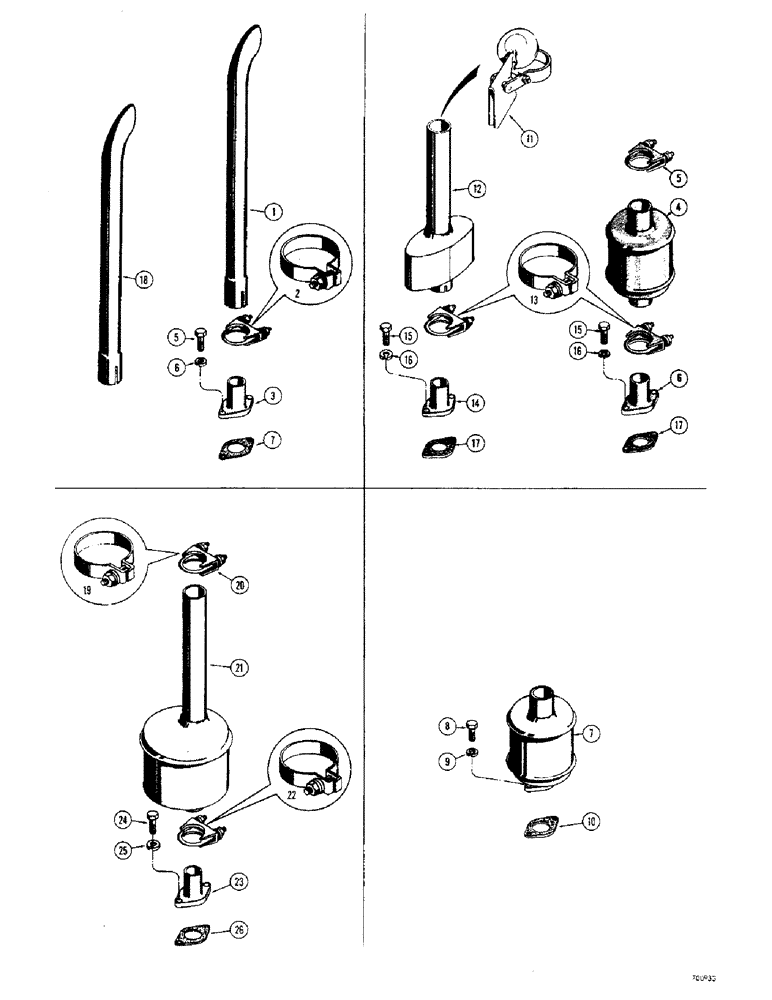

Запчасти Case 310G (134) - EXHAUST SYSTEM - DIESEL (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
D33503
PIPE
- exhaust, ceramic coated (Use with D22864 outlet, D35106 muffler or D29307 muffler)
1шт.
2
74768
X,2-1/2" ID
CLAMP - exhaust pipe (When stock is exhausted use A13240 clamp)
1шт.
A13240
CLAMP,2-5/8" ID
- exhaust pipe (Cadmium plated)
1шт.
3
D22864
OUTLET
- exhaust
1шт.
4
D29307
X
MUFFLER - exhaust, spark arresting (Optional) when stock is exhausted use D45256 muffler
1шт.
5
74768
X,2-1/2" ID
CLAMP - muffler (When stock is exhausted use A13240 clamp)
1шт.
A13240
CLAMP,2-5/8" ID
- muffler (Cadmium plated)
1шт.
6
D29308
OUTLET
- exhaust (D29307 muffler only)
1шт.
7
D35106
MUFFLER
- exhaust, under hood (Optional)
1шт.
8
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
2шт.
9
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
2шт.
10
G46853
MANIFOLD GASKET
- exhaust outlet
1шт.
11
A33742
CAP
- rain (D27275 muffler)
1шт.
12
D27275
MUFFLER
- exhaust, under hood (Optional) when stock is exhausted, use 1 - D35106 muffler, 1 - D33503 exhaust pipe and related parts
1шт.
13
74768
X,2-1/2" ID
CLAMP - muffler (When stock is exhausted use A13240 clamp)
1шт.
A13240
CLAMP,2-5/8" ID
- muffler (Cadmium plated)
1шт.
14
D22864
OUTLET
- exhaust
1шт.
15
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
2шт.
16
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
2шт.
17
G46853
MANIFOLD GASKET
- exhaust outlet
1шт.
18
D33535
PIPE
- exhaust, ceramic coated (Optional) use with D45256 muffler only
1шт.
19
G45767
X
CLAMP - exhaust pipe (When stock is exhausted use D38328 clamp)
1шт.
20
D38328
X
CLAMP - exhaust pipe (Zinc plated)
1шт.
21
D45256
MUFFLER,W/ Spark Arrester
- exhaust, spark arresting
1шт.
22
74768
X,2-1/2" ID
CLAMP - muffler (When stock is exhausted use A13240 clamp)
1шт.
A13240
CLAMP,2-5/8" ID
- muffler (Cadmium plated)
1шт.
23
D22864
OUTLET
- exhaust
1шт.
24
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
2шт.
25
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
2шт.
26
G46853
MANIFOLD GASKET
- exhaust outlet
1шт.
Выбрано товаров: 30
