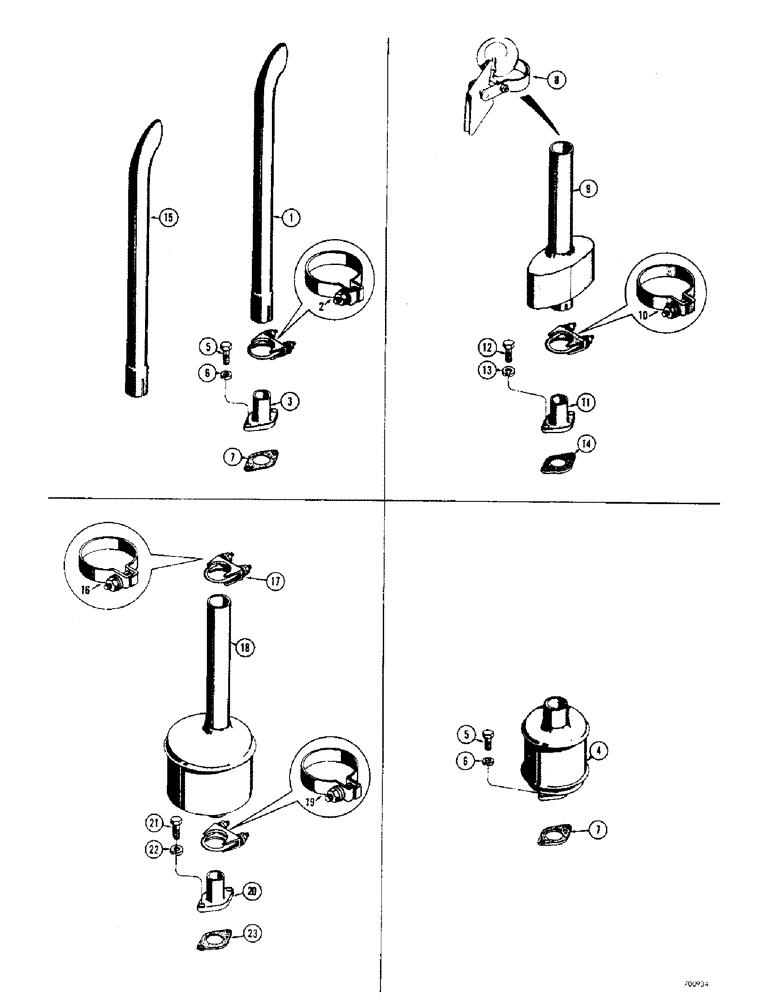

Запчасти Case 310G (132) - EXHAUST SYSTEM - GAS (05) - UPPERSTRUCTURE CHASSIS

1

D33503

PIPE

- exhaust, ceramic coated (Use with D22864 outlet or D35106 muffler only)

1шт.

2

74768

X,2-1/2" ID

CLAMP - exhaust pipe (When stock is exhausted, use A13240 clamp)

1шт.

A13240

CLAMP,2-5/8" ID

- exhaust pipe (Cadmium plated)

1шт.

3

D22864

OUTLET

- exhaust

1шт.

4

D35106

MUFFLER

- exhaust, under hood (Optional)

1шт.

5

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

6

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

7

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.

8

A33742

CAP

- rain, D27275 muffler

1шт.

9

D27275

MUFFLER

- exhaust, under hood (Optional) When stock is exhausted use 1 - D35106 muffler, 1 - D33503 exhaust clamp)

1шт.

10

74768

X,2-1/2" ID

CLAMP - muffler (When stock is exhausted, use A13240 pipe and related parts

1шт.

A13240

CLAMP,2-5/8" ID

- muffler (Cadmium plated)

1шт.

11

D22864

OUTLET

- exhaust

1шт.

12

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

13

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

14

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.

15

D33535

PIPE

- exhaust, ceramic coated (Optional) use with D45256 muffler only

1шт.

16

G45767

X

CLAMP - exhaust pipe (When stock is exhausted use D38328 clamp)

1шт.

17

D38328

X

CLAMP - exhaust pipe (Zinc plated)

1шт.

18

D45256

MUFFLER,W/ Spark Arrester

- exhaust, spark arresting (Optional)

1шт.

19

74768

X,2-1/2" ID

CLAMP - muffler (When stock is exhausted use A13240 clamp)

1шт.

A13240

CLAMP,2-5/8" ID

- muffler (Cadmium plated)

1шт.

20

D22864

OUTLET

- exhaust

1шт.

21

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

22

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

23

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.
