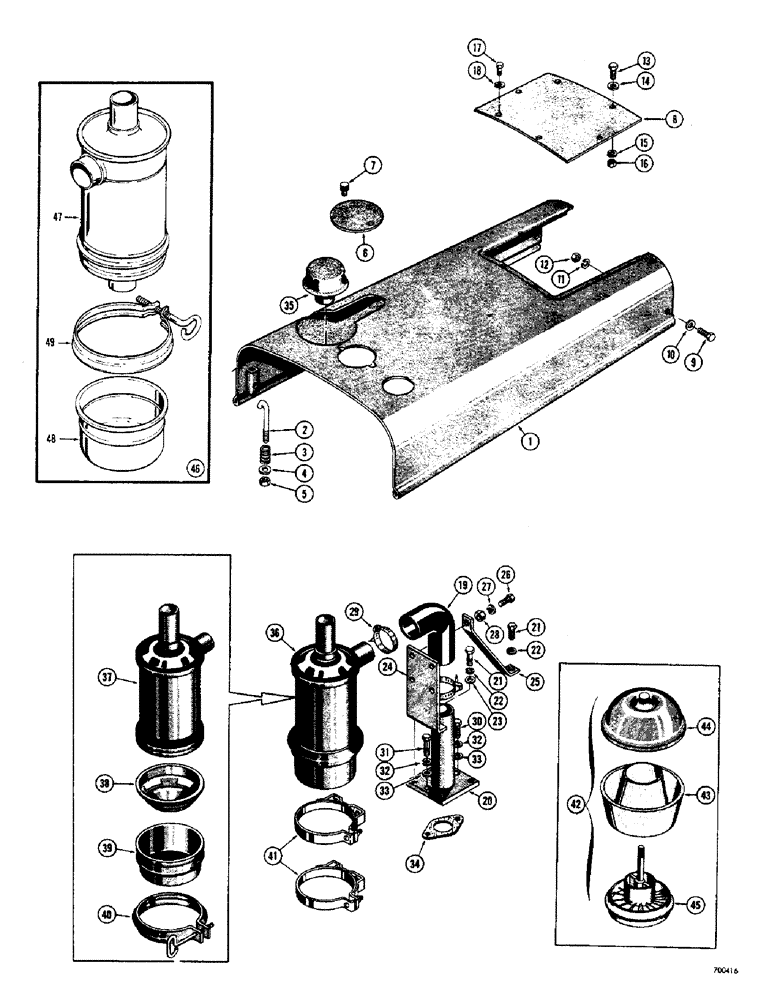

Запчасти Case 310G (130) - HOOD AND AIR CLEANER - DIESEL (05) - UPPERSTRUCTURE CHASSIS

1

D44189

HOOD - engine

1шт.

2

D33958

BOLT

- hold down, hood

2шт.

3

F60482

SPRING

- hood hold down bolt

2шт.

4

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

5

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

2шт.

6

D29977

CAP - hood

1шт.

7

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

HHCS - 1/4" - 28 NF x 1/2" (Zinc plated)

2шт.

8

D29976

COVER - access

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

10

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

11

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

195-525

WASHER,3/8", SAE

- plain (3/8") zinc plated

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

17

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

HHCS - 1/4" - 28 NF x 1/2" (Zinc plated)

4шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

19

D28030

ELBOW UNION

HOSE - air cleaner to air inlet

1шт.

20

D27998

INLET - air

1шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

23

195-22

WASHER

- plain (3/8")

2шт.

24

D27995

BRACKET - mounting, air cleaner

1шт.

25

D27997

BRACKET - support, air cleaner

2шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

27

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

28

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

29

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

32

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

33

195-22

WASHER

- plain (3/8")

2шт.

34

D22670

GASKET

- air inlet

1шт.

35

D22685

CAP

- air cleaner

1шт.

36

D22671

X

AIR CLEANER - four piece (When stock is exhausted, use D48416 filter for service), Includes: Ref. 37 - 40

1шт.

37

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

38

G46324

CUP

- oil, inner

1шт.

39

G46325

CUP

- oil, outer

1шт.

40

G45153

CLAMP

- retaining, oil cup

1шт.

41

34347

BAND

- mounting, air cleaner

2шт.

42

D20604

PRECLEANER

PRE-CLEANER - air (Optional), Includes: Ref. 43 - 45

1шт.

43

D30675

BODY

- pre-cleaner

1шт.

44

D30676

COVER

- pre-cleaner

1шт.

45

D30677

SLEEVE

- pre-cleaner

1шт.

46

D48416

CLEANER

AIR CLEANER - three piece, Includes: Ref. 47 - 49

1шт.

47

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

48

D48871

CUP

- air cleaner

1шт.

49

G45153

CLAMP

- retaining, cup

1шт.
