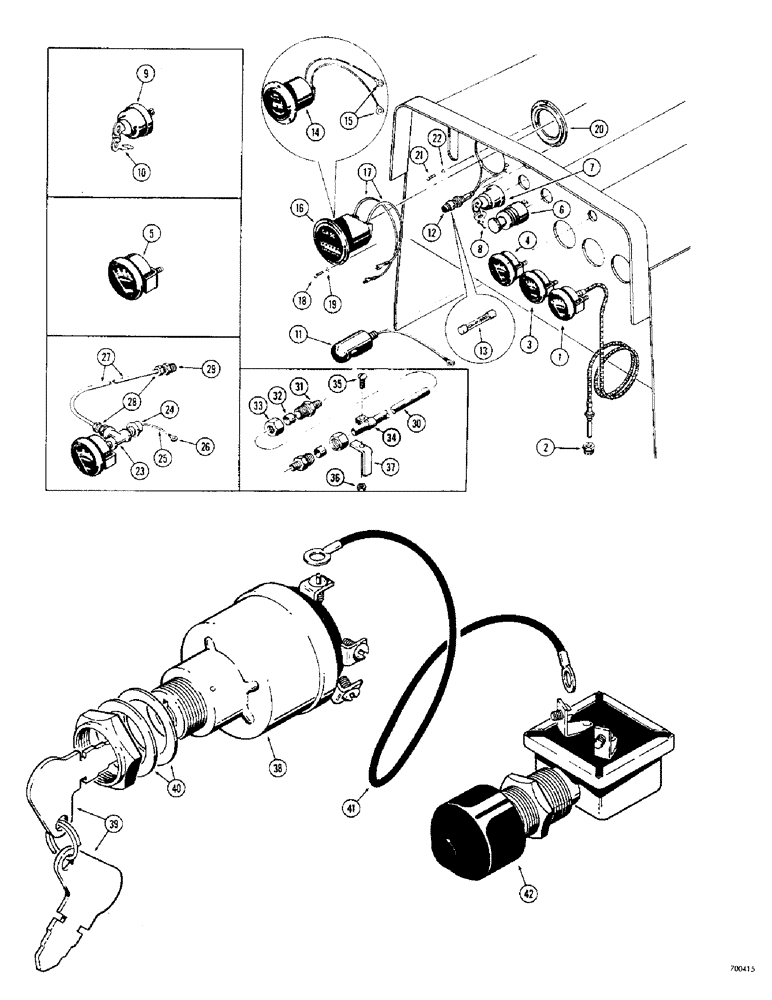

Запчасти Case 310G (126) - INSTRUMENT PANEL (05) - UPPERSTRUCTURE CHASSIS

1

11284

ELECTRICAL GAUGE

GAUGE - temperature, Includes: Ref. 2

1шт.

2

D26015

FITTING

ADAPTER - temperature gauge heat bulb

1шт.

3

R18748

AMMETER

1шт.

4

D26894

X

GAUGE - oil pressure (Gas Models only) when stock is exhausted, use A30326

1шт.

4

A30326

GAUGE

- oil pressure (Gas Models only)

1шт.

5

D22853

GAUGE

- oil pressure (Diesel Models only)

1шт.

6

R22699

X

SWITCH - light (When stock is exhausted, use 1 - D35065 and 2 - A56120)

1шт.

D35065

SWITCH

- light

1шт.

A56120

WASHER

- special

2шт.

7

A11373

SWITCH

- ignition & starter (Gas Models only), Includes: Ref. 8

1шт.

8

A20346

KEY

- ignition switch

1шт.

9

D29292

SWITCH - electrical (Diesel Models only) when stock is exhausted, use D15156 kit, Includes: Ref. 10

1шт.

10

A20346

KEY

- electrical switch

2шт.

11

D33212

INTERIOR LIGHT

LIGHT - dash (Parts list figure 76)

1шт.

12

D23834

HOLDER

- fuse (Includes 1-25 AGC fuse), Includes: Ref. 13

2шт.

13

223-25

FUSE,25 Amp, Type 3AG

- AGC, 25 amp. (1/4" dia. x 1-1/4" long)

1шт.

14

33481

X

METER - engine hour (When stock is exhausted, use D39286 engine hour meter kit)

1шт.

15

54772R2

TERMINAL CONNECTOR

TERMINAL - wire (Use with 33481 engine hour meter only)

2шт.

D39286

GAUGE

KIT - engine hour meter, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

METER - engine hour

1шт.

17

D39285

ELECTRICAL WIRE

LEAD - wire (36" long)

2шт.

D39284

KIT

PACKET - mounting hardware, Includes: Ref. 18 and 19

1шт.

18

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - no. 6 - 32 NC x 1/2"

3шт.

19

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

20

D35079

DAMPER

DAMPNER - vibration (Used on late production models)

1шт.

21

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - no. 6 - 32 NC x 1/2" (Zinc plated) used with D35079 dampner

3шт.

22

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, , Used with D35079 dampner #6

3шт.

23

221-421

TEE,1/8" NPT

- pipe () 1/8" NPT

1шт.

D28798

SWITCH

OIL PRESSURE SWITCH ASSEMBLY, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

SWITCH - ol pressure

1шт.

25

D28797

ELECTRICAL WIRE

WIRE - oil pressure switch

1шт.

26

54772R2

TERMINAL CONNECTOR

TERMINAL - eyelet (D28797 wire)

1шт.

27

D29789

X

LINE - oil pressure, copper (When stock is exhausted, use 1 - D36961 and 2 - D35816)

1шт.

28

37388

SPRING

NUT - line, brass (Used with D29789 line only)

2шт.

29

37389

SPRING

CONNECTOR - tube, brass (Used with D29789 line only)

2шт.

30

D36961

TUBE

- Nylaflow, oil pressure gauge (Diesel Models only)

1шт.

D36944

TUBE

- Nylaflow, oil pressure gauge (Gas Models only)

1шт.

31

D35816

CONNECTOR, ELEC

CONNECTOR - tube, male, Includes: Ref. 32 and 33

2шт.

32

D37176

SLEEVE

1шт.

33

D37362

TUBE NUT

1шт.

34

D39234

CLAMP - tube, Nylon

1шт.

35

169-76

RHMS - no. 8 - 32 NC x 7/16"

1шт.

36

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex. (No. 8 - 32 NC)

1шт.

37

G11358

BRACKET - tube mount

1шт.

D15156

IGNITION SWITCH

KIT - ignition switch (Diesel Models only), Includes: Ref. 38 - 42

1шт.

38

D35092

SWITCH

- electrical, Includes: Ref. 39

1шт.

39

D36822

KEY

- set of two

1шт.

40

A56120

WASHER

- spacer

2шт.

41

33705

GLASS

WIRE - jumper

1шт.

42

D40459

SWITCH

- electrical, starter

1шт.
