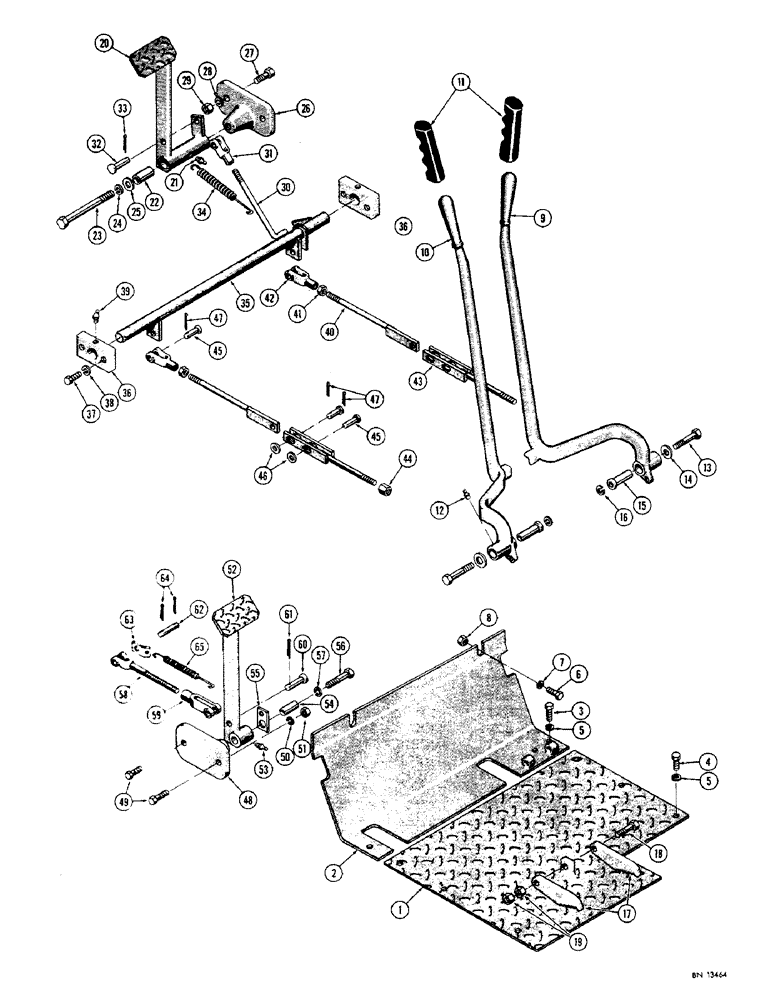

Запчасти Case 310G (116) - FLOOR PLATE, STEERING LEVERS, CLUTCH AND BRAKE PEDALS (05) - UPPERSTRUCTURE CHASSIS

1

D33230

PLATE - floor, rear (Used on models without transmission dipstick and filler tube kit. When stock is exhausted, use D38925)

1шт.

D38925

PLATE - floor, rear (Used on models with transmission dipstick and filler tube kit)

1шт.

2

D33226

FLOOR

PLATE - floor front

1шт.

3

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

5

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

8шт.

6

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

8

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

9

D33558

LEVER - steering, R.H.

1шт.

10

D33559

LEVER

- steering, L.H.

1шт.

11

31400

CLAMP

GRIP - steering lever

2шт.

12

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight (1/4" drive type)

2шт.

13

13-960

BOLT,Hex, 9/16" - 12 x 3-3/4", Gr 5

HHCS - 9/16" - 12 NC x 3-3/4"

2шт.

14

195-37

WASHER,9/16"

- plain () 9/16"

2шт.

15

35504

BUSHING

- steering lever

2шт.

16

92-9

BEARING WASHER,9/16"

med. sect. 9/16"

2шт.

17

33604

RATCHET

- steering lever

2шт.

18

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

20

D33194

PEDAL - brake

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" PT)

1шт.

22

11031

SPACER

BUSHING - brake pedal

3шт.

23

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

1шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25

195-41

WASHER,5/8"

1шт.

26

D43843

BRACKET - mounting, brake pedal

1шт.

27

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

28

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

2шт.

29

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

2шт.

30

D25249

ROD

- brake pedal to brake shaft

1шт.

31

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - end, adjustable

1шт.

32

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

1шт.

33

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

34

11469

SPRING

- return, brake pedal

1шт.

35

D33560

SHAFT - brake

1шт.

36

D25269

BLOCK

BEARING - block, brake shaft

2шт.

37

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

38

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

39

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

2шт.

40

D33562

LINK

- brake shaft to steering lever

2шт.

41

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

2шт.

42

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end, adjustable

2шт.

43

D33561

LINK

- steering, Serial Range: lever-transmission

2шт.

44

11471

NUT

- hex., special (3/8" - 24 NF)

2шт.

45

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

6шт.

46

195-22

WASHER

- plain

4шт.

47

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

48

D43843

BRACKET - mounting, clutch pedal

1шт.

49

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

50

92-7

LOCK WASHER,7/16"

2шт.

51

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

2шт.

52

D33188

PEDAL - clutch

1шт.

53

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

54

11031

SPACER

BUSHING - clutch pedal

1шт.

55

11470

BEARING

ANCHOR - clutch return spring

1шт.

56

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

57

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

58

D26521

ROD - clutch

1шт.

59

213-50

ADJUSTABLE CLEVIS,1/2"-20 x 4 3/16"

YOKE - end, adjustable

1шт.

60

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

1шт.

61

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

62

30623

KIT

PIN - yoke

1шт.

63

NLS

NO LONGER SERVICED

- clutch return spring

1шт.

64

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

65

11469

SPRING

- return, clutch pedal

1шт.
