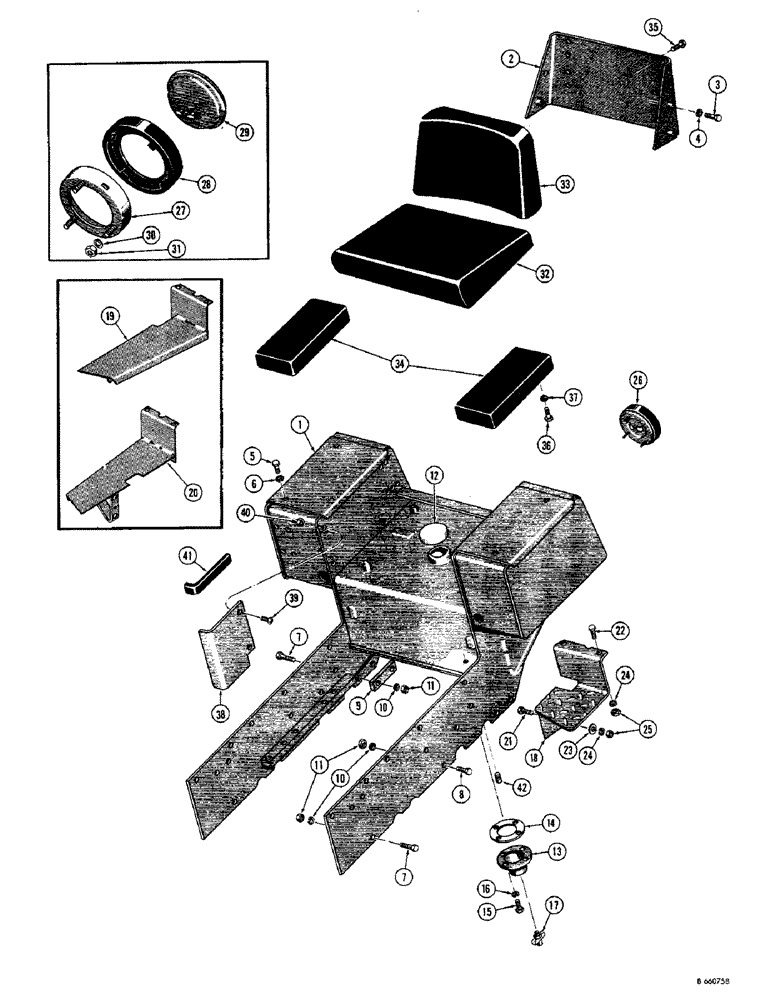

Запчасти Case 310G (114) - SEAT, TANK AND STEP PLATE (05) - UPPERSTRUCTURE CHASSIS

1

D33234

SEAT AND TANK

1шт.

2

D33263

SUPPORT - back, adjustable

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

4

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

5

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

6шт.

8

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

9

D33291

SPACER - mounting, seat and tank

2шт.

10

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

8шт.

11

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

8шт.

12

CASE10731

FILLER CAP

CAP - filler

1шт.

13

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - fuel tank drain

1шт.

14

35621

GASKET

- drain cover

1шт.

15

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8" - 24 NF x 7/8"

4шт.

16

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

17

217-102

PLUG, DRAIN

DRAINCOCK - fuel tank (For service, use 217-81)

1шт.

217-81

VALVE

DRAINCOCK - fuel tank

1шт.

18

D33200

PLATE - step (Loader Models only)

1шт.

19

D33995

PLATE - step, L.H. (Drawbar and Dozer Models)

1шт.

20

D33996

PLATE - step, R.H. (Drawbar and Dozer Models)

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(2 used on Loader Models - 4 used on Drawbar and Dozer Models) Hex, 3/8"-16 x 1", G5, Full Thd

2-4шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(2 used on loader models - 4 used on drawbar and dozer models) Hex, 3/8"-16 x 3/4", G5, Full Thd

2-4шт.

23

195-25

WASHER,3/8"

- plain () 2 used on Loader Models - 4 used on Drawbar and Dozer Models 3/8"

2-4шт.

24

92-6

LOCK WASHER,3/8"

med. sect., 4 used on Loader Models - 8 used on Drawbar and Dozer Models 3/8"

2-8шт.

25

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) 4 used on Loader Models - 8 used on Drawbar and Dozer Models

4-8шт.

26

D30243

LAMP

LIGHT - tail, Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

FRAME - lamp retaining

1шт.

28

D31441

RETAINER

- rubber (Use only with Guide Lamp) see A25213

1шт.

A25213

RETAINER

- rubber (Use only with Hobbs)

1шт.

29

D33182

LAMP

- sealed unit

1шт.

30

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

31

129-17

NUT,Hex, #10 - 24

NUT - hex. (No. 10-24 NC) zinc plated

3шт.

32

D36612

CUSHION

- seat

1шт.

33

D44169

CUSHION

- seat back

1шт.

34

D27693

ARMREST

CUSHION - arm rest

2шт.

35

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

38

D33498

SHIELD - valve heat

1шт.

39

174-206

RHMS - 3/8" - 24 NF x 1" (Zinc plated)

2шт.

40

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

2шт.

41

D33500

LINING

TRIM - rubber

1шт.

42

221-12

PLUG,Sq Hd, 1/4"-18

- pipe (1/4" NPT)

1шт.
