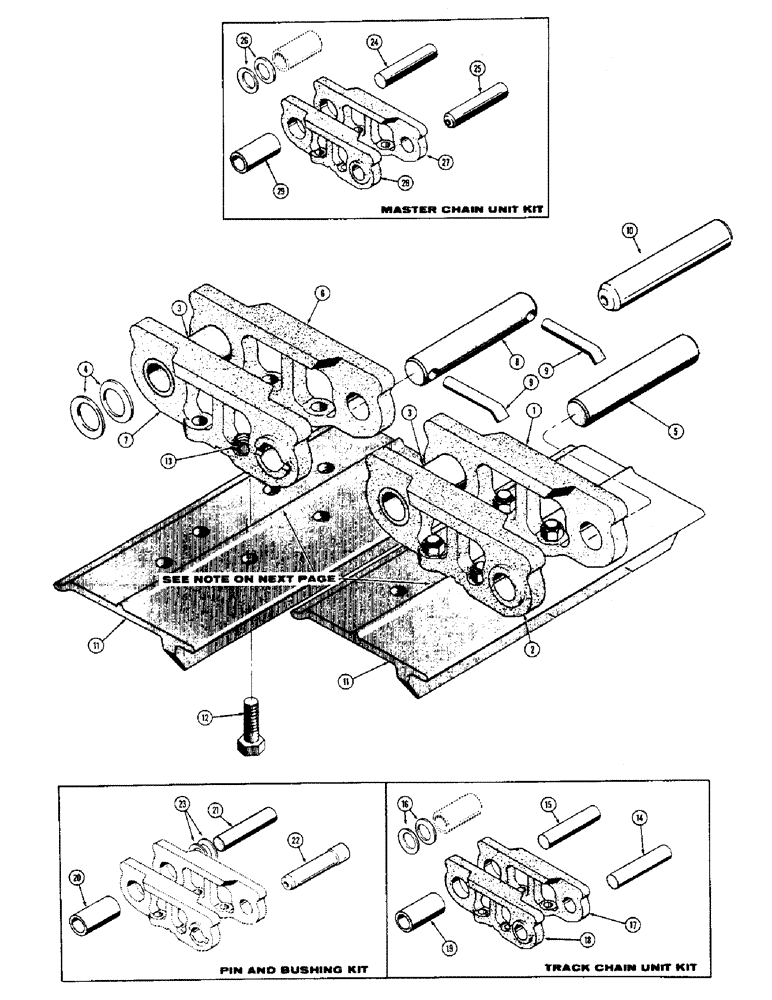

Запчасти Case 310G (144) - TRACK CHAINS (04) - UNDERCARRIAGE

5482

CHAIN ASSEMBLY - 16 unit, one per side (Non-sealed) when stock is exhausted, use D48671 chain for service, Includes: Ref. 1 - 13

2шт.

D48671

CHAIN (AG)

CHAIN ASSEMLBY - 16 unit, one per side (Sealed chain), Includes: Ref. 1 - 13

2шт.

D11810

CHAIN ASSEMBLY - 17 unit, one per side (Non-sealed chain) when stock is exhaused, use D48670 chain for service, Includes: Ref. 1 - 13

2шт.

D48670

TRACK CHAIN

CHAIN ASSEMBLY - 17 unit, one per side (Sealed chain), Includes: Ref. 1 - 13

2шт.

1

30638

X

LINK - track chain (R.H.) when stock is exhausted, use D43909 link for service

16шт.

1

D43909

DRAG LINK

LINK - track chain (R.H.)

16шт.

2

R41049

DRAG LINK

LINK - track chain (L.H.) when stock is exhausted, use D43908 link for service

17шт.

2

D43908

LINK

- track chain (L.H.)

17шт.

3

32830

BUSHING

- track, non-sealed chain only (When stock is exhausted use D48669 bushing and 4 - D48668 seals for service)

17шт.

3

D48669

BUSHING

- track, sealed chain

17шт.

4

D48668

SEALING WASHER

SEAL - washer, sealed chain only

68шт.

5

32831

PIN

- track, standard

16шт.

6

R41050

LINK

- master, R.H. (When stock is exhausted, use D43909 link for service)

1шт.

6

D43909

DRAG LINK

LINK - master, R.H.

1шт.

7

33286

LINK

- master, L.H. (When stock is exhausted, use D43908 link for service)

1шт.

7

D43908

LINK

- master, L.H.

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - master (Order D41582 pin or D21012 kit)

1шт.

9

CASCASCASCAS32995

PIN - lock, master (Used with 33285 and 33286 links only) when stock is exhausted, use D41582 pin for service

2шт.

10

D41582

AXLE PIN,25.2mm OD x 132.56mm L

PIN - master, lock

1шт.

11

REF

INSTRUCTION

SHOE - track (See figure 148 for proper shoes)

66шт.

12

D41490

BOLT

- special

264шт.

13

D29712

SPECIAL NUT

- special

264шт.

D21014

KIT

- track chain unit, non-sealed chain (When stock is exhausted use D48935 kit), Includes: Ref. 14 - 19

62шт.

D48935

DRAG LINK

KIT - track chain unit, sealed chain, Includes: Ref. 14 - 19

62шт.

14

32831

PIN

- track, standard, chain unit

1шт.

15

32836

PIN

- track (.003" oversize), chain unit

1шт.

16

D48668

SEALING WASHER

SEAL - washer (D48935 kit only), track chain unit

8шт.

34571

KIT

UNIT - track chain, non-sealed chain (When stock is exhausted, use D49179 unit and 8 - D48668 seals), Includes: Ref. 17 - 19

1шт.

D49179

LINK

UNIT - track chain, sealed chain, Includes: Ref. 17 - 19

1шт.

17

D43909

DRAG LINK

LINK - track chain (R.H.), unit

1шт.

18

D43908

LINK

- track chain (L.H.), unit

1шт.

19

32830

BUSHING

- track, non-sealed (D21014 kit only), chain unit

1шт.

19

D48669

BUSHING

- track, sealed (D49179 kit only), chain unit

1шт.

D11884

KIT

- pin and bushing, non-sealed track (When stock is exhausted, use D48934 kit), track chain unit, Includes: Ref. 20 - 23

1шт.

D48934

PIN

KIT - pin and bushing, sealed track, chain unit, Includes: Ref. 20 - 23

1шт.

20

NLS

NO LONGER SERVICED

- track, non-sealed (D11884 kit only), master chain unit

66шт.

20

D48669

BUSHING

- track, sealed (D48934 kit only), master chain unit

66шт.

21

32836

PIN

- track, service (.003" oversize), master chain unit

62шт.

22

D43542

AXLE PIN

PIN - track, master (.003" oversize), master chain unit

4шт.

23

D48668

SEALING WASHER

SEAL - washer (D48934 kit only), master chain unit

264шт.

D21013

KIT

- master, non-sealed track (When stock is exhausted, use D48932 kit), chain unit, Includes: Ref. 24 - 29

4шт.

D48932

LINK

KIT - master, sealed track, chain unit, Includes: Ref. 24 - 29

4шт.

24

32836

PIN

- track, service (.003" oversize), master chain unit

1шт.

25

D41582

AXLE PIN,25.2mm OD x 132.56mm L

PIN - track, master, chain unit

1шт.

26

D48668

SEALING WASHER

SEAL - washer (D48932 kit only), master chain unit

8шт.

D34589

UNIT - master, non-sealed (When stock is exhausted, use D49179 unit and 8 - D48668 seals), chain, Includes: Ref. 27 - 29

1шт.

D49179

LINK

UNIT - master, sealed, chain, Includes: Ref. 27 - 29

1шт.

27

D43909

DRAG LINK

LINK - track chain (R.H.), master unit

1шт.

28

D43908

LINK

- track chain (L.H.), master unit

1шт.

29

32830

BUSHING

- link, non-sealed track (D21013 kit only), master chain unit

1шт.

29

D48669

BUSHING

- link, sealed track (D48932 kit), master chain unit

1шт.

D21012

PIN

KIT - master pin, chain unit, Includes: Ref. 8 and 9

4шт.

8

NSS

NOT SOLD SEPARAT

PIN - master, kit

1шт.

9

CASCASCASCAS32995

PIN - lock, master, kit

2шт.
