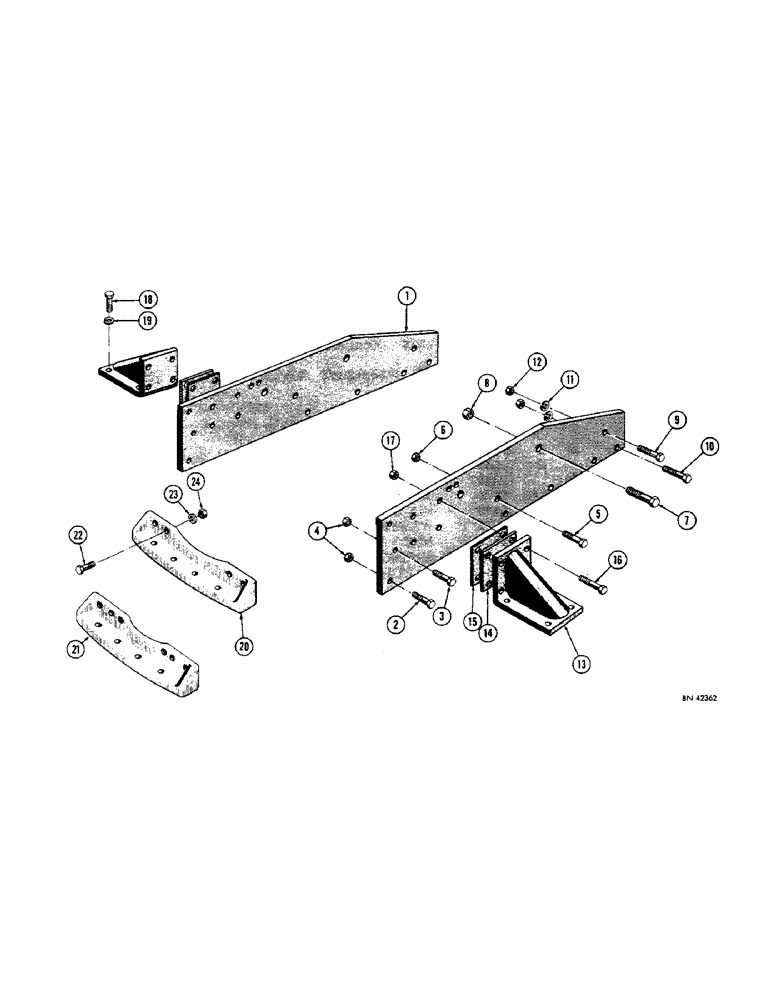

Запчасти Case 310G (138) - SIDE PLATE AND DRAWBAR GUIDE (04) - UNDERCARRIAGE

1

D29735

PLATE - side

2шт.

2

D29721

BOLT

- body fit, side plate to inner final drive housing (3/4" - 16 NF x 2-1/2")

4шт.

3

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - side plate to inner final drive housing (3/4" - 16 NF x 2-1/2")

2шт.

4

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4" - 16 NF)

6шт.

5

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - side plate to torque tube (3/4" - 16 NF x 2-3/4")

2шт.

6

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4" - 16 NF)

2шт.

7

33047

BOLT,Hex, 1" - 14 x 3 3/32"

- body fit, side plate to torque tube (1" - 14 NF x 3-3/32")

4шт.

8

232-46116

LOCK NUT,1"-14, GC

NUT - lock (1" - 14 NF)

4шт.

9

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Side plate to track channel Hex, 3/4"-10 x 2 1/2", G5

2шт.

10

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Side plate to track channel Hex, 3/4"-10 x 3", G5

2шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

12

25-1012

NUT,3/4"-10, G5

4шт.

13

D29059

BRACKET - mounting, track frame

2шт.

14

D29758

SHIM,.1875" Thk

Mounting bracket .1875" Thk

1шт.

15

D29759

SHIM,.0747" Thk

Mounting bracket .0747" Thk

1шт.

16

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - mounting bracket to side plate (3/4" - 16 NF x 3")

8шт.

17

231-46112

LOCK NUT,3/4"-16, GB

NUT - hex. (3/4" - 16 NF)

8шт.

18

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - mounting bracket to track frame (3/4" - 16 NF x 1-3/4")

8шт.

19

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

20

13103

GUIDE - drawbar, when stock is exhausted use D40387

1шт.

21

D35674

GUIDE - drawbar (Model 9 winch only)

1шт.

21

D40387

GUIDE - drawbar (All models except winch models)

1шт.

22

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

25-1010

NUT,5/8"-11, G5

4шт.
