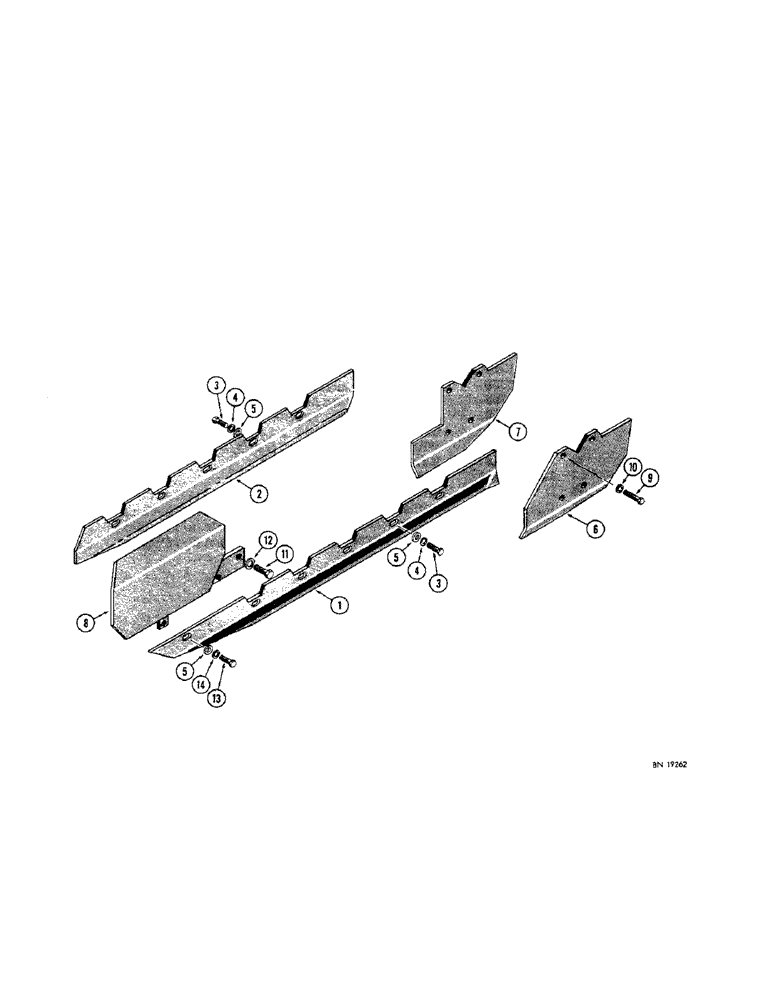

Запчасти Case 310G (138[1]) - ROCK GUARDS (04) - UNDERCARRIAGE

1

D29063

ROCK GUARD - outer, R.H.

1шт.

2

D29065

ROCK GUARD - inner, R.H.

1шт.

D29064

ROCK GUARD - outer, L.H.

1шт.

D29066

ROCK GUARD - inner, L.H.

1шт.

3

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2" - 20 NF x 1-1/4"

20шт.

4

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

20шт.

5

195-33

WASHER,1/2"

- flat () Use with slotted rockguards only 1/2"

22шт.

6

D29067

ROCK GUARD - outer, idler (R.H.)

1шт.

D29068

ROCK GUARD - outer, idler (L.H.)

1шт.

7

D29069

ROCK GUARD - inner, idler (R.H.)

1шт.

D29070

ROCK GUARD - inner, idler (L.H.)

1шт.

8

D29071

ROCK GUARD - sprocket, R.H.

1шт.

D29072

ROCK GUARD - sprocket, L.H.

1шт.

9

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

11

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

2шт.

12

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.
