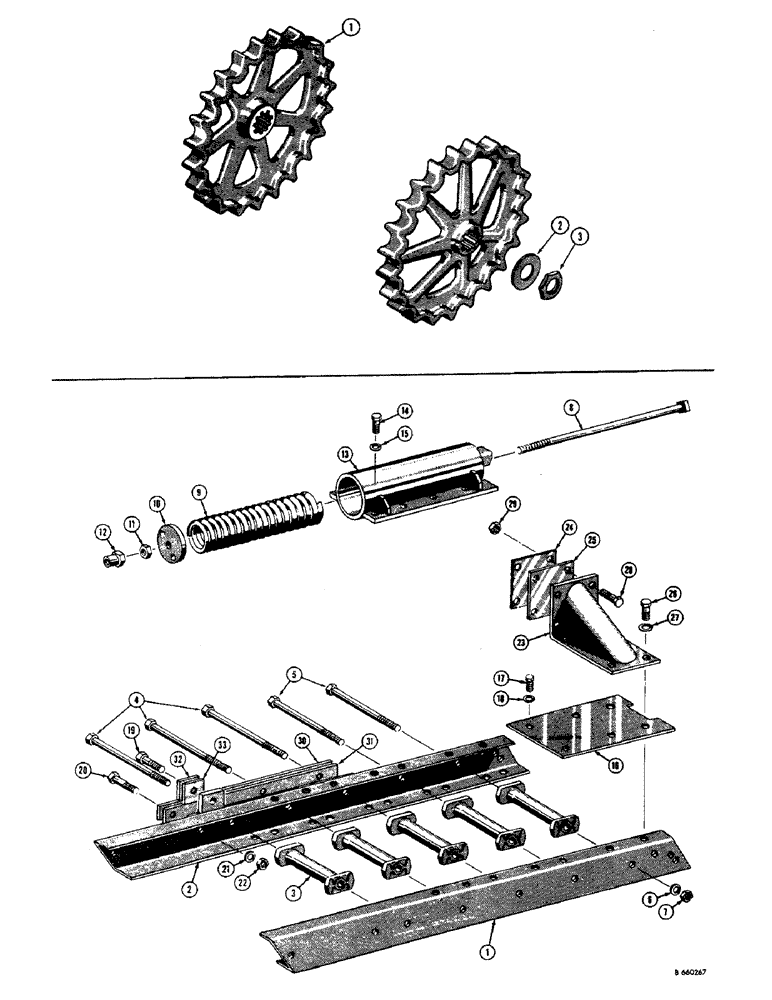

Запчасти Case 310G (136) - DRIVE SPROCKETS (04) - UNDERCARRIAGE

1

D46989

SPROCKET ASSY.

SPROCKET - drive (Standard)

2шт.

D20407

SPROCKET - drive, snow (Optional)

2шт.

2

D29125

WASHER,57.94mm ID x 114.3mm OD x 1.59mm Thk

- keeper, final drive sprocket nut

2шт.

3

D29126

LOCK NUT

- lock, final drive sprocket

2шт.

1

D29052

CHANNEL - track, L.H. outer, frame and recoil spring

1шт.

D29051

CHANNEL - track, R.H. outer, frame and recoil spring

1шт.

2

D29050

CHANNEL - track, L.H. inner, frame and recoil spring

1шт.

D29049

CHANNEL - track, R.H. inner, frame and recoil spring

1шт.

3

NLS

NO LONGER SERVICED

SPACER - track channel, frame and recoil spring

10шт.

4

14-12200

BOLT,Hex, 3/4" - 16 x 12-1/2", Gr 5

HHCS - 3/4" - 16 NF x 12-1/2", track frame and recoil spring

6шт.

5

D23459

HHCS - special, track frame and recoil spring

4шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Track frame and recoil spring 3/4"

10шт.

7

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF), track frame and recoil spring

10шт.

D29056

X

SPRING - recoil, complete, track frame, Includes: Ref. 8 - 13

2шт.

8

D20845

ADJUSTMENT SCREW

- track adjusting, track frame and recoil spring

1шт.

9

D26084

SPRING

- recoil (When stock is exhausted, use D39498), track frame

1шт.

D39498

SPRING

- recoil, track frame

1шт.

10

D20844

NUT

- tension adjusting, track frame and recoil spring

1шт.

11

25-1416

NUT,Jam, 1"-8, G5

- hex, jam (1" - 8 NC), track frame and recoil spring

1шт.

12

D20843

NUT,1" - 8

- track adjusting, track frame and recoil spring

1шт.

13

D29057

HOUSING - recoil spring, track frame

1шт.

14

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

Track frame and recoil spring Hex, 5/8"-18 x 1 1/2", G5

12шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Track frame and recoil spring 5/8"

12шт.

16

D29062

PAN - mud, track frame and recoil spring

2шт.

17

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1", track frame and recoil spring

4шт.

18

92-8

LOCK WASHER,1/2"

med. sect., track frame and recoil spring 1/2"

4шт.

19

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Track frame and recoil spring Hex, 3/4"-10 x 2 1/2", G5

2шт.

20

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Track frame and recoil spring Hex, 3/4"-10 x 3", G5

2шт.

21

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Track frame and recoil spring 3/4"

4шт.

22

25-1012

NUT,3/4"-10, G5

Track frame and recoil spring 3/4"-10, G5

4шт.

23

D29059

BRACKET - mounting, track frame, recoil spring

2шт.

24

D29758

SHIM,.1875" Thk

Mounting bracket , Track frame and recoil spring .1875" Thk

1шт.

25

D29759

SHIM,.0747" Thk

Mounting bracket, Track frame and recoil spring .0747" Thk

1шт.

26

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4" - 16 NF x 1-3/4", track frame and recoil spring

8шт.

27

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Track frame and recoil spring 3/4"

8шт.

28

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4" - 16 NF x 3", track frame and recoil spring

8шт.

29

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4" - 16 NF), track frame and recoil spring

8шт.

30

D30050

SHIM,.0747" Thk

Track channel to side plate, Track frame and recoil spring .0747" Thk

1шт.

31

D30051

SHIM,.1875" Thk

Track channel to side plate, Track frame and recoil spring .1875" Thk

1шт.

32

D30052

SHIM,.0747" Thk

Track channel to side plate, Track frame and recoil spring .0747" Thk

1шт.

33

D30053

SHIM,.1875" Thk

Track channel to side plate, Track frame and recoil spring .1875" Thk

1шт.
