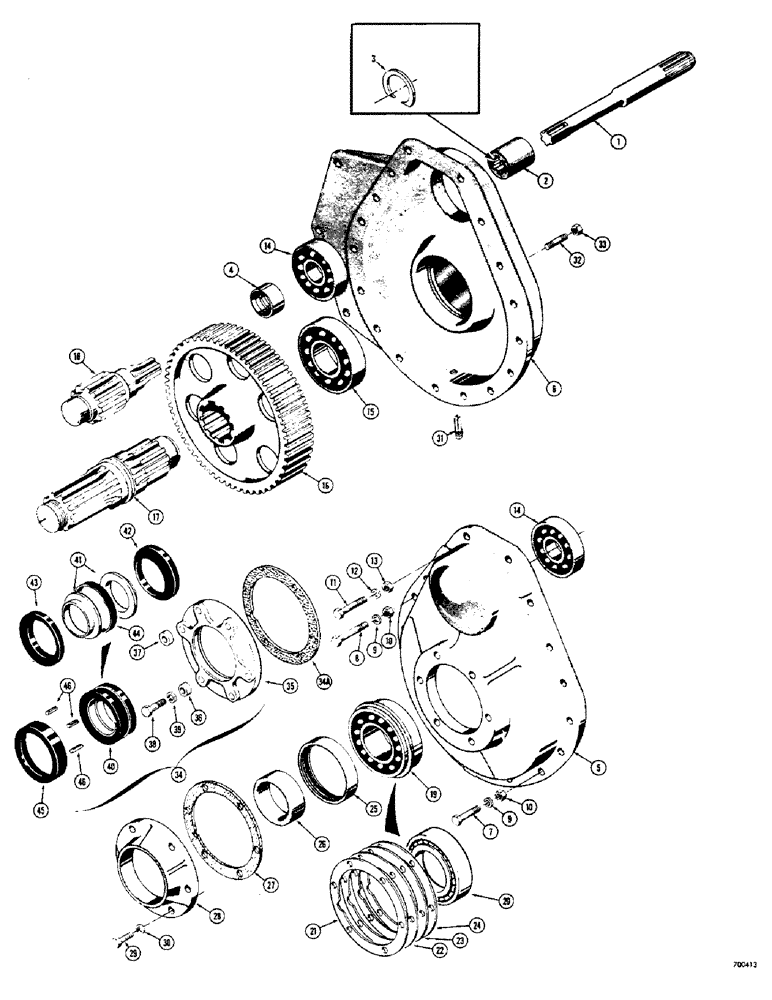

Запчасти Case 310G (070) - FINAL DRIVE AND AXLE SHAFT (03) - TRANSMISSION

1

D31519

SHAFT

- axle (48" gauge only) 13-1/4" long, splines 10 x 10, 11845 shaft for 48" is 13-3/16" long, splines 6 x 10

2шт.

1

D50193

SHAFT - axle (60" gauge only) 19-3/16" long, splines 6 x 10

2шт.

1

D50194

SHAFT - axle (72" gauge only) 25-3/16" long, splines 6 x 10

2шт.

2

D32721

COUPLING

- final drive (48" gauge only)

2шт.

2

51200026

COUPLING

- final drive (60" and 72" gauge only)

2шт.

3

D32722

RING, SNAP

RING - retaining

2шт.

4

D32723

SPACER

- final drive

2шт.

5

D24658

HOUSING

- final drive, outer

2шт.

6

D29737

HOUSING - final drive, inner (L.H.)

1шт.

6

D29736

HOUSING - final drive, inner (R.H.)

1шт.

7

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

18шт.

8

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

HHCS - 7/16" - 14 NC x 2"

10шт.

9

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

28шт.

10

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

28шт.

11

D24688

BOLT

BOLT - special

6шт.

12

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

6шт.

13

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

14

40002

BALL BEARING

- ball, final drive pinion

4шт.

15

40003

BEARING

- ball, final drive shfat (Inner)

2шт.

16

CAS11833

GEAR WHEEL

GEAR - final drive

2шт.

17

CAS11853

SHAFT

- final drive

2шт.

18

D31514

SHAFT

- pinion, final drive (48" gauge)

2шт.

18

51200027

SHAFT

- pinion, final drive (60" and 72" gauge)

2шт.

19

D14979

BEARING

BEARING - ball, final drive shaft (Outer) for service use D14979 kit

2шт.

D14979

BEARING

KIT - bearing, Includes: Ref. 20 - 24

2шт.

20

D46981

BALL BEARING

BEARING - ball, final drive shaft (Outer)

1шт.

21

D46983

SHIM,.005" Thk

1шт.

22

D46984

SHIM

- .010"

1шт.

23

D46985

SHIM,.020" Thk

1шт.

24

D46986

SHIM,.002" Thk

If used .002" Thk

1шт.

25

D29517

SEAL

- oil, final drive shaft

2шт.

26

51200024

SPACER

- final drive shaft

2шт.

27

CAS11828

GASKET

- seal retainer

2шт.

28

11827

RETAINER

- seal, final drive shaft

2шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

30

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

12шт.

31

D21396

PLUG, DRAIN

PLUG - magnetic, hex. socket head (1/2" NPT)

4шт.

32

R29874

STUD

- mounting, final drive

16шт.

33

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8" - 18 NF)

16шт.

34

D14190

SEAL

KIT - face seal, D14190 (service optional), Includes: Ref. 34A - 46

1шт.

34a

CAS11828

GASKET

- seal retainer, D14190 face kit (service optional)

1шт.

35

D43356

RETAINER

- seal, D14190 face kit (service optional)

1шт.

36

D43408

SPACER

- guard, D14190 face seal kit (service optional)

5шт.

37

D43608

SPACER

- guard, D14190 face seal kit (service optional)

1шт.

38

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

D14190 face seal kit (service optional) Hex, 3/8"-16 x 2", G5

6шт.

39

92-6

LOCK WASHER,3/8"

med. sect., D14190 face seal kit (service optional) 3/8"

6шт.

40

D43411

SEAL

- face, D14190 kit (service optional), Includes: Ref. 41 - 46

1шт.

41

NSS

NOT SOLD SEPARAT

BODY - seal, D14190 face kit (service optional)

1шт.

D44075

SEAL

KIT - seal, D14190 face kit (service optional, Includes: Ref. 42 - 44

1шт.

42

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner, D14190 face kit (service optional)

1шт.

43

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer, D14190 face kit (service optional)

1шт.

44

NSS

NOT SOLD SEPARAT

RETAINER - plastic, D14190 face seal kit (service optional)

1шт.

45

D43410

RETAINER

- seal, outer, D14190 face kit (service optional)

1шт.

46

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , D14190 face seal kit (service optional) 3/16" x 5/8", Slotted

3шт.
