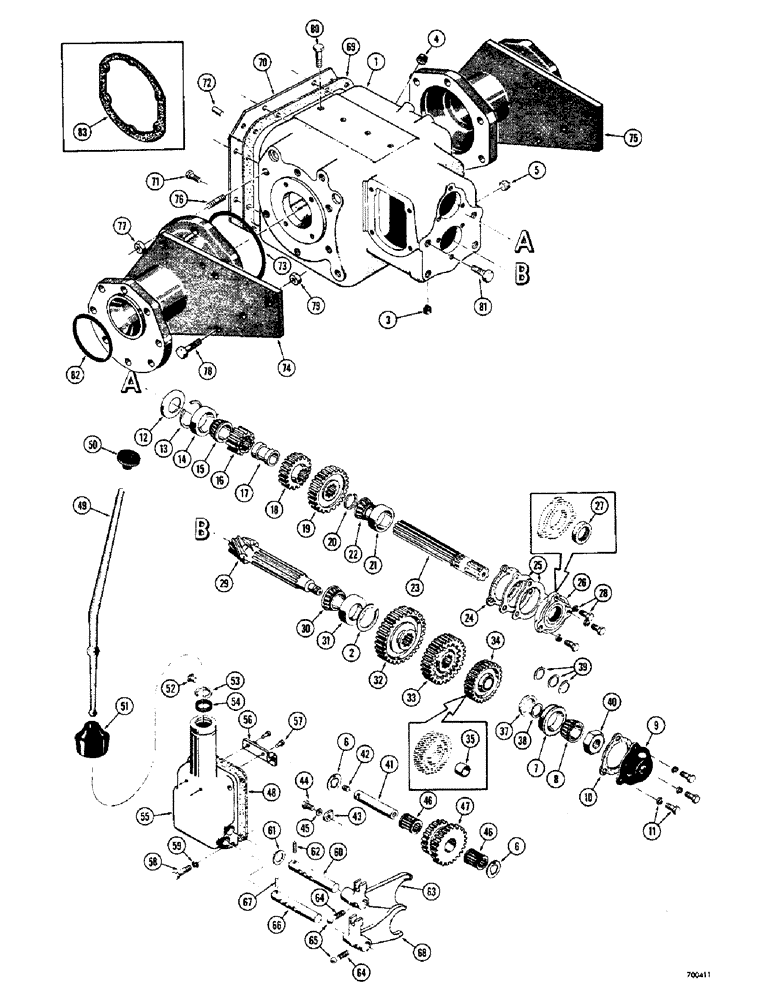

Запчасти Case 310G (058) - D36982 TRANSMISSION - DIFFERENTIAL AND FINAL DRIVE SPACERS, TRANS. SN 6266E TO TRANS. SN 91302E (03) - TRANSMISSION

D36982

X

TRANSMISSION AND DIFFERENTIAL - complete (When stock is exhausted use D38527 transmission and D38931 dipstick and filler tube kit) See Figure 62, Includes: Ref. 1 - 69

1шт.

D36982 transmission and differential includes Ref. 1 - 69 on Figure 58.

1шт.

D37367

X

TRANSMISSION CASE ASSEMBLY - when stock is exhausted, use D38919 transmission case assy, see Figure 62, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

CASE - transmission

1шт.

2

11451

RING, SNAP

SNAP RING - countershaft rear bearing

1шт.

3

D23217

X

PLUG - drain, magnetic

2шт.

4

221-16

PLUG,Sq Hd, 1"-11 1/2 NPTF

- filler

1шт.

5

221-834

X

PLUG - oil level

1шт.

6

D29626

WASHER

- thrust, reverse idler

2шт.

7

D37370

BEARING CUP,2.6542" OD x 0.625"

CUP - bearing, countershaft

1шт.

8

W9651S

CUP ASSY.

CONE - bearing, countershaft

1шт.

9

D37368

CYLINDER END CAP

CAP - bearing, front (Countershaft)

1шт.

10

D37369

GASKET

- bearing, front (Countershaft)

1шт.

11

23016

CAP

HHCS AND LOCKWASHER

3шт.

12

11371

CUP ASSY.

CUP - oil, mainshaft rear bearing

1шт.

13

11453

TAPERED BEARING

SNAP RING - mainshaft rear bearing

1шт.

14

O4056TS

CUP

- bearing

1шт.

15

A31074

CONE

- bearing

1шт.

16

11363

BALL BEARING

GEAR - mainshaft, low and reverse

1шт.

17

35130

SPACER

- mainshaft gear

1шт.

18

11365

GEAR

- mainshaft, second speed

1шт.

19

11366

GEAR

- mainshaft, constant mesh

1шт.

20

A29978

RING, SNAP

SNAP RING - mainshaft, front bearing

1шт.

21

O4056TS

CUP

- bearing

1шт.

22

A31074

CONE

- bearing

1шт.

23

D33873

MAIN SHAFT

MAINSHAFT

1шт.

24

11382

- mainshaft front bearing cap

1шт.

25

11368

SHIM

- mainshaft front bearing cap (.005" thick)

1шт.

11367

SHIM

- mainshaft front bearing cap (.010" thick)

1шт.

D20541

SHIM,.020" Thk

Main shaft front bearing cap .020" Thk

1шт.

26

D33872

CAP ASSY.

CAP - mainshaft front bearing, Includes: Ref. 27

1шт.

27

11370

OIL RESERVOIR

SEAL - oil, bearing cap

1шт.

28

23016

CAP

HHCS AND LOCKWASHER

3шт.

29

R25584

GEAR WHEEL

COUNTERSHAFT AND BEVEL PINION - included with differential and drum assembly

1шт.

30

40384

ROLLER BEARING

CONE - bearing

1шт.

31

40385

BEARING,3.375" OD x 0.9375"

CUP - bearing

1шт.

32

11373

BALL BEARING

- countershaft, first and reverse

1шт.

33

11374

GEAR

- sliding, second and third (When stock is exhausted, use D37372)

1шт.

33

11374GV

DISC

- sliding, second and third (When stock is exhausted, use D37372)

1шт.

D37372

GEAR

- sliding, second and third

1шт.

34

11375

GEAR

AND BUSHING - third, Includes: Ref. 35

1шт.

35

11376

BUSHING

- countershaft third gear

1шт.

36

RESERVED

1шт.

37

11378

BELLEVILLE WASHER

- retaining, countershaft third gear

1шт.

38

D27621

SPACER

WASHER - spacer, hardened (3/64" thick)

1шт.

39

D27618

SHIM,.004" Thk

Steel .004" Thk

1шт.

D27619

SHIM,.007" Thk

Steel .007" Thk

1шт.

D27620

SHIM,.010" Thk

Steel .010" Thk

1шт.

40

11380

NUT

- adjusting, countershaft front bearing

1шт.

41

34592

SHAFT

ASSEMBLY - reverse idler, Includes: Ref. 42

1шт.

42

34594

X

PLUG - pipe, slotted headless

1шт.

43

11385

LOCK ASSY

LOCK - reverse idler shaft

1шт.

44

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

45

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER - Shakeproof lock, internal lock (3/8")

1шт.

46

11450

TAPERED BEARING

BEARING - needle, reverse idler

2шт.

47

NLS

NO LONGER SERVICED

GEAR - reverse idler

1шт.

48

11391

GASKET

- control cover

1шт.

D33506

SHIFTING UNIT

CONTROL ASSEMBLY - gear shift, complete (Not illustrated), Includes: Ref. 49 - 68

1шт.

49

D33480

LEVER

- gear shift

1шт.

50

A26727

BALL

KNOB - gear shift lever

1шт.

51

A57876

COVER

- dust, gear shift lever

1шт.

52

A30294

PIN

- stake, gear shift lever

1шт.

53

11454

RING, SNAP

SNAP RING - gear shift lever

1шт.

54

CAS11393

WASHER

- pivot, gear shift lever

1шт.

55

NLS

NO LONGER SERVICED

COVER AND GUIDE ASSEMBLY - control, Includes: Ref. 56 and 57

1шт.

56

11389

PLATE

- guide, control cover

1шт.

57

45-414

RIVET,But Hd, 1/4" x 7/8"

- button head (1/4" x 7/8")

2шт.

58

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

59

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

60

11396

ROD

- shift, first and reverse

1шт.

61

D28299

WASHER

- spacer, first and reverse shift fork

1шт.

62

11398

PIN

- lock, first and reverse shift rod

1шт.

63

11400

FORK TEDDER

FORK - shift, first and reverse

1шт.

64

11403

SPRING

- mesh lock, shift fork

2шт.

65

211-11

BALL,3/8" Dia

- mesh lock, shift fork (.) 3/8" Dia

2шт.

66

11397

ROD

- shift, second and third

1шт.

67

11399

PIN

- lock, second and third shift rod

1шт.

68

NLS

NO LONGER SERVICED

FORK - shift, second and third

1шт.

69

11429

GASKET

- transmission cover plate

1шт.

70

D21185

PLATE

- cover, transmission

1шт.

71

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

(Apply Loctite to these bolts) See below Hex, 7/16"-14 x 1 1/4", G5, Full Thd

11шт.

72

49882

PIN

- dowel

4шт.

73

A28239

O-RING,0.139" Thk x 5.984" ID, -258, Cl 5, 75 Duro

SEAL - O-ring, final drive spacer (48" gauge only)

2шт.

74

D29728

SPACER - final drive, R.H. (48" gauge)

1шт.

75

D29729

SPACER - final drive, L.H. (48" gauge)

1шт.

D29792

X

SPACER - final drive, R.H. (60" gauge)

1шт.

D29793

SPACER

- final drive, L.H. (60" gauge)

1шт.

D29794

X

SPACER - final drive, R.H. (72" gauge)

1шт.

D29795

X

SPACER - final drive, L.H. (72" gauge)

1шт.

76

46505

STUD

- final drive spacer (9/16" x 2-1/2")

12шт.

77

131-675

LOCK NUT,9/16"-18, GB

NUT - lock (9/16" x 18 NF)

12шт.

78

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

79

25-1012

NUT,3/4"-10, G5

8шт.

80

13-916

BOLT,Hex, 9/16" - 12 x 1", Gr 5

HHCS - 9/16" - 12 NC x 1"

4шт.

81

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

B17068

ADHESIVE

LOCTITE - 2 cc tube (Not illustrated)

1шт.

82

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - O-ring, spacer to final drive housing

2шт.

83

D29309

GASKET

- final drive spacer (60" and 72" gauge only)

2шт.
