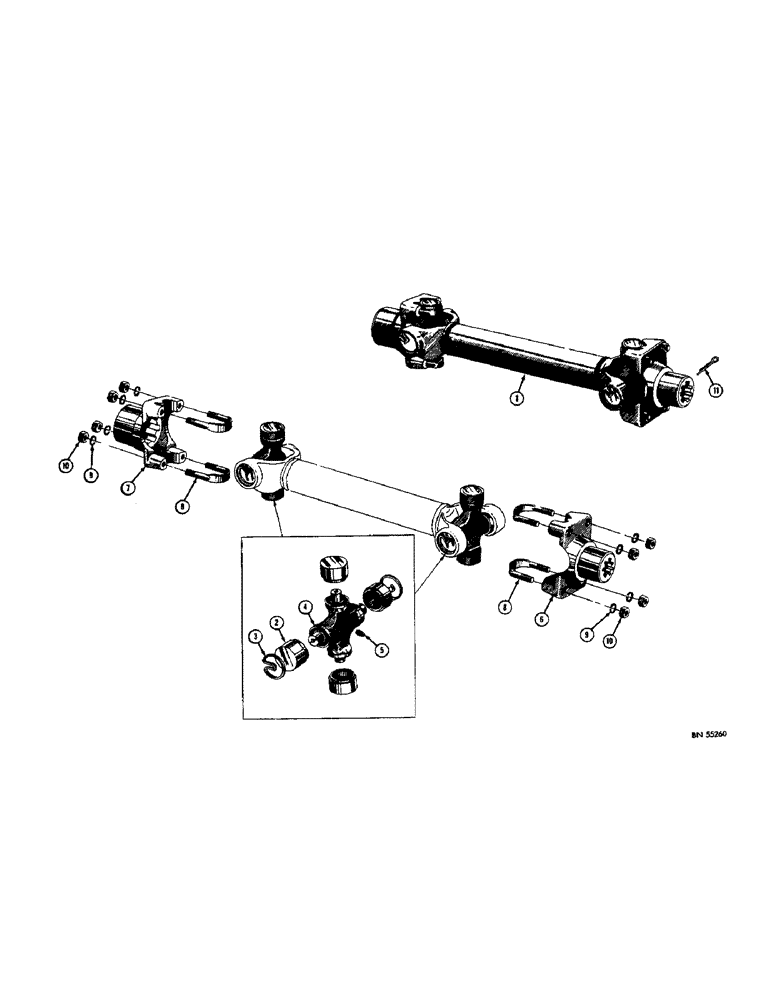

Запчасти Case 310G (052) - DRIVE SHAFT AND UNIVERSAL JOINTS - GAS (03) - TRANSMISSION

1

D24457

SHAFT - universal, 17-3/8" long (Gas models only), Includes: Ref. 2 - 10

1шт.

D26204

BEARING ASSY

KIT - journal and bearing, Includes: Ref. 2 - 5

2шт.

2

D26203

BEARING CAP

BEARING - journal

4шт.

3

11256

SNAP RING

SNAP RING - journal bearing

2шт.

4

NSS

NOT SOLD SEPARAT

CROSS - journal

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

6

11259

FORK

END - yoke, rear

1шт.

7

11258

YOKE

END - yoke, front

1шт.

8

11260

"U" BOLT - yoke end mounting

4шт.

9

92-5

LOCK WASHER,5/16"

med sect. 5/16"

8шт.

10

48161

NUT - special

8шт.

11

132-80

HARDWARE

PIN - cotter (5/32" x 2-1/2")

1шт.
