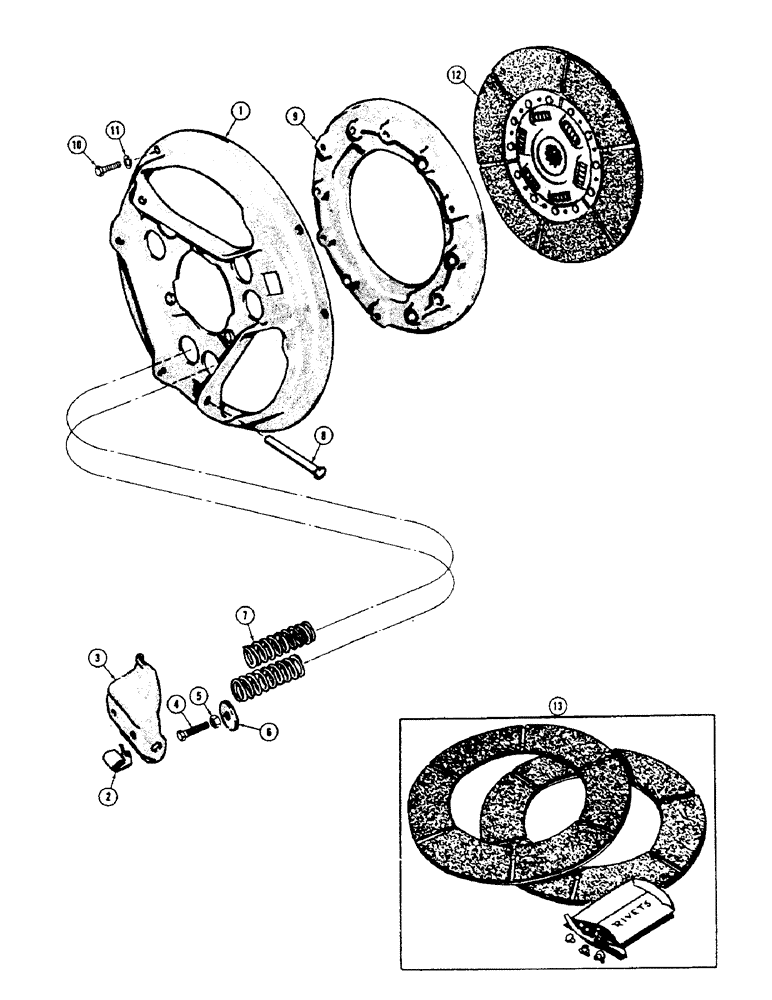

Запчасти Case 310G (050) - CLUTCH (03) - TRANSMISSION

G45790

CLUTCH

PLATE ASSY - pressure, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HUB - (Order G45790)

1шт.

2

G46061

CLIP

- lever return

3шт.

3

G47028

LEVER

- clutch

3шт.

4

G49049

X

SCREW - adjusting

3шт.

5

G49005

NUT - adjusting

3шт.

6

G49048

WASHER

- adjusting nut

3шт.

7

G47027

SPRING

- lever (Light green)

6шт.

8

G47029

PIN

- pivot

3шт.

9

A36568

PLATE

- pressure

1шт.

10

G49026

BOLT - plate to flywheel (3/8 x 1-1/4" N.C.)

6шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

G45791

PLATE ASSY.

PLATE - driving

1шт.

13

G37099

KIT - clutch facing

1шт.
