Запчасти Case 310G (048) - CLUTCH HOUSING (03) - TRANSMISSION

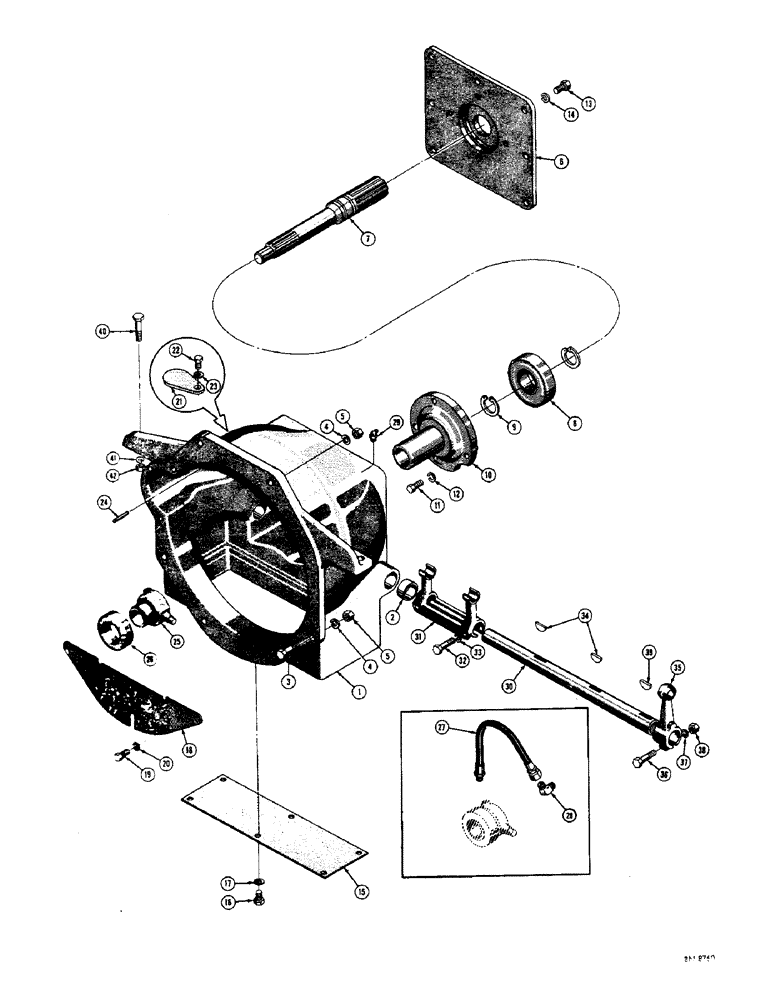

Схема запчастей Case 310G - (048) - CLUTCH HOUSING (03) - TRANSMISSION

Артикул

Название

Примечание

Количество

1

G11905

HOUSING - clutch, Includes: Ref. 2

1шт.

2

G49666

BUSHING

- clutch cross shaft

2шт.

3

A30129

BOLT

- body, clutch, Serial Range: housing-block

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

4шт.

6

G1364

PLATE - back, clutch housing

1шт.

7

G11354

SHAFT - drive clutch

1шт.

8

F62198

BEARING

- clutch drive shaft

1шт.

9

A21619

CIRCLIP

SNAP RING - bearing

2шт.

10

G1365

SPINDLE

- clutch throwout carrier

1шт.

11

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

14

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

7шт.

15

G11368

COVER - clutch housing

1шт.

16

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

17

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

18

D30040

COVER - flywheel housing

1шт.

19

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

2шт.

20

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

21

A29068

COVER

- timing hole

1шт.

22

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, , Timing 1/8" x 1 1/4", Slotted

1шт.

25

D30055

CARRIER

- throwout bearing, Includes: Ref. 26

1шт.

26

G13624

BEARING

- throwout

1шт.

27

51040-10

HOSE - throwout bearing lube

1шт.

28

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male (x 1/4" JIC) 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

29

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

1шт.

30

G11353

SHAFT - cross

1шт.

31

A26061

YOKE

- clutch

1шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

33

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

34

126-24

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

35

11037

BELT, TRANSMISSION

LEVER - outer, cross shaft

1шт.

36

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

37

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

38

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

39

126-26

WOODRUFF KEY,#16, 3/16" x 1 1/8"

KEY - no. 16 Woodruff

1шт.

40

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

41

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

42

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

Выбрано товаров: 42
