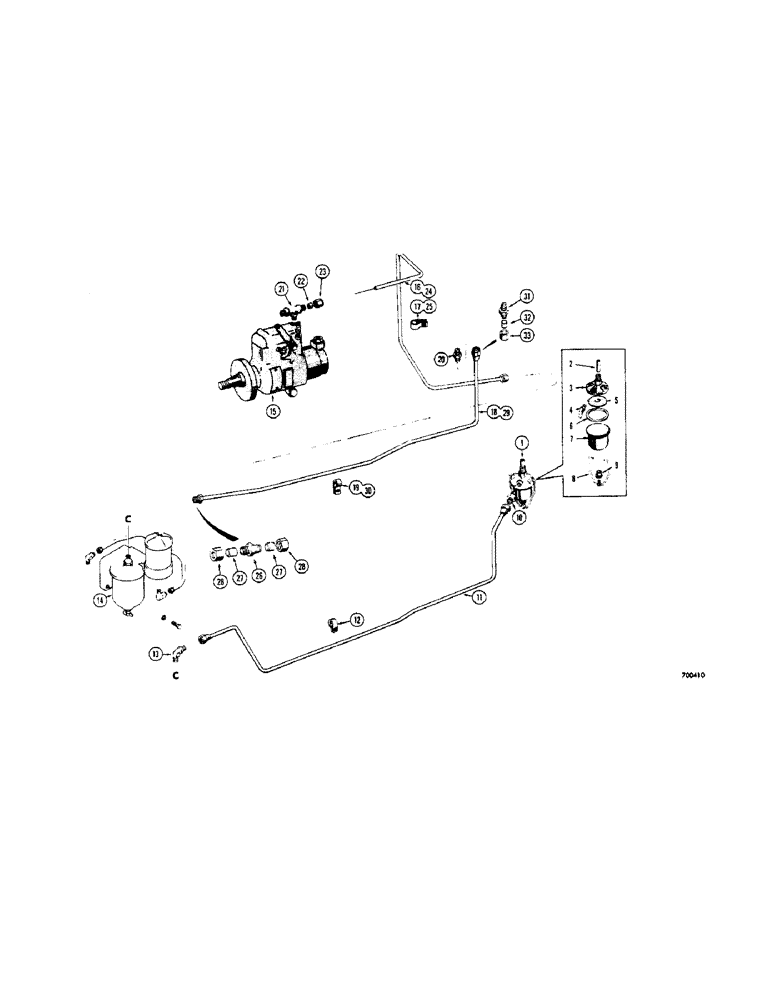

Запчасти Case 310G (044[1]) - FUEL LINES, FUEL PUMP AND STRAINER - DIESEL (02) - FUEL SYSTEM

1

33487

STRAINER ELEMENT

STRAINER - fuel, Includes: Ref. 2 - 9

1шт.

2

NLS

NO LONGER SERVICED

TUBE - inlet

1шт.

3

41932

COVER

- strainer

1шт.

4

A11200

COCK

VALVE - shut-off

1шт.

5

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

6

A11208

GASKET

- bowl

1шт.

7

NLS

NO LONGER SERVICED

1шт.

8

A11212

BAIL

- bowl

1шт.

9

A11210

ADJUSTER

NUT - cup, bail

1шт.

10

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight (5/16" JIC x 1/8" NPT)

1шт.

11

D31555

TUBE - fuel line, Serial Range: tank-filter

1шт.

12

49832

CLAMP

- fuel line tube

1шт.

13

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- male, 90 degrees (5/16" JIC x 1/4" NPT)

1шт.

14

A35735

FILTER

ASSEMBLY - parts list figure 40

1шт.

15

REF

INSTRUCTION

PUMP - fuel injection (Parts listed figure 38)

1шт.

16

D30034

TUBE

- return fuel line, front sect., used before tractor sn 3032829

1шт.

17

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- D30034 tube, used before tractor sn 3032829

1шт.

18

D33501

TUBE - return fuel line, rear sect., used before tractor sn 3032829

1шт.

19

D29140

CLAMP - D33501, used before tractor sn 3032829

1шт.

20

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight (5/16" JIC x 1/4" NPT), used before tractor sn 3032829

1шт.

21

222-73

TEE,5/16" Flex Tube Run x 1/8" NPTF Br

- female, used on tractor sn 3032829 and after, Includes: Ref. 22 and 23

1шт.

22

222-102

SLEEVE,1/4" Tube

Used on tractor S/N 3032829 and after 1/4" Tube

2шт.

23

87017024

TUBE NUT,1/2"-24

NUT, used on tractor sn 3032829 and after

2шт.

24

D42102

TUBE - return fuel line, front, used on tractor sn 3032829 and after

1шт.

25

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube, used on tractor sn 3032829 and after

1шт.

26

222-3

FITTING,1/2"-24 Flex Tube

UNION - flex tube, used on tractor sn 3032829 and after, Includes: Ref. 27 and 28

1шт.

27

222-102

SLEEVE,1/4" Tube

Used on tractor S/N 3032829 and after 1/4" Tube

2шт.

28

87017024

TUBE NUT,1/2"-24

NUT, used on tractor sn 3032829 and after

2шт.

29

D42103

TUBE - return fuel line, rear, used on tractor sn 3032829 and after

1шт.

30

51200321

CLAMP

- tube, used on tractor sn 3032829 and after

1шт.

31

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - flex tube, used on tractor sn 3032829 and after, Includes: Ref. 32 and 33

1шт.

32

222-102

SLEEVE,1/4" Tube

Used on tractor S/N 3032829 and after 1/4" Tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT, used on tractor sn 3032829 and after

1шт.
