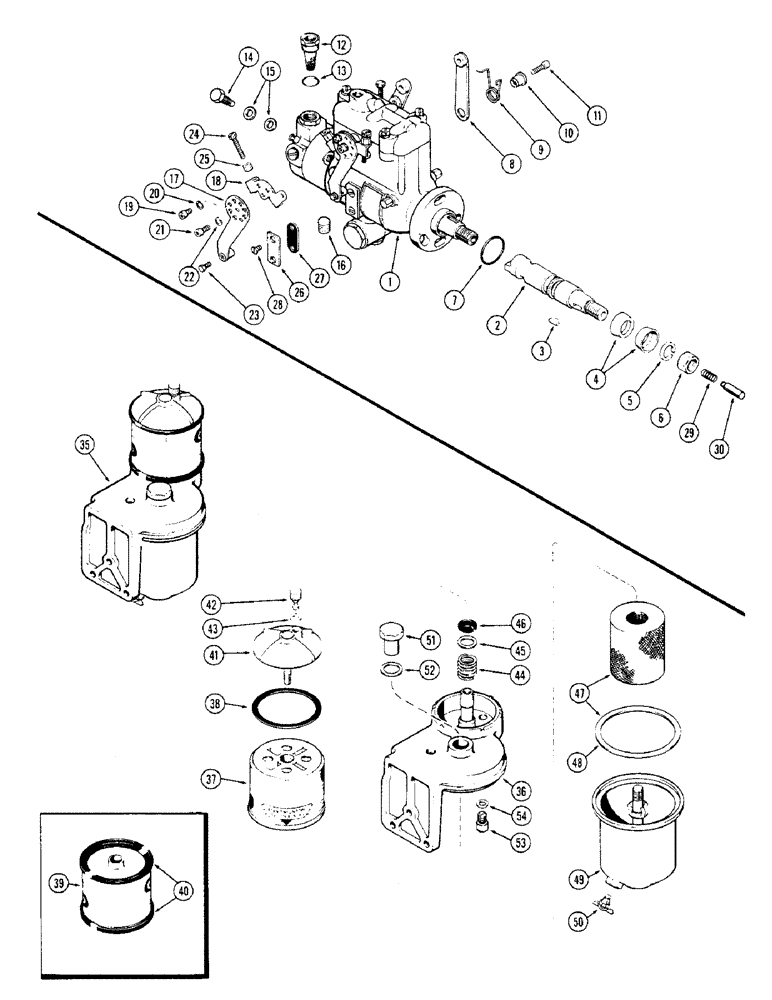

Запчасти Case 310G (042) - FUEL INJECTION PUMP, (188) DIESEL ENGINE (02) - FUEL SYSTEM

1

A35779

PUMP, FUEL INJECTION

PUMP ASSY - fuel injection (1850 R.P.M.), Includes: Ref. 2 - 30

1шт.

2

G47113

SHAFT

- drive

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to shaft #6, 5/32" x 5/8"

1шт.

4

R14711

SEAL

- drive shaft

2шт.

5

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

6

25-159

JAM NUT,Jam, 9/16"-18, G5

- jam, 9/16" N.F.

1шт.

7

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

8

G45338

ARM

- throttle

1шт.

9

G48505

SPRING

- throttle arm

1шт.

10

G49621

RETAINER

- spring, throttle arm

1шт.

11

G49079

SET SCREW

SCREW - throttle arm

1шт.

12

CAS73671

FILTER, ELEMENT

CAP - fuel inlet (Includes filter)

1шт.

13

73666

AIR CLEANER

- filter

1шт.

14

73613

SCREW

- connector, injection tube

4шт.

15

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

8шт.

16

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

17

G45337

ARM

- shut-off, Includes: Ref. 18

1шт.

18

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

19

73646

SCREW

- position, shut-off arm

1шт.

20

493-21017

LOCK WASHER,Int Tooth, #8

- position screw

1шт.

21

73670

SCREW

- retaining, shut-off arm

1шт.

22

73630

LOCK WASHER

WASHER - retaining screw

1шт.

23

73667

IGNITION SWITCH

- pivot

1шт.

24

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle

1шт.

25

73651

SCREW

- high idle screw

1шт.

26

G46330

COVER

- timing window

2шт.

27

73453

GASKET

- cover

2шт.

28

73514

SCREW

- timing cover

4шт.

29

G48502

SPRING

- thrust, pump drive shaft

1шт.

30

G47128

PLUNGER

- thrust spring

1шт.

35

A35735

FILTER

ASSY - fuel, Includes: Ref. 36 - 54

1шт.

36

A35664

HEAD

- mounting, fuel filter

1шт.

37

A37187

FILTER, ELEMENT

FILTER - final (Can use A35668 ref. 39), fuel, Includes: Ref. 38

1шт.

38

G46895

GASKET

- filter cap, fuel

1шт.

39

A35668

FILTER

- final (Alternate), fuel, Includes: Ref. 40

1шт.

40

G46895

GASKET

- filter, fuel

2шт.

41

A35672

CAP

- final filter, fuel, Includes: Ref. 42 and 43

1шт.

42

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - bleeder, fuel filter

1шт.

43

NLS

NO LONGER SERVICED

GASKET - bleeder valve, fuel filter

1шт.

44

A35669

SPRING

- final filter, fuel

1шт.

45

A35670

WASHER

- final filter, fuel

1шт.

46

A35671

GASKET

- rubber, final filter, fuel

1шт.

47

A35863

FILTER, ELEMENT

ELEMENT KIT - primary filter, fuel, Includes: Ref. 48

1шт.

48

A28056

GASKET

- filter body, fuel

1шт.

49

CASA37099

HOUSING

BODY - primary filter, fuel

1шт.

50

217-102

PLUG, DRAIN

VALVE - drain (1/8" P.T.), fuel

1шт.

51

A21131

NUT

- primary filter body, fuel

1шт.

52

A28055

GASKET

- nut to head, fuel filter

1шт.

53

G49080

PLUG

- drain, primary filter, fuel

1шт.

54

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

GASKET - drain plug (Replaces G49886), fuel filter

1шт.
