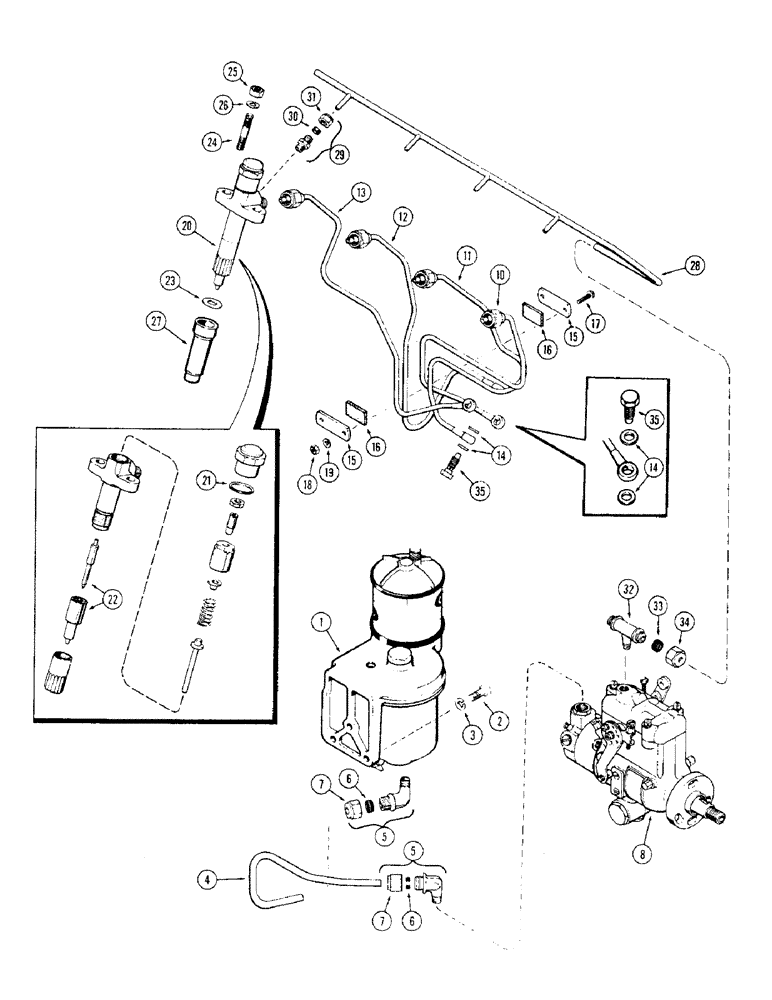

Запчасти Case 310G (040) - FUEL INJECTION SYSTEM, (188) DIESEL ENGINE (02) - FUEL SYSTEM

1

A35735

FILTER

ASSY - fuel (Repairs figure 42)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

4

A36566

TUBE

LINE - fuel, Serial Range: filter-pump

1шт.

5

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" tube x 1/4" P.T., Includes: Ref. 6 and 7

2шт.

6

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

7

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

8

A35779

PUMP, FUEL INJECTION

PUMP ASSY - fuel injection (Repairs figure 42)

1шт.

10

A35058

TUBE

- pump to #1 injector, Includes: Ref. 14

1шт.

11

A35059

TUBE

- pump to #2 injector, Includes: Ref. 14

1шт.

12

A35060

TUBE

- pump to #3 injector, Includes: Ref. 14

1шт.

13

A35061

TUBE

- pump to #4 injector, Includes: Ref. 14

1шт.

14

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER -, Serial Range: tube-pump

2шт.

15

A27978

CLAMP

- injection tube

2шт.

16

A27980

CUSHION

- tube clamp

2шт.

17

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp - #10-24 x 1" rd. hd.

2шт.

18

129-7

NUT,Hex, #10 - 24

- hex. #10-24

2шт.

19

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

20

A49056

NOZZLE CAP

INJECTOR ASSY - fuel, Includes: Ref. 21 - 23

1шт.

21

G46885

GASKET

- adjusting cap

1шт.

22

A35085

NOZZLE CAP

NOZZLE - injector

1шт.

23

G49068

GASKET

- seat

1шт.

24

A29431

STUD

- injector to head (3/8" N.C. x 1-3/4")

8шт.

25

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

8шт.

26

92-6

LOCK WASHER,3/8"

8шт.

27

G11724

LINER

-, Serial Range: injector-head

4шт.

28

A36514

TUBE ASSY.

TUBE - manifold, injector leak-off

1шт.

29

222-21

FITTING,7/16"-24 x 1/8" NPTF

Leak-off, Includes Ref. 30 and 31 7/16"-24 x 1/8" NPTF

4шт.

30

222-101

SLEEVE,3/16" Tube

- 3/16" Tube

1шт.

31

222-111

TUBE NUT,7/16" - 24

NUT - 3/8" tube

1шт.

32

222-73

TEE,5/16" Flex Tube Run x 1/8" NPTF Br

ASSY - leak-off to pump, 5/16" tube x 1/8" P.T., Includes: Ref. 33 and 34

1шт.

33

222-103

SLEEVE,5/16" Tube

2шт.

34

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

2шт.

35

73613

SCREW

- connector, Serial Range: tube-pump

4шт.
