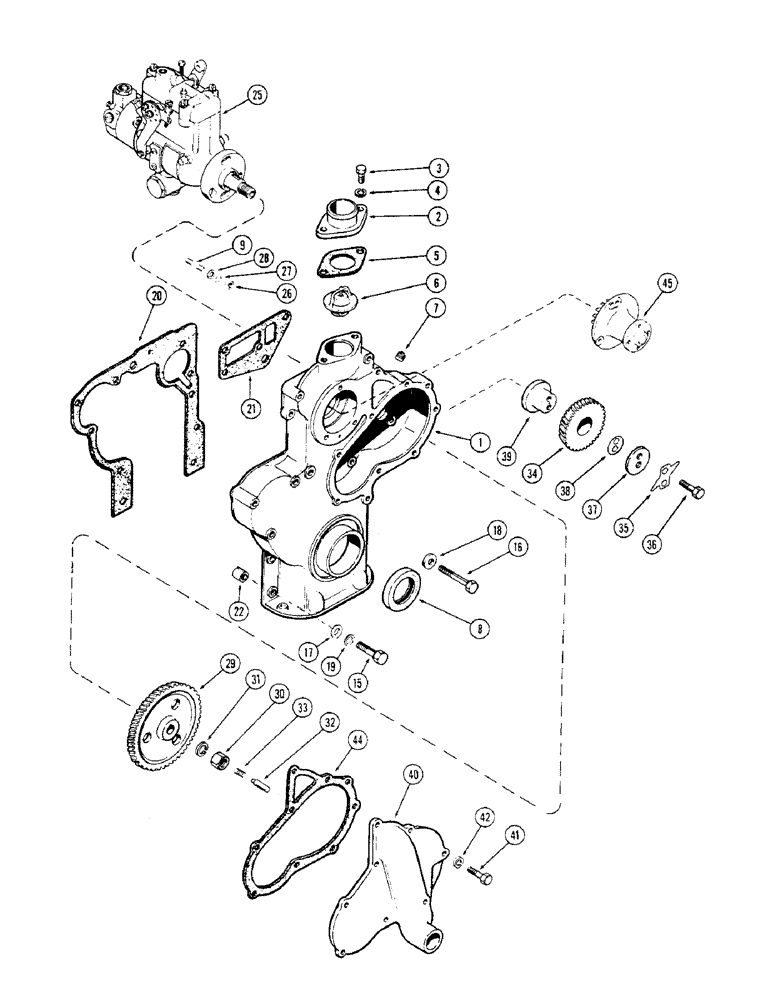

Запчасти Case 310G (038) - FUEL INJECTION PUMP AND DRIVE, (188) DIESEL ENGINE (02) - FUEL SYSTEM

1

A36823

COVER

ASSY. - injection pump drive, Includes: Ref. 2 - 9

1шт.

2

G2144

FITTING

CONNECTION - water outlet

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

G46907

GASKET

- water connection

1шт.

6

A57641

THERMOSTAT

- (180 degrees) (Replaces G45788)

1шт.

7

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

8

A36609

OIL SEAL

- oil, crankshaft front

1шт.

9

G11204

STUD

- pump mounting

1шт.

15

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

1шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

16

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

3шт.

16

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

1шт.

17

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 1/16"

2шт.

18

92-6

LOCK WASHER,3/8"

9шт.

19

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

20

A38228

GASKET

-, Serial Range: cover-block

1шт.

21

A38084

GASKET,1.27mm Thk

-, Serial Range: cover-head

1шт.

22

A29442

RING

- dowel, Serial Range: cover-block

2шт.

25

A35779

PUMP, FUEL INJECTION

PUMP ASSY - fuel injection (Repairs figure 42)

1шт.

26

25-106

NUT,3/8"-16, G5

- pump stud, 3/8" N.C. hex.

3шт.

27

92-6

LOCK WASHER,3/8"

3шт.

28

A30043

WASHER

- plain (13/32 x 7/8 x 1/8" trimmed)

3шт.

29

G2076

GEAR

- pump drive

1шт.

30

25-159

JAM NUT,Jam, 9/16"-18, G5

- jam, 9/16" N.F. hex.

1шт.

31

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

32

G47128

PLUNGER

- thrust, pump drive

1шт.

33

G48502

SPRING

- thrust plunger

1шт.

34

G11852

GEAR

ASSY - idler (Includes bushing)

1шт.

35

G11746

PLATE

- lock, idler gear

1шт.

36

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

37

G11732

PLATE

- thrust, idler

1шт.

38

G11728

SHIM,.005" Thk

Idler gear .005" Thk

1шт.

38

G11729

SHIM,.006" Thk

Idler gear .006" Thk

1шт.

38

G11730

SHIM,.007" Thk

Idler gear .007" Thk

1шт.

38

G11731

SHIM,.009" Thk

Idler gear .009" Thk

1шт.

39

G11726

HUB

- idler gear

1шт.

40

G2077

COVER ASSY

COVER - drive gear

1шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

42

92-6

LOCK WASHER,3/8"

9шт.

44

G46859

GASKET

- cover

1шт.

45

A37758

PUMP

WATER PUMP - (Order from figure 24)

1шт.

45

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

45

A146584R

REMAN-WATER PUMP

Reman For New P/N A37758, Water Pump

1шт.

45

A146584C

CORE-WATER PUMP

Return Part Number

1шт.
