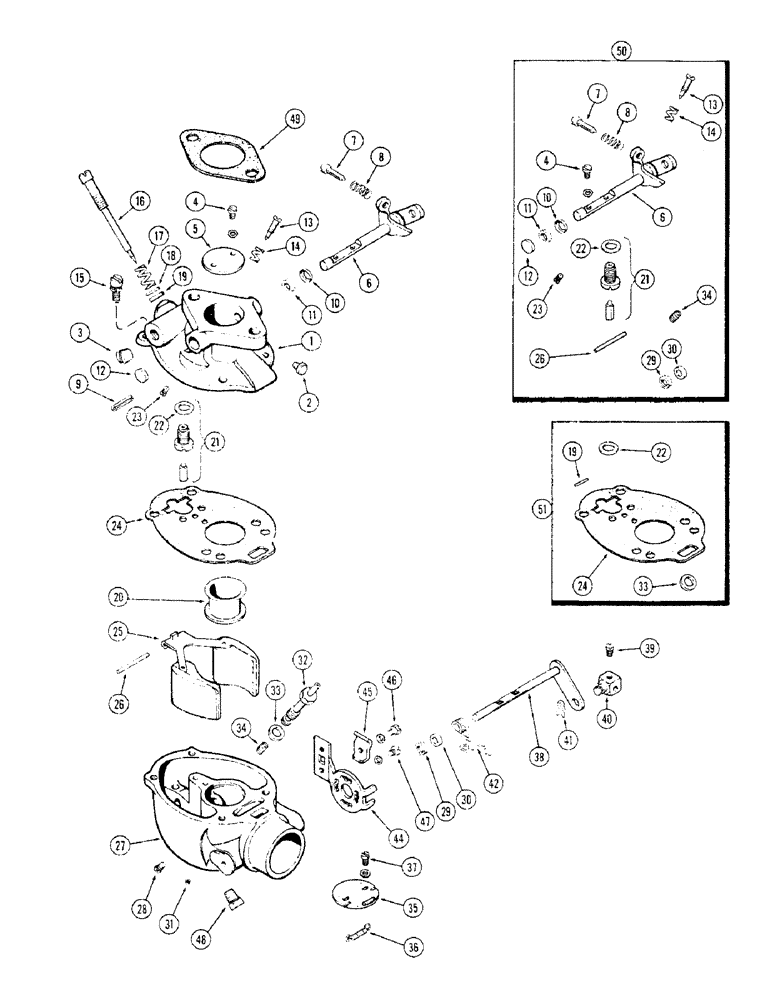

Запчасти Case 310G (023A) - A38241 CARBURETOR, (148B) SPARK IGNITION ENGINE (02) - FUEL SYSTEM

A38241

CARBURETOR

- (Marvel-Schebler #8-4957X), Includes: Ref. 1 - 48

1шт.

1

A41571

BODY ASSY - throttle, Includes: Ref. 2 - 12

1шт.

2

B51874

PLUG - idle drilling

1шт.

3

B53961

X

PLUG - fuel inlet

1шт.

4

B51685

SCREW

- throttle plate

2шт.

5

B51669

PLATE - throttle

1шт.

6

B51655

THROTTLE

SHAFT ASSY - throttle, Includes: Ref. 7 and 8

1шт.

7

B51680

SCREW - stop

1шт.

8

B51742

SPRING

- stop screw

1шт.

9

B51862

PIN - throttle stop

1шт.

10

B51853

RETAINER

- shaft packing

1шт.

11

B51805

PACKING

- throttle shaft

1шт.

12

B51852

CUP

PLUG - shaft end

1шт.

13

B51788

NEEDLE

- idle adjusting

1шт.

14

B51744

SPRING

- idle needle

1шт.

15

B51683

SCREW,#12 - 24 x 5/8"

- throttle, Serial Range: body-bowl

4шт.

16

B51797

NEEDLE BEARING CAGE

NEEDLE - high speed

1шт.

17

B51732

VALVE SPRING

SPRING - high speed needle

1шт.

18

B51870

WASHER

- high speed needle

1шт.

19

B51723

GASKET

- high speed needle

1шт.

20

A41567

VENTURI

1шт.

21

B51912

SEAT

VALVE & SEAT ASSY - float, Includes: Ref. 22

1шт.

22

B51703

GASKET

- valve seat

1шт.

23

B51841

JET - idle

1шт.

24

B51708

GASKET

- throttle, Serial Range: body-bowl

1шт.

25

B51772

FLOAT

- fuel body

1шт.

26

B51779

SHAFT

- float

1шт.

27

NSS

NOT SOLD SEPARAT

BOWL ASSY - fuel (Order A38241), Includes: Ref. 28 - 31

1шт.

28

B51700

SCREW

- plug, nozzle hole

1шт.

29

B51803

PACKING

- choke shaft

1шт.

30

B51854

RETAINER

- packing

1шт.

31

A41026

PLUG - choke shaft end

1шт.

32

A41568

NOZZLE - main

1шт.

33

B51720

GASKET

- main nozzle

1шт.

34

A41569

JET - power

1шт.

35

B51763

VALVE

FLY ASSY - choke, Includes: Ref. 36

1шт.

36

B51735

SPRING

- choke fly

1шт.

37

B51685

SCREW

- choke fly

2шт.

38

B51751

SHAFT

ASSY - choke, Includes: Ref. 39 - 41

1шт.

39

B51698

SCREW,0.164" - 32 x 5/16"

- swivel

1шт.

40

B51764

PIVOT

SWIVEL - choke control

1шт.

41

B51877

SPLIT PIN

PIN - cotter

1шт.

42

B51741

SPRING - choke shaft return

1шт.

B53956

BRACKET ASSY - choke control, Includes: Ref. 44 - 46

1шт.

44

A41027

BRACKET

1шт.

45

B51765

CLIP

- control rod

1шт.

46

B59373

SCREW - clip

1шт.

47

A51686

PEDAL

SCREW - bracket mounting

1шт.

48

A51887

PLUG - bowl drain

1шт.

49

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.

50

A41588

KIT

- repair, complete carburetor, Includes: Ref. 51

1шт.

51

A30241

GASKET KIT

KIT - gasket

1шт.
