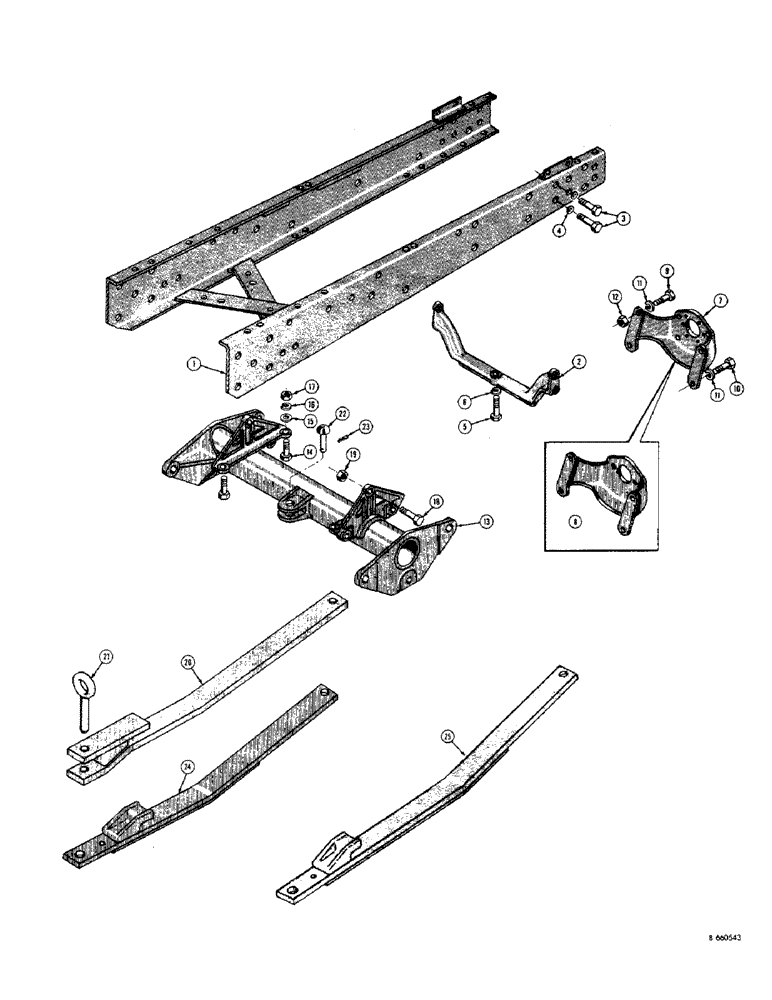

Запчасти Case 310G (046) - ENGINE FRAME, TORQUE TUBE, DRAWBAR AND ENGINE SUPPORTS (01) - ENGINE

1

D29943

FRAME - engine, all models except Loader Backhoe models (See D29944)

1шт.

D29944

FRAME - engine, Loader Backhoe models only

1шт.

2

D42175

MOUNTING PARTS

MOUNT - engine, front

1шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

5

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4"

1шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

G1212

MOUNT - engine, front (Used with D25347 and D25569 hydraulic pumps) (See D36857 mount)

1шт.

8

D36857

BRACKET

MOUNT - engine, front (Used with D31254 hydraulic pump)

1шт.

9

G49039

BOLT

- ground body (5/8" - 18 NF x 2-1/2")

2шт.

10

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

2шт.

13

D95063

TUBE

- torque, standard (48" gauge)

1шт.

13

D95064

TUBE

- torque, 60" gauge

1шт.

13

D95065

TUBE - torque, 72" gauge

1шт.

14

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

4шт.

15

NLS

NO LONGER SERVICED

SHIM - torque tube to engine frame

1шт.

16

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

17

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

18

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

19

25-1012

NUT,3/4"-10, G5

2шт.

20

D46111

DRAWBAR

1шт.

21

13073

AXLE PIN

PIN - hitch

1шт.

22

13044

NUT

PIN - mounting, drawbar

1шт.

23

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

24

13109

PIN

DRAWBAR - P.T.O. models only

1шт.

25

D21843

DRAWBAR - winch models only

1шт.
