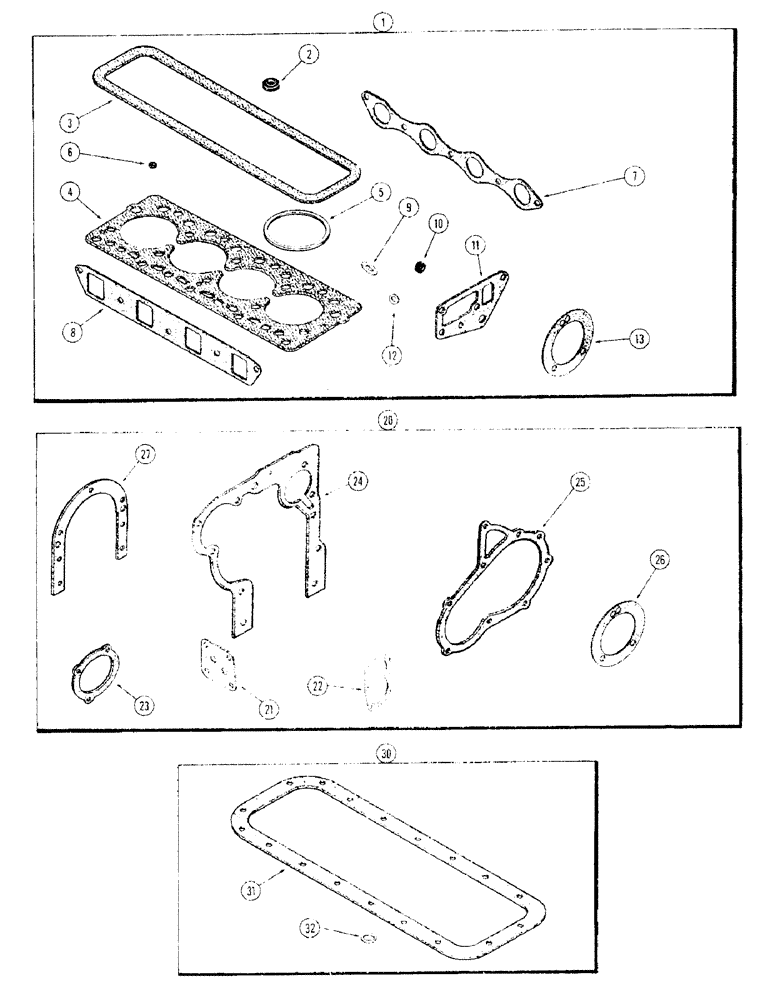

Запчасти Case 310G (037A) - ENGINE GASKET KITS, (188) DIESEL ENGINE, WITH WIDE FLANGED SLEEVES (01) - ENGINE

1

A42001

GASKET

VALVE GRIND GASKET KIT, Includes: Ref. 2 - 13

1шт.

For complete engine overhaul order ref. 1, 20 and 30

1шт.

2

G46867

GROMMET

- rubber, valve cover

1шт.

3

G46866

GASKET

- valve, Serial Range: cover-block

1шт.

4

13490891C1

-, Serial Range: head-block

1шт.

5

A38639

RING

- fire (Orange coded)

4шт.

6

G46851

SEAL

- rubber, valve stem

8шт.

7

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

8

G46871

GASKET

- intake manifold

1шт.

9

G49068

GASKET

- seat, fuel injector

1шт.

10

222-101

SLEEVE,3/16" Tube

- fuel line, 3/16" Tube

4шт.

10

222-103

SLEEVE,5/16" Tube

Fuel line 5/16" Tube

4шт.

11

A38084

GASKET,1.27mm Thk

- drive, Serial Range: cover-head

1шт.

12

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection, Serial Range: tube-pump

8шт.

13

A38083

GASKET

- water pump

1шт.

20

A41426

KIT

CYLINDER BLOCK GASKET KIT, Includes: Ref. 21 - 27

1шт.

For complete engine overhaul order ref. 1, 20 and 30

1шт.

21

G46854

GASKET

- oil filter bracket

1шт.

22

G46852

GASKET

- oil pump cover

1шт.

23

A30042

GASKET

- pump opening

1шт.

24

A38228

GASKET

- pump drive cover

1шт.

25

G46859

GASKET

- pump drive gear cover

1шт.

26

A38083

GASKET

- water pump

1шт.

27

A38196

GASKET

- rear oil seal retainer

1шт.

30

A40712

KIT

OIL PAN GASKET KIT, Includes: Ref. 31 and 32

1шт.

For complete engine overhaul order ref. 1, 20 and 30

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40712)

1шт.

32

A58608

GASKET

- drain plug (3/4 x 1 x 1/16" nylon)

1шт.
