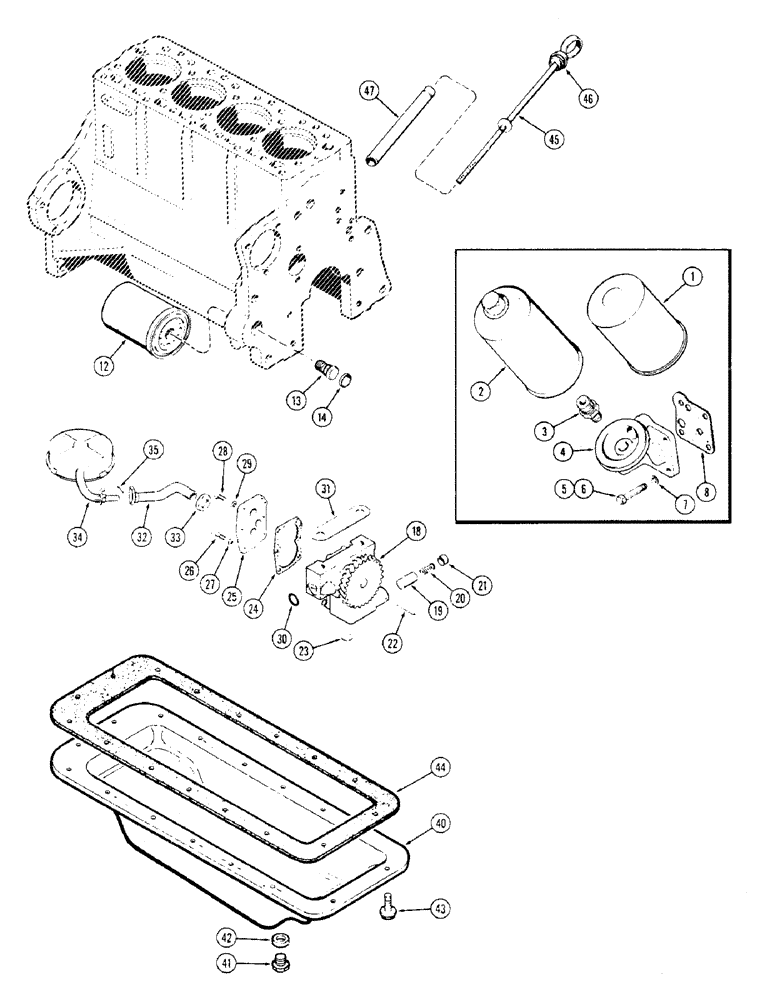

Запчасти Case 310G (034) - OIL FILTER, (188) DIESEL ENGINE, BRACKET MOUNTED (01) - ENGINE

1

A37189

FILTER, ELEMENT

FILTER - engine oil (Can use G45210)

1шт.

2

G45210

FILTER, ELEMENT

FILTER - engine oil (Alternate)

1шт.

3

G49074

ADAPTER - filter to bracket (3/4" N.F. x 3/8" P.T.)

1шт.

4

G2122

BRACKET -, Serial Range: filter-block

1шт.

5

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

6

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

7

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

8

G46854

GASKET

-, Serial Range: bracket-block

1шт.

12

A37189

FILTER, ELEMENT

FILTER - engine oil (Can use G45210. See ref. 2), flange mounted

1шт.

13

A153552

ADAPTER

- filter to block (3/4" N.F.), flange mounted

1шт.

14

41-1016

PLUG,Cup, 1"

- adpater opening (1" cup type), flange mounted

1шт.

18

G37070

X

PUMP ASSY - engine oil, Includes: Ref. 19 - 29

1шт.

19

A155144

VALVE, PRESSURE RELI

- relief, oil pump

1шт.

20

G48500

SPRING

- relief valve, oil pump

1шт.

21

A29260

RETAINER

- spring, oil pump

1шт.

22

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN - roll, 1/8 x 1/4", oil pump

1шт.

23

41-102

PLUG,Exp, 1/2"

- pump body (1/2" expansion type), oil

2шт.

24

G46852

GASKET

- pump cover, oil

1шт.

25

NSS

NOT SOLD SEPARAT

COVER - pump body, oil

1шт.

26

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

26

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

4шт.

28

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach., 1/4 x 5/8" N.C. flat hd., oil pump

2шт.

29

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

30

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port (3/4 x 15/16 x 3/32"), pump

1шт.

31

G11337

SHIM,.002" Thk

Pump to block, Oil .002" Thk

1шт.

31

G11338

SHIM,.005" Thk

Pump to block, Oil .005" Thk

1шт.

32

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction, pump to oil pan

1шт.

33

223-207

LOCK NUT

NUT - lock, pipe to pump (3/8" tube type), oil

1шт.

34

A30126

FLOAT ASSY - oil pan (Includes screen), pump

1шт.

35

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

40

A36782

PAN

ASSY - oil, Includes: Ref. 41 and 42

1шт.

41

A14280

PLUG

- drain, oil pan

1шт.

42

A58608

GASKET

- drain plug (3/4 x 1 x 21/32" nylon), oil pan

1шт.

43

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - 5/16 x 3/4" N.C. hex. (Spec. includes lockwasher), oil pan

18шт.

44

NSS

NOT SOLD SEPARAT

GASKET - pan to block (Order A40712 from figure 36), oil

1шт.

45

A37148

DIPSTICK

- oil level, pump, Includes: Ref. 46

1шт.

46

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - seal (3/4 x 1 x 1/8"), oil pan

2шт.

47

A37149

TUBE

- dipstick & oil filler, pan

1шт.
