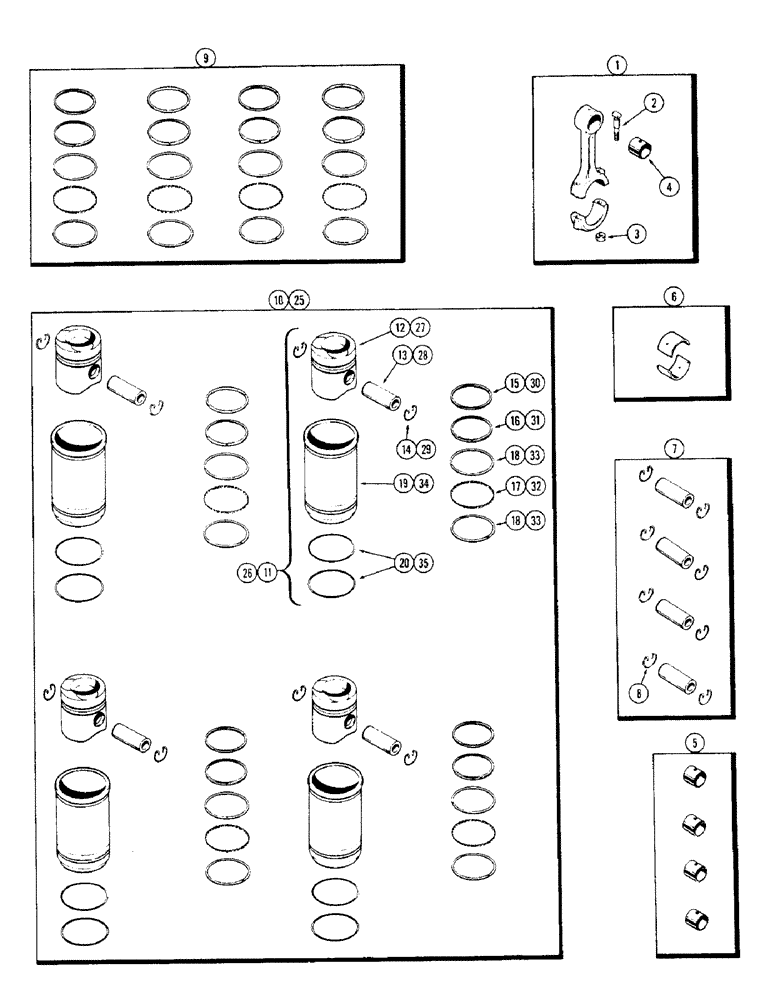

Запчасти Case 310G (032) - PISTON ASSEMBLY AND CONNECTING RODS, (188) DIESEL ENGINE (01) - ENGINE

1

G11847

ROD

ASSY - connecting, Includes: Ref. 2 - 4

4шт.

2

G49064

STEP BOLT

BOLT - cap

2шт.

3

G49060

NUT

- cap bolt

2шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - (Order ref. 5)

1шт.

5

G11953

BUSHING

S - connecting rod (Set of 4)

1шт.

6

A36500

SEAL

LINERS - bearing, conn. rod (Set of 2 std.)

4шт.

6

A36501

BEARING LINER

LINERS - bearing, conn. rod (Set of 2 .002" undersize)

4шт.

6

A36502

LINING

LINERS - bearing, conn. rod (Set of 2 .010" undersize)

4шт.

6

A36503

BEARING LINER

LINERS - bearing, conn. rod (Set of 2 .020" undersize)

4шт.

6

A36504

KIT

LINERS - bearing, conn. rod (Set of 2 .030" undersize)

4шт.

7

A35771

KIT

PIN SET - piston (Set of 4 w/retaining rings), Includes: Ref. 8

1шт.

8

G46702

RING, LOCKING

RING - retaining

2шт.

9

G37075

RING

SET - re-ring (4 pistons)

1шт.

10

A35772

KIT, LINER, PISTON R

PISTON & SLEEVE SET - (Matched set of 4), narrow flanged, Includes: Ref. 11 - 20

1шт.

11

A36391

SLEEVE ASSY

PISTON & SLEEVE SET - (Matched), narrow flanged, Includes: Ref. 12 - 20

4шт.

12

A38424

PISTON

- (Replaces G2137), narrow flanged sleeve

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 7), narrow flanged sleeve

1шт.

14

G46702

RING, LOCKING

RING - retaining (See ref. 7), narrow flanged sleeve

2шт.

15

G4819

RING

- compression, top groove (See ref. 9), narrow flanged sleeve

1шт.

16

G4817

RING

- compression, 2nd groove (See ref. 9), narrow flanged sleeve

1шт.

17

G47174

SPRING

SPACER - oil rail (See ref. 9), narrow flanged sleeve

1шт.

18

G47155

RAIL

- oil control (See ref. 9), narrow flanged sleeve

2шт.

19

G2110

SLEEVE

- cylinder, narrow flanged

1шт.

Sleeve is 4.45" across flanged area

1шт.

20

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing (3-3/4 x 3-7/8 x 7/64"), narrow flanged

2шт.

25

A42813

PISTON

& SLEEVE SET - (Matched set of 4), wide flanged, Includes: Ref. 26 - 35

1шт.

26

A42812

SLEEVE

PISTON & SLEEVE SET - (Matched), wide flanged, Includes: Ref. 27 - 35

4шт.

27

A38424

PISTON

wide flanged sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 7), wide flanged sleeve

1шт.

29

G46702

RING, LOCKING

RING - retaining (See ref. 7), wide flanged sleeve

2шт.

30

G4819

RING

- compression, top groove (See ref. 9), wide flanged sleeve

1шт.

31

G4817

RING

- compression, 2nd groove (See ref. 9), wide flanged sleeve

1шт.

32

G47174

SPRING

SPACER - oil rail (See ref. 9), wide flanged sleeve

1шт.

33

G47155

RAIL

- oil control (See ref. 9), wide flanged sleeve

2шт.

34

A39006

SLEEVE

- cylinder, wide flanged

1шт.

Sleeve is 4.53" across flanged area

1шт.

35

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing (3-3/4 x 3-7/8 x 7/64"), wide flanged

2шт.
