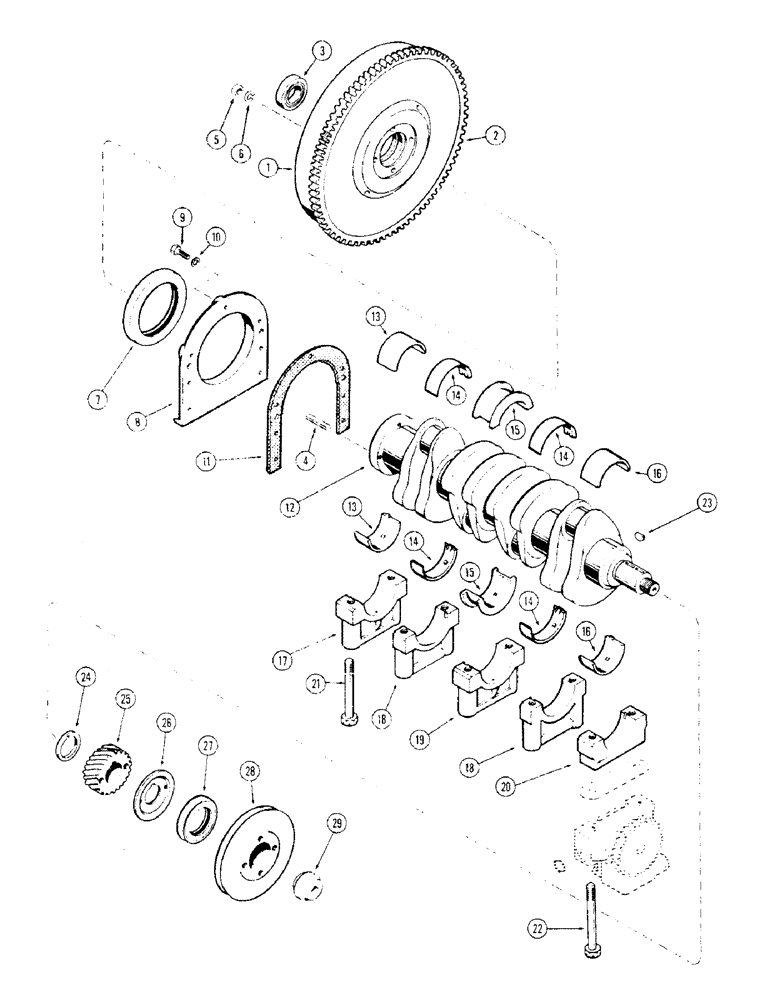

Запчасти Case 310G (030) - CRANKSHAFT AND FLYWHEEL, (188) DIESEL ENGINE (01) - ENGINE

1

G37091

FLYWHEEL ASSY, Includes: Ref. 2

1шт.

2

G11710

GEAR

- ring (135T)

1шт.

3

A30128

BEARING ASSY

BEARING - pilot

1шт.

4

A29434

STUD

- flywheel (7/16" N.F. x 1-3/4")

4шт.

5

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

6

92-7

LOCK WASHER,7/16"

4шт.

7

A39027

OIL SEAL

- oil, crankshaft rear

1шт.

8

A38390

RETAINER

- rear oil seal (Replaces G2017)

1шт.

9

113-25

X

BOLT - 1/4 x 3/4" N.C. hex. (Gr. 8)

4шт.

9

113-26

BOLT

- 1/4 x 1" N.C. hex. (Gr. 8)

3шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

11

A38196

GASKET

- retainer, rear oil seal

1шт.

12

A37211

CRANKSHAFT

- (W/rear splines) (Can use G11889)

1шт.

12

G11889

CRANKSHAFT

- (W/bushing)

1шт.

13

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (Set of 2 std.)

1шт.

13

A36496

LINING

LINERS - rear bearing (Set of 2 .002" undersize)

1шт.

13

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (Set of 2 .010" undersize)

1шт.

13

A36498

KIT

LINERS - rear bearing (Set of 2 .020" undersize)

1шт.

13

A36499

BEARING LINER

LINERS - rear bearing (Set of 2 .030" undersize)

1шт.

14

A36485

LINING

LINERS - intermediate brg. (Set of 2 std.)

2шт.

14

A36486

LINING

LINERS - intermediate brg. (Set of 2 .002" undersize)

2шт.

14

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINERS - intermediate brg. (Set of 2 .010" undersize)

2шт.

14

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINERS - intermediate brg. (Set of 2 .020" undersize)

2шт.

14

A36489

LINING

LINERS - intermediate brg. (Set of 2 .030" undersize)

2шт.

15

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (Set of 2 std.)

1шт.

15

A36491

LINING

LINERS - center bearing (Set of 2 .002" undersize)

1шт.

15

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (Set of 2 .010" undersize)

1шт.

15

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (Set of 2 .020" undersize)

1шт.

15

A36494

LINING

LINERS - center bearing (Set of 2 .030" undersize)

1шт.

16

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (Set of 2 std.)

1шт.

16

A36481

LINING

LINERS - front bearing (Set of 2 .002" undersize)

1шт.

16

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (Set of 2 .010" undersize)

1шт.

16

A36483

LINING

LINERS - front bearing (Set of 2 .020" undersize)

1шт.

16

A36484

LINING

LINERS - front bearing (Set of 2 .030" undersize)

1шт.

17

A38385

CAP

- rear bearing liner

1шт.

18

G2128

CAP

- intermediate bearing liner

2шт.

19

G2127

CAP

- center bearing liner

1шт.

20

G2126

CAP

- front bearing liner

1шт.

21

113-444

BOLT

- bearing cap (1/4 x 4-1/2" N.C. hex.)

8шт.

22

113-445

BOLT

- brg. cap & oil pump (1/2 x 5-1/8" N.C. hex.

2шт.

23

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear (1/4 x 1-1/16" Hi-Pro)

2шт.

24

A29294

BUSHING

SPACER - thrust, crankshaft

1шт.

25

A29263

GEAR

- crankshaft (24T)

1шт.

26

A29259

SLINGER

- oil, crankshaft gear

1шт.

27

A36609

OIL SEAL

- oil, front

1шт.

28

G11342

X

PULLEY - drive belt

1шт.

29

A35673

NUT

- crankshaft end

1шт.
