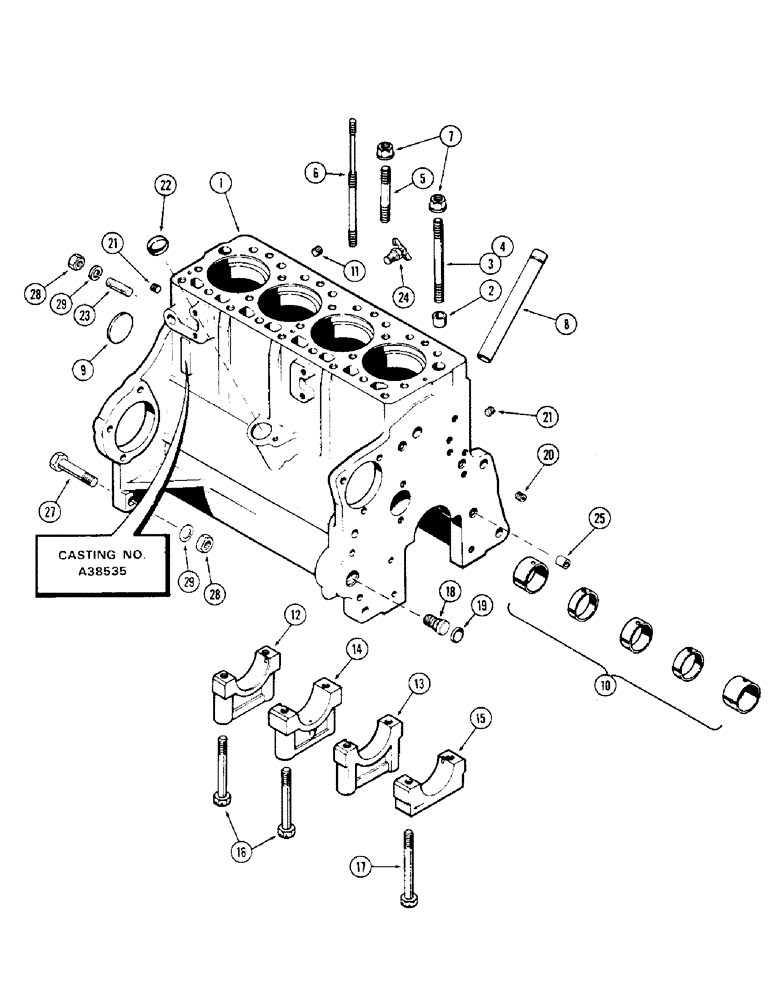

Запчасти Case 310G (029E) - CYLINDER BLOCK ASSEMBLY, (188) DIESEL ENGINE, CASTING NO. A38535 (01) - ENGINE

A42211

SHORT BLOCK ASSY - (Casting no. A38535) (Includes stripped block, crankshaft & bearings, camshaft & gear, pistons & sleeves, connecting rods and oil pump), Includes: Ref. 1 - 25

1шт.

1

A41597

SKELETON ENGINE

BLOCK ASSY - stripped (Casting A38535), Includes: Ref. 2 - 22

1шт.

2

G49608

RING

- dowel, Serial Range: head-block

2шт.

3

A36902

STUD

- head to block (1/2" N.C. x 5-5/8")

11шт.

3

A36905

STUD

- head to block (1/2" N.C. x 6-1/8")

2шт.

4

A38534

PLUG

- tach. drive opening (1-1/16" cup type)

1шт.

5

A36904

STUD

- head to block (1/2" N.C. x 4")

4шт.

6

A36903

STUD

- head & cover

2шт.

7

A37030

FLANGE NUT

- flanged, head stud

19шт.

9

A39241

PLUG,Exp, 2.12" dia

- camshaft hole (2-1/4" expansion type)

1шт.

10

A42746

CAM

BUSHING SET - camshaft

1шт.

11

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - heater hole (3/8" P.T.)

1шт.

12

A38385

CAP

- rear main bearing

1шт.

13

G2128

CAP

- intermediate main bearing

2шт.

14

G2127

CAP

- center main bearing

1шт.

15

G2126

CAP

- front main bearing

1шт.

16

113-444

BOLT

- bearing cap (1/2 x 4-1/2" N.C. hex.)

8шт.

17

113-445

BOLT

- front brg. cap & oil pump (1/2 x 5-1/8" N.C. hex.)

2шт.

18

A153552

ADAPTER

- oil filter

1шт.

19

41-1016

PLUG,Cup, 1"

- adapter opening (1" cup type)

1шт.

20

G49070

PLUG

- drilled, oil gallery front

1шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

22

A38534

PLUG

- cup, tach. drive

1шт.

23

A29363

STUD

- clutch housing

2шт.

24

A23656

COCK, DRAIN

VALVE - drain

1шт.

25

A29442

RING

- dowel, front, Serial Range: cover-block

1шт.

27

A30129

BOLT

- clutch housing (5/8 x 2-3/4" N.F. hex.)

2шт.

28

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
