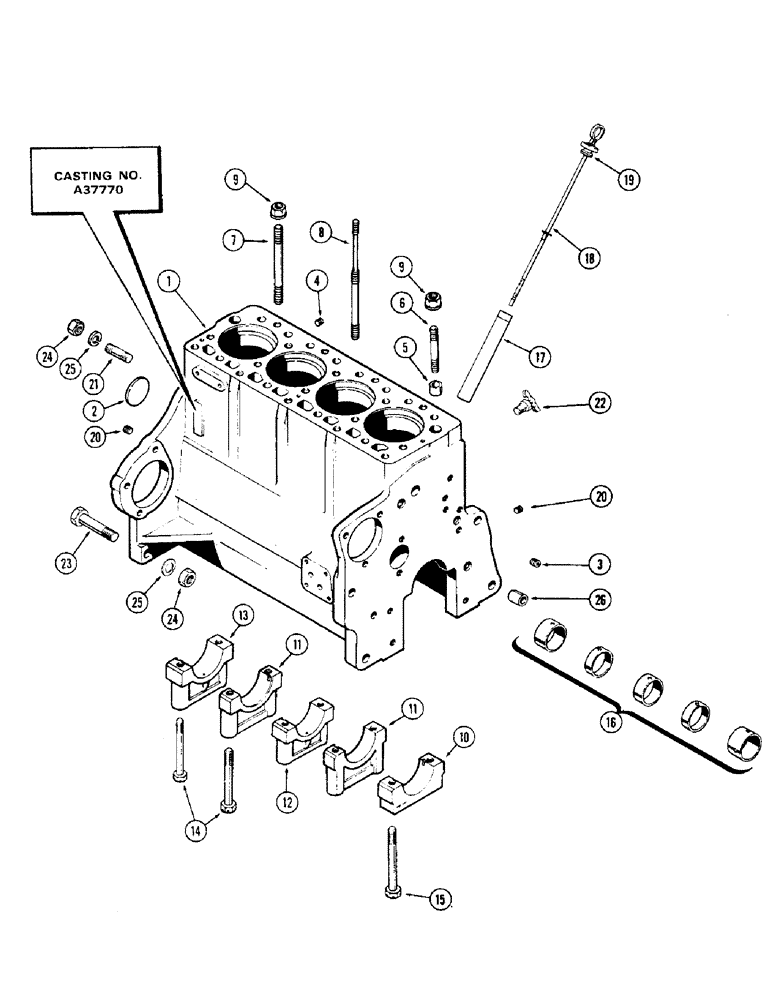

Запчасти Case 310G (029A) - CYLINDER BLOCK ASSEMBLY, (188) DIESEL ENGINE, CASTING NO. A37770 (01) - ENGINE
№
Артикул
Название
Примечание
Количество
NS
NOT SERVICED
SHORT BLOCK ASSY - (Casting No. A37770) (Order A40592 from figure 28) (Includes stripped block, crankshaft & bearings, camshaft & gear, pistons & sleeves, connecting rods and oil pump), Includes: Ref. 1 - 22
1шт.
1
NS
NOT SERVICED
BLOCK ASSY - stripped (Casting No. A37770) (Order A41597 from figure 29E), Includes: Ref. 2 - 19
1шт.
2
A39241
PLUG,Exp, 2.12" dia
- camshaft hole (2-1/8" expansion type)
1шт.
3
G49070
PLUG
- drilled, oil gallery front
1шт.
4
221-1032
DRAIN PLUG,Sq Soc, 3/8"-18 NPTF
PLUG - heater hole (3/8" P.T. socket hd.)
1шт.
5
G49608
RING
- dowel, Serial Range: head-block
2шт.
6
A36904
STUD
- head to block (1/2" N.C. x 4")
2шт.
7
A36902
STUD
- head to block (1/2" N.C. x 5-5/8")
11шт.
7
A36905
STUD
- head to block (1/2" N.C. x 6-1/8")
2шт.
8
A36903
STUD
- head & cover
2шт.
9
A37030
FLANGE NUT
- flanged, head stud
19шт.
10
G2126
CAP
- front main bearing
1шт.
11
G2128
CAP
- intermediate main bearing
1шт.
12
G2127
CAP
- center main bearing
1шт.
13
G2129
CAP
- rear main bearing
1шт.
14
113-444
BOLT
- bearing cap (1/2 x 4-1/2" N.C. hex.)
8шт.
15
113-445
BOLT
- brg. cap & oil pump (1/2 x 5-1/8" N.C. hex.)
2шт.
16
A42746
CAM
BUSHING SET - camshaft
1шт.
17
A37149
TUBE
- dipstick & oil filler
1шт.
18
A37148
DIPSTICK
- oil level, Includes: Ref. 19
1шт.
19
F62075
O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro
"O" RING - seal (3/4 x 1 x 1/8")
2шт.
20
217-433
PLUG,Hex Soc, 1/4" - 18 NPTF
Oil gallery Hex Soc, 1/4"-18 NPTF
2шт.
21
A29363
STUD
- clutch housing (5/8" N.C. - N.F. x 2-1/4")
2шт.
22
A23656
COCK, DRAIN
VALVE - drain (1/4" P.T.)
1шт.
23
A30129
BOLT
- clutch housing (5/8 x 2-3/4" N.F. hex.)
2шт.
24
25-1110
NUT,5/8"-18, G5
- 5/8" N.F. hex.
4шт.
26
A29442
RING
- dowel, front, Serial Range: cover-block
2шт.
Выбрано товаров: 28
