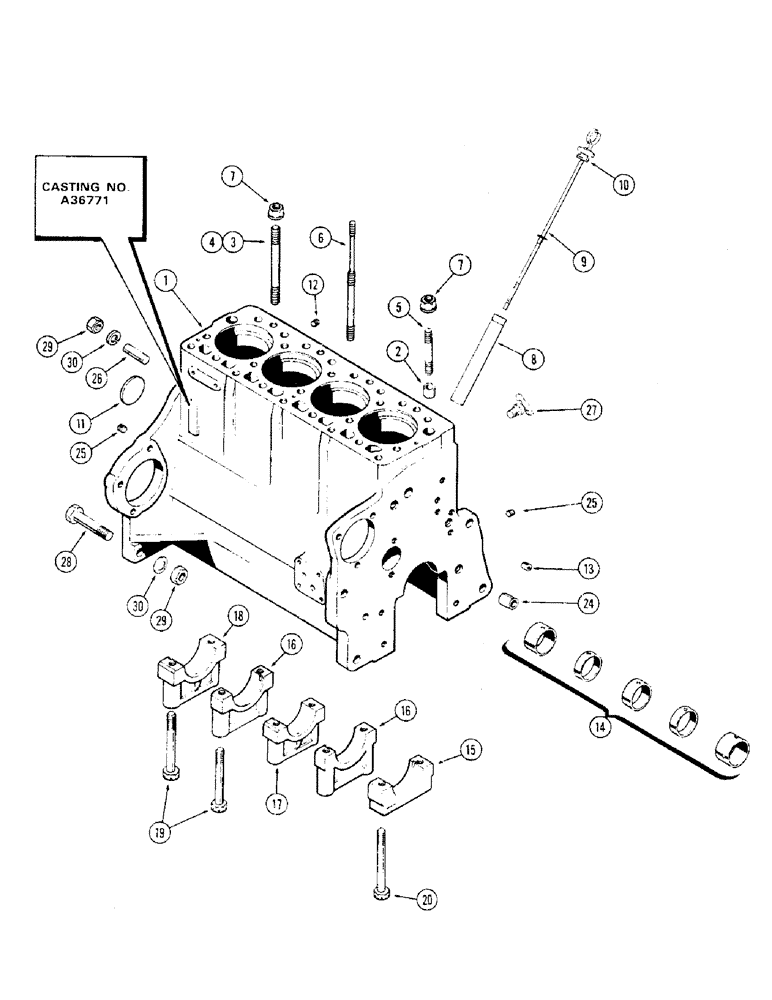

Запчасти Case 310G (028) - CYLINDER BLOCK ASSEMBLY, (188) DIESEL ENGINE, CASTING NO. A36771 (01) - ENGINE

A40592

SHORT BLOCK ASSY - (Casting no. A36771) (Includes stripped block, crankshaft & bearings, camshaft & gear, pistons & sleeves, connecting rods and oil pump), Includes: Ref. 1 - 27

1шт.

1

A40590

BLOCK ASSY - stripped (Casting no. A36771), Includes: Ref. 2 - 20

1шт.

2

G49608

RING

- dowel, Serial Range: head-block

2шт.

3

A36902

STUD

- head to block (1/2" N.C. 5-5/8")

11шт.

4

A36905

STUD

- head to block (1/2" N.C. x 6-1/8")

2шт.

5

A36904

STUD

- head to block (1/2" N.C. x 4")

4шт.

6

A36903

STUD

- head & cover

2шт.

7

A37030

FLANGE NUT

- flanged, head stud

19шт.

8

A37149

TUBE

- oil filler & dipstick

1шт.

9

A37148

DIPSTICK

- oil level, Includes: Ref. 10

1шт.

10

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - (3/4 x 1 x 1/8")

2шт.

11

A39241

PLUG,Exp, 2.12" dia

- camshaft hole (2-1/8" expansion type)

1шт.

12

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - heater opening, 3/8" P.T. socket hd.

1шт.

13

G49070

PLUG

- drilled, oil gallery front

1шт.

14

A42746

CAM

BUSHING SET - camshaft

1шт.

15

G2126

CAP

- front main bearing

1шт.

16

G2128

CAP

- intermediate main bearing

2шт.

17

G2127

CAP

- center main bearing

1шт.

18

G2129

CAP

- rear main bearing

1шт.

19

113-444

BOLT

- bearing cap (1/2 x 4-1/2" N.C. hex.)

8шт.

20

113-445

BOLT

- brg. cap & oil pump (1/2 x 5-1/8" N.C. hex.)

2шт.

24

A29442

RING

- dowel, front, Serial Range: cover-block

2шт.

25

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

26

A29363

STUD

- clutch housing (5/8" N.C. - N.F. x 2-1/4")

2шт.

27

A23656

COCK, DRAIN

VALVE - drain (1/4" P.T.)

1шт.

28

A30129

BOLT

- clutch housing (5/8 x 2-3/4" N.F. hex.)

2шт.

29

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
