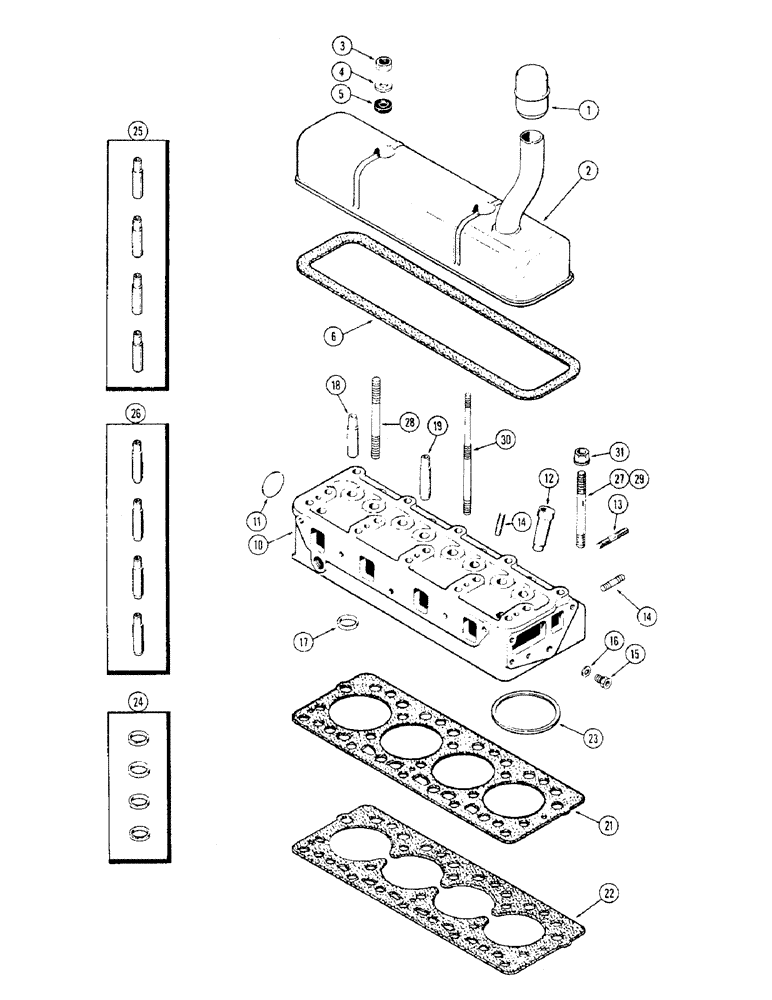

Запчасти Case 310G (026) - CYLINDER HEAD AND COVER, (188) DIESEL ENGINE (01) - ENGINE

1

A36608

CAP

- breather, oil filler

1шт.

2

G11997

COVER - valve & head

1шт.

3

25-106

NUT,3/8"-16, G5

- cover stud, 3/8" N.C. hex.

2шт.

4

G49400

WASHER

- plain (13/32 x 1-5/32 x 1/8")

2шт.

5

G46867

GROMMET

- rubber, cover stud

2шт.

6

G46866

GASKET

-, Serial Range: cover-head

1шт.

10

A36880

HEAD ASSY - cylinder (Casting no. A36876), Includes: Ref. 11 - 19

1шт.

11

A30036

PLUG

- rear (1-3/4" expansion type)

1шт.

12

G11724

LINER

- fuel injector

4шт.

13

A35175

STUD

- manifold clamp (3/8" N.C. x 2-7/16")

6шт.

14

A29431

STUD

- manifold & injector (3/8" N.C. x 1-3/4")

12шт.

15

G49083

BOLT

- drilled, gear cover

1шт.

16

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

17

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 24)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order ref. 25)

1шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (Order ref. 26)

4шт.

21

A36877

GASKET

- head block (Use with narrow flange sleeves) (Can use A38640)

1шт.

See figure 32 for sleeve flange data.

1шт.

22

A38640

- head to block (Must use with wide flange sleeves)

1шт.

See figure 32 for sleeve flange data.

1шт.

23

A36900

RING, PISTON

RING - fire (4-3/16" I.D. x 4-7/16" O.D. x 1/16" thick) (Std. to be used with narrow flange sleeves)

4шт.

See figure 32 for sleeve flange data.

1шт.

23

A38639

RING

- fire (4-5/16" I.D. x 4-17/32" O.D. x 1/16" thick) (Std. to be used with wide flange sleeves)

4шт.

See figure 32 for sleeve flange data.

1шт.

23

A38651

RING

- fire (4-5/16" I.D. x 4-17/32" O.D. x 5/64" thick) (Oversize to be used with wide flange sleeves)

4шт.

See figure 32 for sleeve flange data.

1шт.

23

A37031

RING

- fire (4-3/16" I.D. x 4-7/16" O.D. x 5/64" thick) (Oversize to be used with narrow flange sleeves)

4шт.

See figure 32 for sleeve flange data.

1шт.

24

G11986

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

25

G11946

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

26

G11945

GUIDE

S - intake valve stem (Set of 4)

1шт.

27

A36902

STUD

- head to block (1/2" N.C. x 5-5/8")

11шт.

28

A36905

STUD

- head to block (1/2" N.C. x 6-1/2")

2шт.

29

A36904

STUD

- head to block (1/2" N.C. x 4")

4шт.

30

A36903

STUD

- head & cover (1/2" N.C. & 3/8" N.C. x 9-7/16")

2шт.

31

A37030

FLANGE NUT

- flanged, head stud

19шт.
