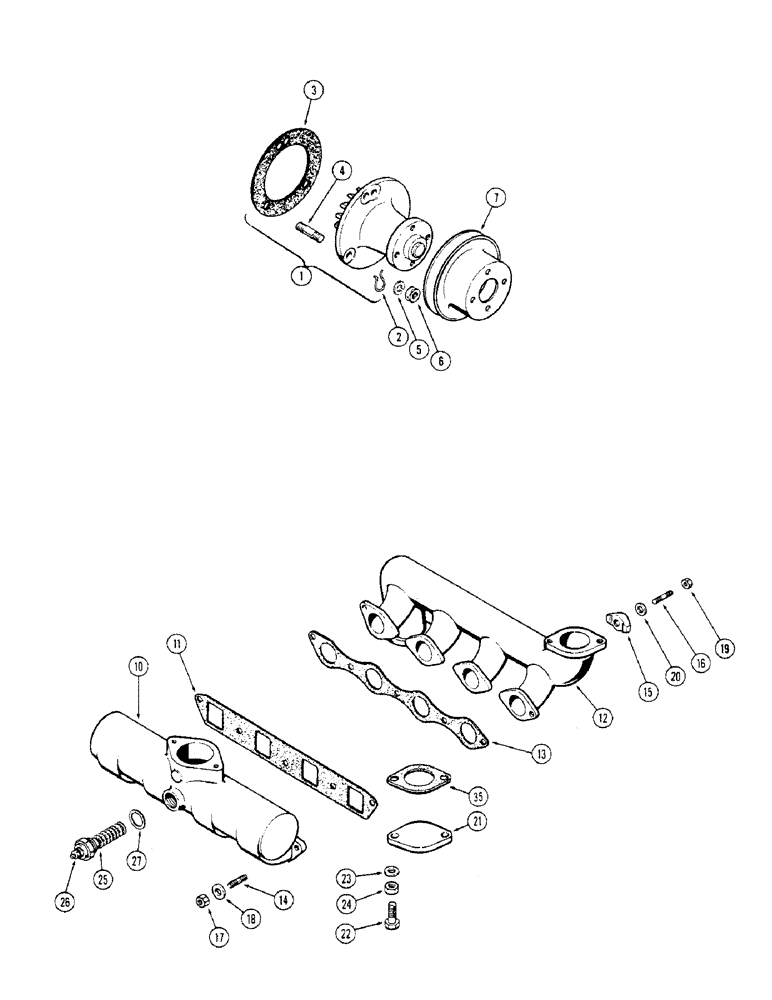

Запчасти Case 310G (024) - WATER PUMP, (188) DIESEL ENGINE (01) - ENGINE

1

A37758

PUMP

KIT - water pump & gasket, Includes: Ref. 2 and 3

1шт.

1

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

1

A146584R

REMAN-WATER PUMP

Reman For New P/N A37758, Kit, Water Pump & Gasket

1шт.

1

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

2

A30067

RING

- retainer

1шт.

3

A38083

GASKET

-, Serial Range: pump-cover

1шт.

4

A29433

STUD

- pump to cover (3/8 x 1" N.C.)

3шт.

5

92-6

LOCK WASHER,3/8"

3шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

7

G11339

PULLEY

- drive belt

1шт.

10

A35782

MANIFOLD

- intake

1шт.

11

G46871

GASKET

- intake, Serial Range: manifold-head

1шт.

12

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust

1шт.

13

G46872

MANIFOLD GASKET

- exhaust, Serial Range: manifold-head

1шт.

14

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4")

4шт.

15

A35028

CLAMP

- muffler, manifold

6шт.

16

A35175

STUD

- manifold clamp (3/8" N.C. x 2-7/16")

6шт.

17

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf), manifold

5шт.

18

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 5/64", manifold

5шт.

19

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., manifold

5шт.

20

92-6

LOCK WASHER,3/8"

manifold 3/8"

5шт.

21

A38188

PLATE

COVER - exhaust opening, manifold

1шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex., manifold

2шт.

23

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 5/64", manifold

2шт.

24

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf), manifold

2шт.

25

A37775

HEATER

ASSY - intake manifold

1шт.

26

129-503

NUT,1/4"-20, Brass

Manifold 1/4"-20, Brass

1шт.

27

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.
