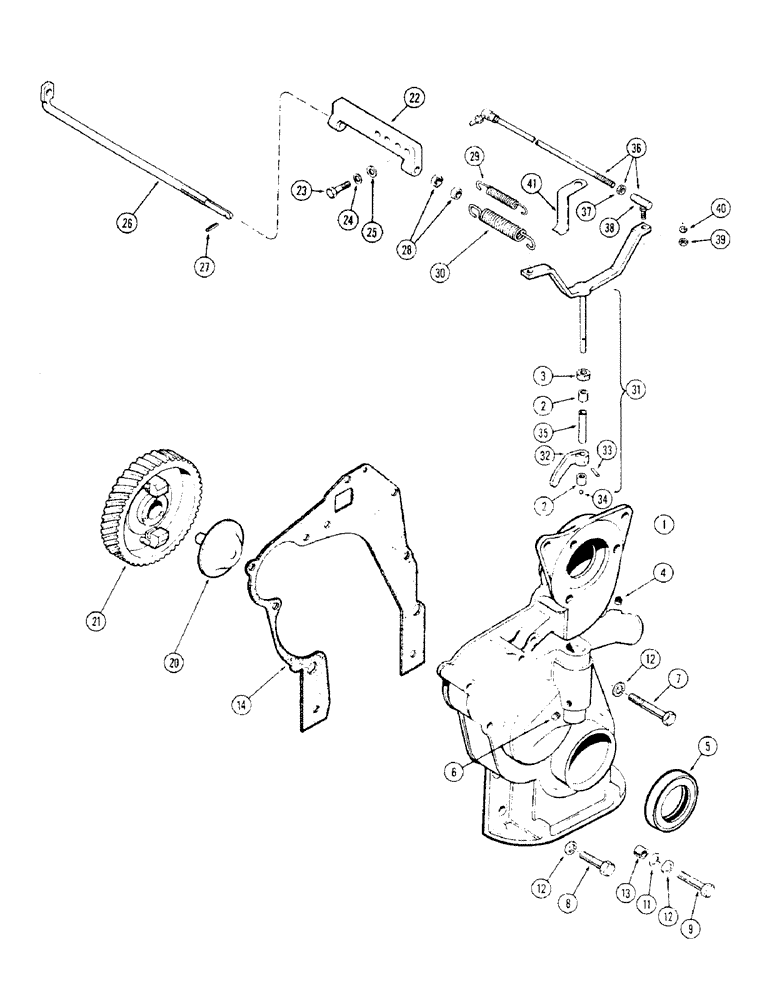

Запчасти Case 310G (020) - GOVERNOR AND TIMING GEAR COVER, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

A36979

COVER

ASSY - timing gear, Includes: Ref. 2 - 6

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - governor shaft

2шт.

3

A30011

SEAL

- dust, governor shaft

1шт.

4

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

5

A36609

OIL SEAL

- oil, crankshaft front

1шт.

6

A30016

FITTING

PLUG - pipe, 1/8" slotted

1шт.

7

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

11

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 5/64"

2шт.

12

92-6

LOCK WASHER,3/8"

7шт.

13

A29442

RING

- dowel, Serial Range: cover-block

2шт.

14

A38226

GASKET

-, Serial Range: cover-block

1шт.

20

A29957

SHAFT

ASSY - governor

1шт.

21

G37066

GEAR

- camshaft (Includes governor weights)

1шт.

22

G2133

GUIDE

- governor control rod

1шт.

23

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

25

195-521

WASHER,5/16", SAE

- plain, 11/32 x 11/16 x 5/64"

2шт.

26

G11369

ROD - governor control

1шт.

27

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

28

131-412

NUT - lock, 7/16" N.F. hex.

2шт.

29

A37005

SPRING

- inner, governor speed (Black)

1шт.

30

G48511

SPRING

- outer, governor speed (Black)

1шт.

31

A30125

SHAFT

& LEVER ASSY - governor control, Includes: Ref. 32 and 33

1шт.

32

NSS

NOT SOLD SEPARAT

ARM - (Order A30125)

1шт.

33

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

34

211-5

BALL,3/16" Dia

- thrust, governor shaft (3/16" steel)

1шт.

35

A30012

SPACER

- thrust, governor shaft

1шт.

36

A38301

ROD

- governor arm to carburetor, Includes: Ref. 37 and 38

1шт.

37

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

38

A10329

BALL JOINT,1/4" - 28 x 1"

1шт.

39

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

41

A29615

DAMPER - governor spring

1шт.
