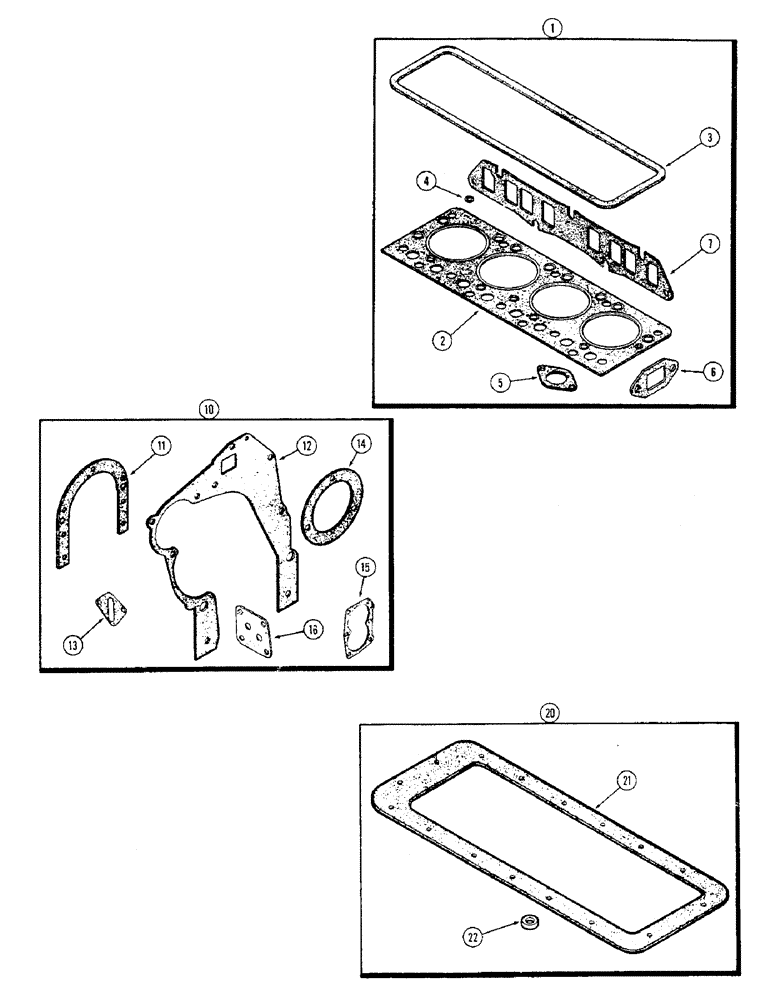

Запчасти Case 310G (018) - ENGINE GASKET KITS, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

G11917

KIT

VALVE GRIND GASKET KIT, Includes: Ref. 2 - 7

1шт.

For complete engine overhaul order ref. 1, 20 and 30

1шт.

2

G10672

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

A30009

GASKET

- valve cover

1шт.

4

G46851

SEAL

- oil, intake valve stem

4шт.

5

A29956

GASKET

- carburetor

1шт.

6

A30003

GASKET

- water outlet elbow

1шт.

7

A30030

GASKET

-, Serial Range: manifold-head

1шт.

10

A41465

GASKET

CYLINDER BLOCK GASKET KIT, Includes: Ref. 11 - 16

1шт.

For complete engine overhaul order ref. 1, 20 and 30

1шт.

11

A38196

GASKET

- rear oil seal retainer

1шт.

12

A38226

GASKET

- timing gear cover

1шт.

13

G46902

GASKET

- fuel pump

1шт.

14

A38083

GASKET

- water pump

1шт.

15

G46852

GASKET

- oil pump cover

1шт.

16

G46854

GASKET

- oil filter bracket

1шт.

20

D128322

RELAY

OIL PAN GASKET KIT, Includes: Ref. 21 and 22

1шт.

For complete engine overhaul order ref. 1, 20 and 30

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40710)

1шт.

22

A58608

GASKET

- drain plug (3/4 x 1 x 1/16" nylon)

1шт.
