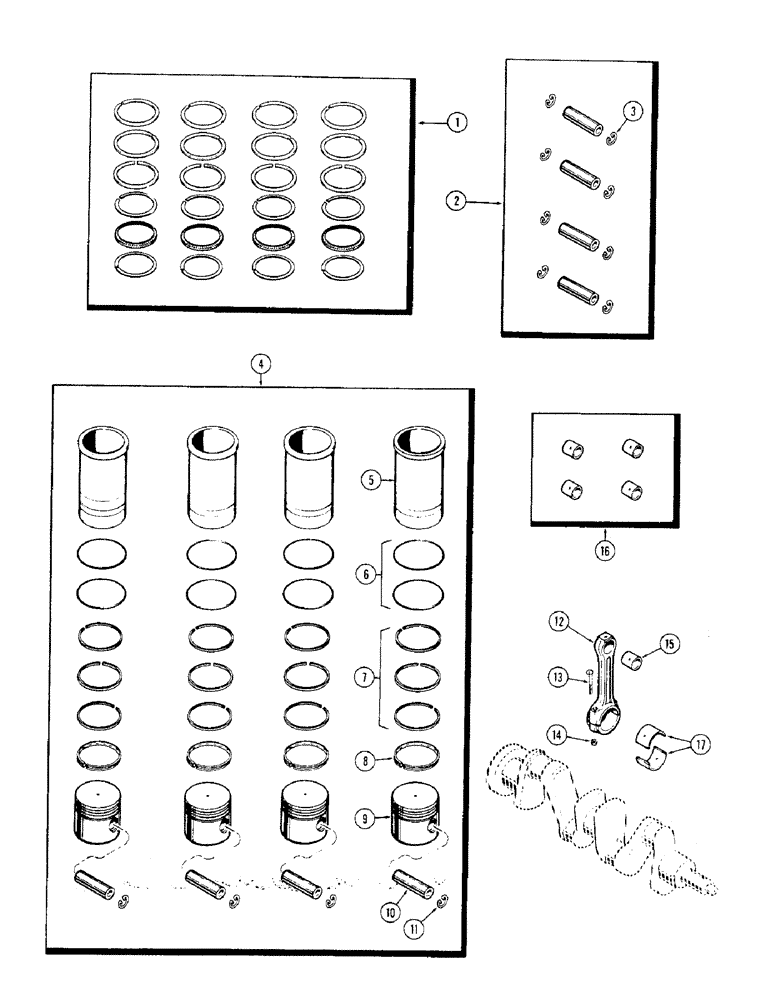

Запчасти Case 310G (014) - PISTON ASSEMBLY AND CONNECTING RODS, (148B) SPARK IGNITION (01) - ENGINE

1

G11116

PISTON RING SET

RINGS - piston (2 in 1 chrome set)

1шт.

2

G11925

PISTON PIN

PIN KIT - piston (Set of 4 w/rings), Includes: Ref. 3

1шт.

3

A30023

RETAINER

RING - retaining

8шт.

4

G11007

SLEEVE ASSY

PISTONS & SLEEVES - (Matched set of 4), Includes: Ref. 5 - 11

1шт.

5

G1061

SLEEVE

- cylinder

4шт.

6

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - sleeve packing (3-1/8 x 3-11/32 x 7/64")

8шт.

7

G1062

OIL SEAL

RING - compression, piston (See ref. 1)

12шт.

8

G1063

OIL SEAL

RING - oil control, piston (See ref. 1)

4шт.

9

G1060

PISTON

4шт.

10

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 2)

4шт.

11

A30023

RETAINER

RING - retaining (See ref. 2)

8шт.

12

G11592

EXCHANGE CONROD

ROD ASSY - connection, Includes: Ref. 13 - 15

4шт.

13

G11701

BOLT

- cap

2шт.

14

G49060

NUT

- cap bolt

2шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - (Order ref. 16)

1шт.

16

G11955

KIT

BUSHING KIT - connecting rod (Set of 4)

1шт.

17

A36500

SEAL

LINERS - bearing, conn. rod (Set of 2 standard)

4шт.

17

A36501

BEARING LINER

LINERS - bearing, conn. rod (Set of 2 .002" undersize)

4шт.

17

A36502

LINING

LINERS - bearing, conn. rod (set of 2 .010" undersize)

4шт.

17

A36503

BEARING LINER

LINERS - bearing, conn. rod (Set of 2 .020" undersize)

4шт.

17

A36504

KIT

LINERS - bearing, conn. rod (Set of 2 .030" undersize)

4шт.
