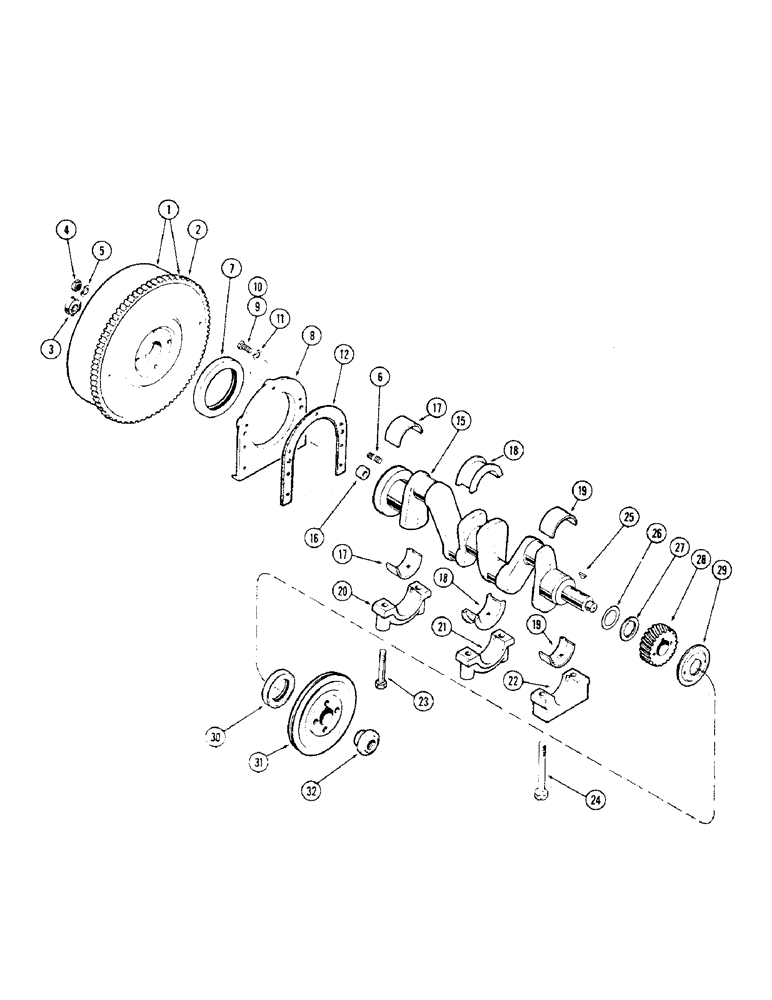

Запчасти Case 310G (012) - CRANKSHAFT AND FLYWHEEL, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

G37091

FLYWHEEL ASSY, Includes: Ref. 2

1шт.

2

G11710

GEAR

- ring (135T)

1шт.

3

A30128

BEARING ASSY

BEARING - pilot

1шт.

4

25-117

NUT,7/16"-20, G5

- flywheel to crankshaft, 7/16" N.F.

4шт.

5

92-7

LOCK WASHER,7/16"

4шт.

6

A29434

STUD

- flywheel (7/16" N.F. x 1-3/4")

4шт.

7

A39027

OIL SEAL

- oil, crankshaft rear

1шт.

8

A38390

RETAINER

- rear oil seal (Replaces G2017)

1шт.

9

113-25

X

BOLT - 1/4 x 3/4" N.C. hex. (Gr. 8)

4шт.

10

113-26

BOLT

- 1/4 x 1" N.C. hex. (Gr. 8)

3шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

12

A38196

GASKET

- retainer, rear oil seal

1шт.

15

A37210

CRANKSHAFT

- (W/rear splines) (Can use G11183), Includes: Ref. 16

1шт.

15

G11183

CRANKSHAFT

- (W/bushing) (Can use A37210), Includes: Ref. 16

1шт.

16

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

1шт.

17

G37051

KIT

LINERS - rear bearing (Set of 2 Standard)

1шт.

17

G37052

KIT

LINERS - rear bearing (Set of 2 .002" undersize)

1шт.

17

A42322

FIP KIT

LINERS - rear bearing (Set of 2 .010" undersize)

1шт.

17

G37053

KIT

LINERS - rear bearing (Set of 2 .020" undersize)

1шт.

17

G37054

KIT

LINERS - rear bearing (Set of 2 .040" undersize)

1шт.

18

G37047

KIT

LINERS - center bearing (Set of 2 Standard)

1шт.

18

G37048

KIT

LINERS - center bearing (Set of 2 .002" undersize)

1шт.

18

A42321

FIP KIT

LINERS - center bearing (Set of 2 .010" undersize)

1шт.

18

G37049

KIT

LINERS - center bearing (Set of 2 .020" undersize)

1шт.

18

G37050

KIT

LINERS - center bearing (Set of 2 .040" undersize)

1шт.

19

G37043

KIT

LINERS - front bearing (Set of 2 standard)

1шт.

19

G37044

KIT

LINERS - front bearing (Set of 2 .002" undersize)

1шт.

19

A42320

BEARING LINER

LINERS - front bearing (Set of 2 .010" undersize)

1шт.

19

G37045

KIT

LINERS - front bearing (Set of 2 .020" undersize)

1шт.

19

G37046

KIT

LINERS - front bearing (Set of 2 .040" undersize)

1шт.

20

G2037

CAP

- rear bearing liner

1шт.

21

G2036

CAP

- center bearing liner

1шт.

22

G2035

CAP

- front bearing liner

1шт.

23

G49037

BOLT

- bearing cap (1/2 x 3")

4шт.

24

G49059

BOLT

- front brg. cap & oil pump (1/2 x 4-3/4")

2шт.

25

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear (1/4 x 1-1/16" Hi-Pro)

2шт.

26

A29293

SHIM,.010" Thk

Thrust .010" Thk

1шт.

27

A29294

BUSHING

SPACER - thrust, crankshaft gear

1шт.

28

A29263

GEAR

- crankshaft (24T)

1шт.

29

A29259

SLINGER

- oil, crankshaft gear

1шт.

30

A36609

OIL SEAL

- oil, crankshaft front

1шт.

31

G11342

X

PULLEY - drive belt, fan & generator

1шт.

32

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.
